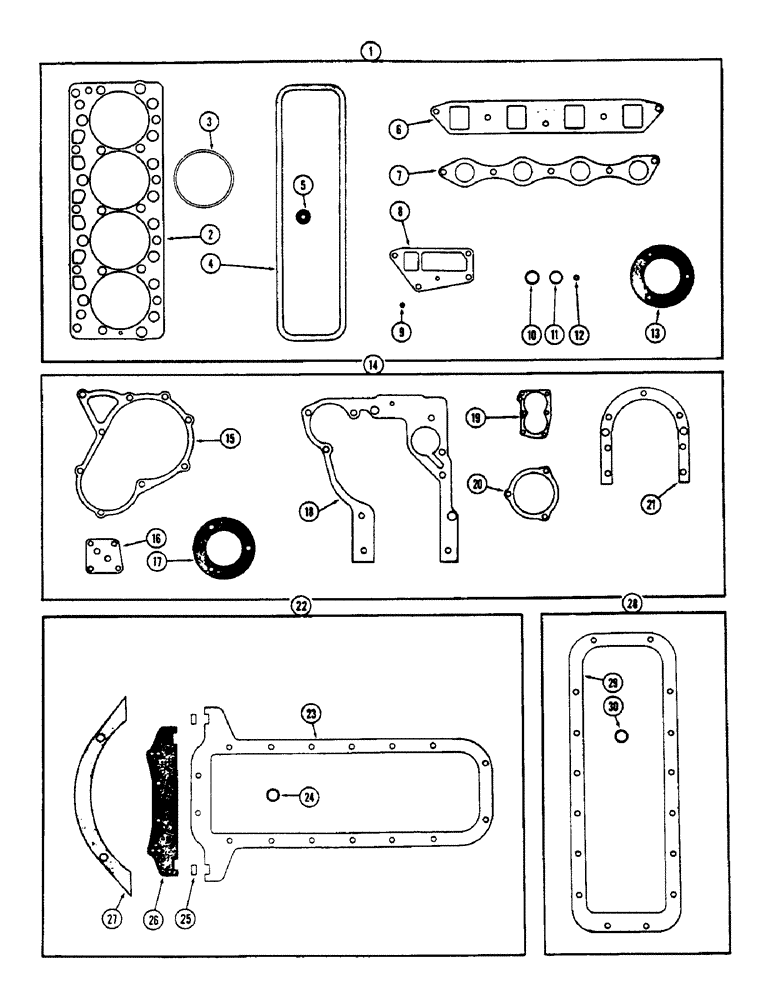

Запчасти Case 530CK (038) - ENGINE GASKET KITS, (188) DIESEL ENGINE (10) - ENGINE

1

A40707

GASKET KIT

VALVE GRIND KIT - (Order A41425), Includes: Ref. 2 - 13

1шт.

2

A36877

GASKET

-, Serial Range: head-block

1шт.

3

A36900

RING, PISTON

RING - fire (Orange coded)

4шт.

4

G46866

GASKET

- valve cover

1шт.

5

G46867

GROMMET

- rubber, valve cover

2шт.

6

G46871

GASKET

- intake manifold

1шт.

7

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

8

G46858

GASKET

- pump drive cover to head (Order A38084)

1шт.

9

G46851

SEAL

- rubber, valve stem

8шт.

10

G49068

GASKET

- seat, fuel injector

4шт.

11

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injector, Serial Range: tube-pump

8шт.

12

222-101

SLEEVE,3/16" Tube

- fuel line, 3/16" Tube

4шт.

12

222-103

SLEEVE,5/16" Tube

Fuel line 5/16" Tube

4шт.

13

G46875

GASKET

- water pump

1шт.

14

G11950

GASKET

CYLINDER BLOCK KIT, Includes: Ref. 15 - 21

1шт.

15

G46859

GASKET

- pump drive cover

1шт.

16

G46854

GASKET

- oil filter bracket

1шт.

17

G46875

GASKET

- water pump

1шт.

18

G46857

GASKET

- pump drive cover

1шт.

19

G46852

GASKET

- oil pump cover

1шт.

20

A30042

GASKET

- power steering pump

1шт.

21

G46802

GASKET

- rear oil seal retainer (Order A38196)

1шт.

22

A40713

KIT

OIL PAN GASKET KIT - (w/Case-O-Matic), Includes: Ref. 23 - 27

1шт.

23

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

24

A58608

GASKET

- drain plug

1шт.

25

A11604

OIL PAN GASKET SET

- rear, oil, Serial Range: pan-engine

2шт.

26

A36653

GASKET

- pivot bracket

1шт.

27

G46913

GASKET

- block to torque tube

1шт.

28

A40712

KIT

OIL PAN GASKET KIT - (Std. clutch), Includes: Ref. 29 and 30

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

30

A58608

GASKET

- drain plug

1шт.
