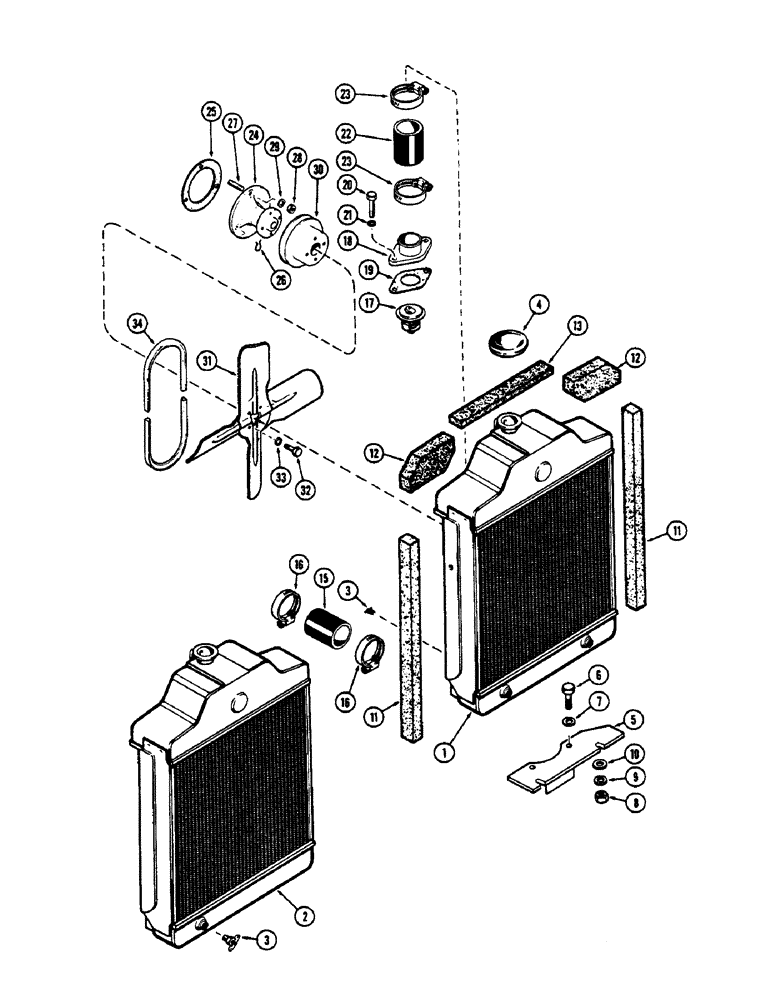

Запчасти Case 530CK (036) - ENGINE COOLING SYSTEM, (159) DIESEL ENGINE (10) - ENGINE

1

A35583

RADIATOR

- (w/Case-O-Matic)

1шт.

G45484

RESERVOIR

TANK - includes cooler tubes

1шт.

2

A35604

RADIATOR

- (w/std. clutch)

1шт.

3

217-103

COCK, DRAIN

DRAIN COCK - radiator

1шт.

4

G45179

CAP

- radiator

1шт.

5

A35574

BRACKET

- radiator mounting

1шт.

6

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

std. 1/2"

2шт.

8

25-106

NUT,3/8"-16, G5

- radiator stud, 3/8" N.C. hex.

2шт.

9

92-6

LOCK WASHER,3/8"

std. 3/8"

2шт.

10

95-6

WASHER,3/8"

- plain 3/8"

2шт.

11

G46281

BAFFLE - radiator side

2шт.

12

G46278

BAFFLE

- radiator top

2шт.

13

G46280

BAFFLE

- radiator top center

1шт.

15

G46269

RADIATOR HOSE,1.75" ID x 2.50", SAE 20R2

Lower 1.75" ID x 2.50", SAE 20R2

1шт.

16

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

17

A57641

THERMOSTAT

- (180 degrees) (Replaces G45788)

1шт.

18

G2144

FITTING

CONNECTION - water outlet

1шт.

19

G46907

GASKET

- outlet

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

std. 3/8"

2шт.

22

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper 2.00" ID x 4.88", SAE 20R2

1шт.

23

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

24

A39074

PUMP

WATER PUMP - complete (Replaces G11939 and A37758), Includes: Ref. 25 and 26

1шт.

25

G46875

GASKET

-, Serial Range: pump-cover

1шт.

26

A30067

RING

- retainer

1шт.

27

A29433

STUD

- pump mounting (3/8 x 1")

3шт.

28

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

29

92-6

LOCK WASHER,3/8"

std. 3/8"

3шт.

30

G11339

PULLEY

- drive

1шт.

31

G45243

FAN

1шт.

32

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

33

92-5

LOCK WASHER,5/16"

std. 5/16"

4шт.

34

G46238

BELT,0.55" W x 17.78" L

Fan Drive 0.55" W x 17.78" L

1шт.
