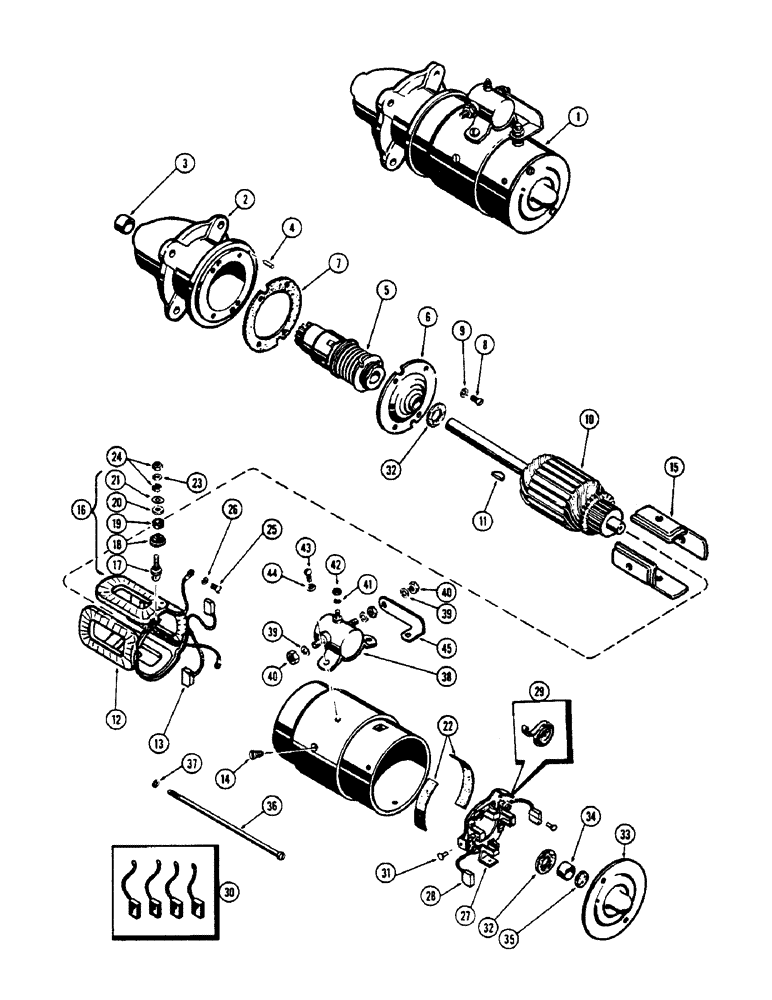

Запчасти Case 530CK (034) - STARTING MOTOR PARTS, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

A36581

STARTER ASSY. - (Auto-Lite MDU 7102A), Includes: Ref. 2 - 42

1шт.

P/N A36581 can be replaced by P/N 104223A1R, the pilots, distance to the flywheel ring gear, gears and mounting dimensions are the same, the center line of the mount and motor are the same, both are 12 volt. DO NOT USE 104198A2R or A39839, as these two parts have a .050" offset between the centerline of the mount and motor, the housing will fail in this application.

1шт.

2

A25779

HOUSING ASSY. - drive end, Includes: Ref. 3 and 4

1шт.

3

A25611

BEARING

- armature shaft

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - housing locating

1шт.

5

A40272

DRIVE

ASSY. - bendix

1шт.

5

87421537

REMAN-STARTER DRIVE

Remanufactured Stater

1шт.

5

87421538

CORE-STARTER

Return Part Number, Starter

1шт.

6

G45478

PLATE

BEARING ASSY. - intermediate

1шт.

7

G46910

GASKET

- intermediate bearing

1шт.

8

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- inter. brg. (#10-32 x 7/16" rd. hd.)

4шт.

9

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

10

A25607

ARMATURE

1шт.

11

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

12

A25604

PACKAGE

COIL ASSY. - field, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

BRUSH - (Order A25603) (See item 30)

2шт.

14

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

4шт.

15

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

16

A40278

KIT

TERMINAL KIT - field, Includes: Ref. 17 - 22

1шт.

17

NSS

NOT SOLD SEPARAT

STUD - fiedl terminal

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - insulating, inner

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - insulating (In housing)

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - insulating, outer

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - term. stud (Metal)

1шт.

22

NSS

NOT SOLD SEPARAT

INSULATION - field coil

2шт.

23

92-5

LOCK WASHER,5/16"

std. 5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

2шт.

25

173-74

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- term. stud (#8-32 x 5/16" rd. hd.)

1шт.

26

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

27

A25612

PLATE

ASSY. - brush carrier, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

BRUSH - (Order A25603) (See item 30)

2шт.

29

A40275

SPRING

SET - brush (Set of 4)

1шт.

30

A25603

BRUSH SET

- (Set of 4)

1шт.

31

NSS

NOT SOLD SEPARAT

RIVET - brush plate

3шт.

A40277

KIT

THRUST WASHER KIT - (Not illust.) (Use thrust washers as required), Includes: Ref. 32

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - inter. brg. & comm. emd (1/32" thick)

4шт.

32

NSS

NOT SOLD SEPARAT

WASHER - comm. end (3/64" thick)

2шт.

32

NSS

NOT SOLD SEPARAT

WASHER - comm. end (5/64" thick)

2шт.

33

A40274

HEAD

ASSY. - commutator end, Includes: Ref. 34 and 35

1шт.

34

NSS

NOT SOLD SEPARAT

BUSHING - armature shaft

1шт.

35

NSS

NOT SOLD SEPARAT

FELT - oiler

1шт.

36

NSS

NOT SOLD SEPARAT

BOLT - thru

2шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

38

A40795

SOLENOID

ASSY. - (Replaces A20145), Includes: Ref. 39 - 42

1шт.

39

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

40

129-122

NUT,5/16"-24, G5

3шт.

41

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

42

129-37

NUT,#10-32

1шт.

43

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

- solenoid (#10-32 x 1/4" rd. hd.)

2шт.

44

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

45

G46297

CONNECTOR, ELEC

CONNECTOR -, Serial Range: solenoid-field

1шт.
