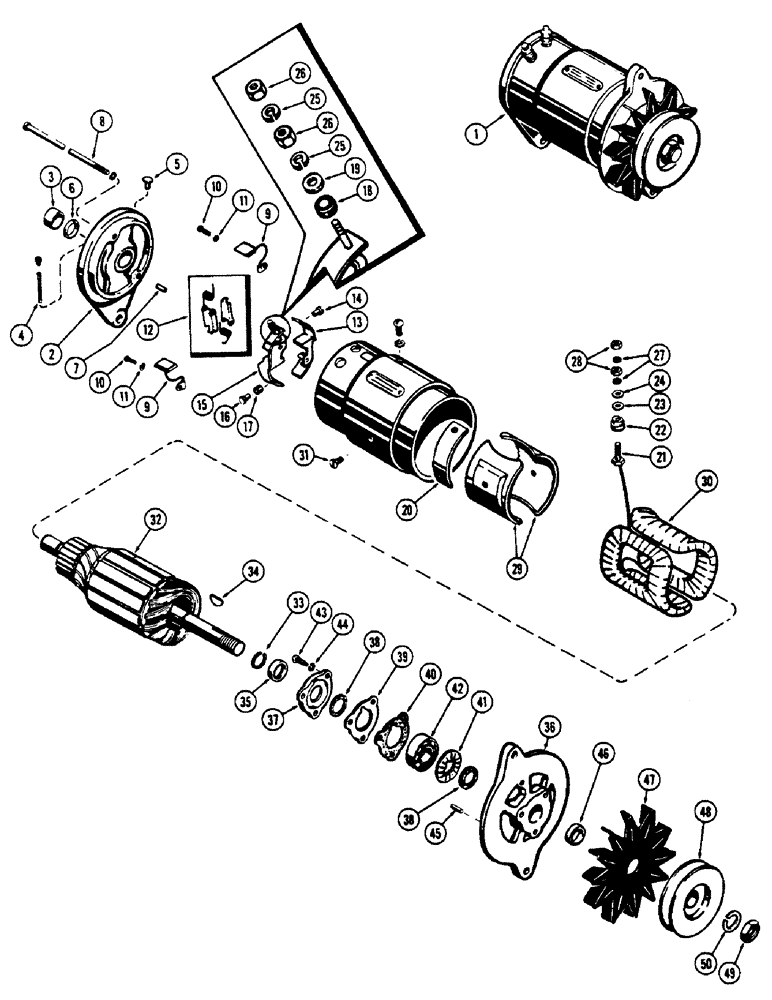

Запчасти Case 530CK (032) - GENERATOR PARTS, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

A36195

GENERATOR - (Prestolite #GJT 7403A) (Order A41452), Includes: Ref. 2 - 45

1шт.

1

G44879

GENERATOR - (Prestolite #GJT-7104A), Includes: Ref. 2 - 45

1шт.

2

A25856

HEAD ASSY. - commutator end, Includes: Ref. 3 - 7

1шт.

3

A25623

BUSHING

- armature shaft

1шт.

4

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

5

A25844

OILER

1шт.

6

A42220

RETAINER - oil

1шт.

7

NSS

NOT SOLD SEPARAT

DOWEL - comm. head locating

1шт.

8

A40580

BOLT - thru

2шт.

9

A25873

BRUSH ASSY.

BRUSH SET

1шт.

10

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- brush lead (#8-32 x 1/4" rd. hd.)

2шт.

11

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

12

A40276

SPRING

ARM & SPRING KIT - brush

1шт.

A40279

STUD

TERMINAL & HOLDER KIT - (Not illust.), Includes: Ref. 13 - 24

1шт.

13

NSS

NOT SOLD SEPARAT

HOLDER - brush, ground

1шт.

14

NSS

NOT SOLD SEPARAT

RIVET - ground brush holder

2шт.

15

NSS

NOT SOLD SEPARAT

HOLDER - brush, insulated

1шт.

16

NSS

NOT SOLD SEPARAT

RIVET - insulated brush holder

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - insulated holder rivet

1шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - armature term., insulation

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER - arm. term., plain (Metal)

1шт.

20

NSS

NOT SOLD SEPARAT

INSULATION - brush holder

1шт.

21

NSS

NOT SOLD SEPARAT

STUD - field terminal

1шт.

22

NSS

NOT SOLD SEPARAT

BUSHING - field term. insulation

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - field term., insulation

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - field term., plain (Metal)

1шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Armature terminal 1/4"

2шт.

26

129-121

NUT,1/4"-28, G5

Armature terminal 1/4"-28, G5

2шт.

27

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Field terminal #10

2шт.

28

129-37

NUT,#10-32

Field terminal #10-32

2шт.

29

NSS

NOT SOLD SEPARAT

SHOE - pole

2шт.

30

A40273

COIL ASSY. - field (Incl. item 21) For A36195

1шт.

30

A25628

COIL ASSY. - field (Incl. item 21) For G44879 (Order A40150), Includes: Ref. 31

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

2шт.

32

A25886

ARMATURE

ASSY., Includes: Ref. 33

1шт.

33

NSS

NOT SOLD SEPARAT

RING - snap, spacer stop

1шт.

34

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

1шт.

35

NSS

NOT SOLD SEPARAT

SPACER - retainer

1шт.

36

A25616

HEAD ASSY. - drive end, Includes: Ref. 37 - 45

1шт.

37

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

38

A25617

WASHER - drive end (Felt)

2шт.

39

NSS

NOT SOLD SEPARAT

PLATE - bearing retainer

1шт.

40

A25634

GASKET -, Serial Range: plate-head

1шт.

41

A40579

RETAINER - bearing, outer

1шт.

42

A25618

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, drive end

1шт.

43

173-227

SCREW,Sl Rnd Hd, #10 - 24 x 1/2", SST

- brg. ret. (#10-32 x 1/2" rd. hd.)

3шт.

44

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

45

NSS

NOT SOLD SEPARAT

PIN - head locating

1шт.

46

NSS

NOT SOLD SEPARAT

SPACER - fan & pulley

1шт.

47

14503

FAN - ventilating

1шт.

48

G4521

PULLEY

- generator drive

1шт.

49

A25619

NUT - pulley retaining

1шт.

50

92-11

LOCKWASHER - pulley nut

1шт.
