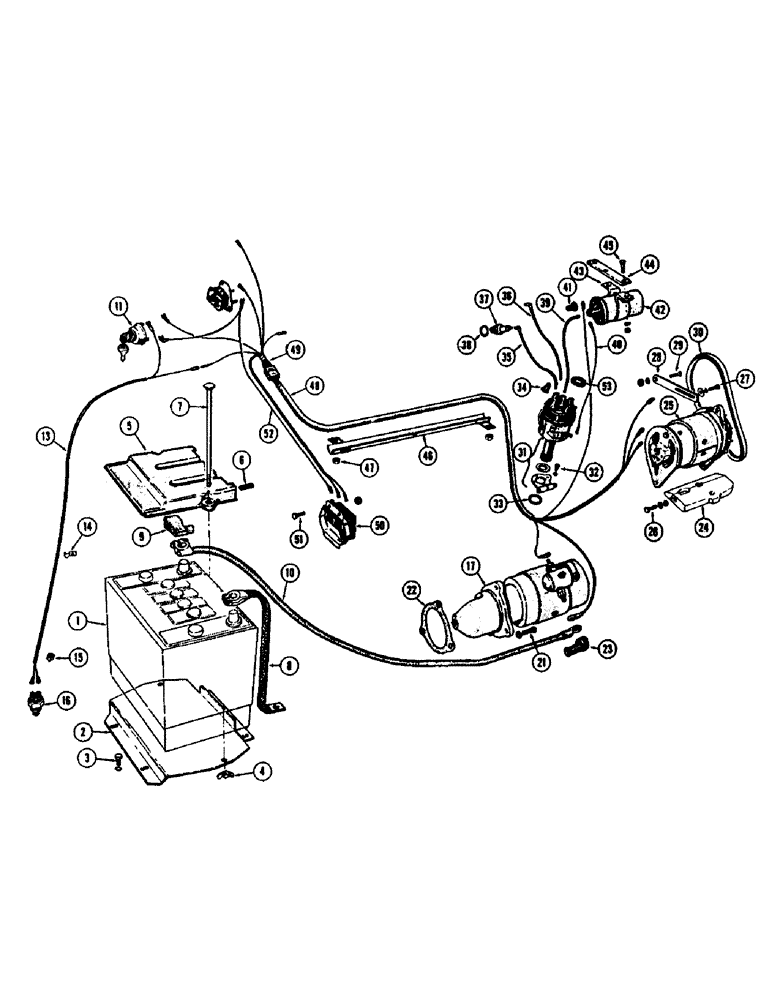

Запчасти Case 530CK (028) - ELECTRICAL SYSTEM, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

F22631

DRY BATTERY

- 12 volt (Dry-charge)

1шт.

2

G30267

BASE

- battery

1шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex. hd.

4шт.

4

G49020

NUT

- wing, cover bolt (5/16" N.C.)

2шт.

5

G30268

COVER

- battery, Includes: Ref. 6

1шт.

6

G46164

MOULDING - rubber

2шт.

7

111-213

CARRIAGE BOLT,Short NK, 5/16"-18 x 9", G2

BOLT - 5/16" x 9" rd. hd. sq. nk.

2шт.

8

A29987

STRAP

- ground, Serial Range: -8233766

1шт.

8

A36368

STRAP

- ground, Start Serial: 8233766

1шт.

9

G46879

COVER

- battery terminal

1шт.

10

G44049

CABLE

- batt. to solenoid, Serial Range: -8233766

1шт.

10

A27987

CABLE

- bat. to solenoid, Start Serial: 8233766

1шт.

11

A24511

SWITCH

- starting w/key (Gas) (See Figure 66)

1шт.

13

G44066

CABLE

- safety switch

1шт.

14

A27211

CLIP - cable to fuel tank

1шт.

15

G46047

CLIP - cable to battery base

1шт.

16

A20990

SWITCH

- safety, neutral starting (See Figure 96)

1шт.

17

A36581

STARTING MOTOR (Prestolite - MDU-7102A) For repairs see Figure 34

1шт.

21

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" N.C. hex. hd.

3шт.

22

G46873

GASKET

- (w/torque converter only)

1шт.

23

A21753

CAP

NIPPLE - terminal

1шт.

24

A38746

BRACKET

- generator mounting

1шт.

25

G44879

GENERATOR (Auto-Lite GJT-7104A), Serial Range: -8233766

1шт.

25

A36195

GENERATOR (Prestolite GJT-7403A) (Order A41452), Start Serial: 8233766

1шт.

26

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

27

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex. hd.

1шт.

28

G11344

STRAP - adjusting, generator

1шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

30

G46238

BELT,0.55" W x 17.78" L

Generator Drive 0.55" W x 17.78" L

1шт.

31

A30358

DISTRIBUTOR

(Prestolite or Auto-Lite IAD-6003-2F) For repairs, see Figure 30

1шт.

32

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

33

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - distributor to block

1шт.

34

A29338

COVER

NIPPLE - distributor cap wire

4шт.

35

A30018

CABLE

WIRE - #2 and #3 spark plug (8-1/2")

2шт.

36

A29994

CABLE

WIRE - #1 and #4 spark plug (10-1/2")

2шт.

37

G44840

SPARK PLUG

- (18mm), Includes: Ref. 38

4шт.

38

G46839

GASKET

- spark plug

1шт.

39

CASA30038

CABLE

- hi-tension, coil to dist. (11")

1шт.

40

G13085

ELECTRICAL WIRE

CABLE - tension, coil to dist, (12")

1шт.

41

G46803

BOOT

NIPPLE -, Serial Range: cable-coil

1шт.

42

A33438

COIL

- ignition (Prestolite #200578) (Order A41820)

1шт.

43

G46106

BRACKET

CLAMP - coil (Prestolite #250505)

1шт.

187-540

SCREW - #10 x 1-1/2" self-tapping

1шт.

44

G11705

BRACKET

- coil mounting

1шт.

45

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

46

A20411

CONDUIT - master cable to fuel tank

1шт.

47

25-104

NUT,1/4"-20, G5

2шт.

48

A35304

HARNESS

CABLE - master, lower half

1шт.

49

A35305

CABLE

- master, upper half

1шт.

50

G44878

REGULATOR

- voltage (Prestolite #VBO-6201C), Serial Range: -8233766

1шт.

50

A36194

REGULATOR

- voltage (Prestolite #VBO-4201-HI), Start Serial: 8233766

1шт.

51

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT - 1/4" x 5/8" N.F. hex. hd.

3шт.

52

G44051

CABLE PULLING GRIP

CABLE -, Serial Range: ammeter-regulator

1шт.

53

A30109

WASHER

"O" RING - harness, spark plug wire

1шт.
