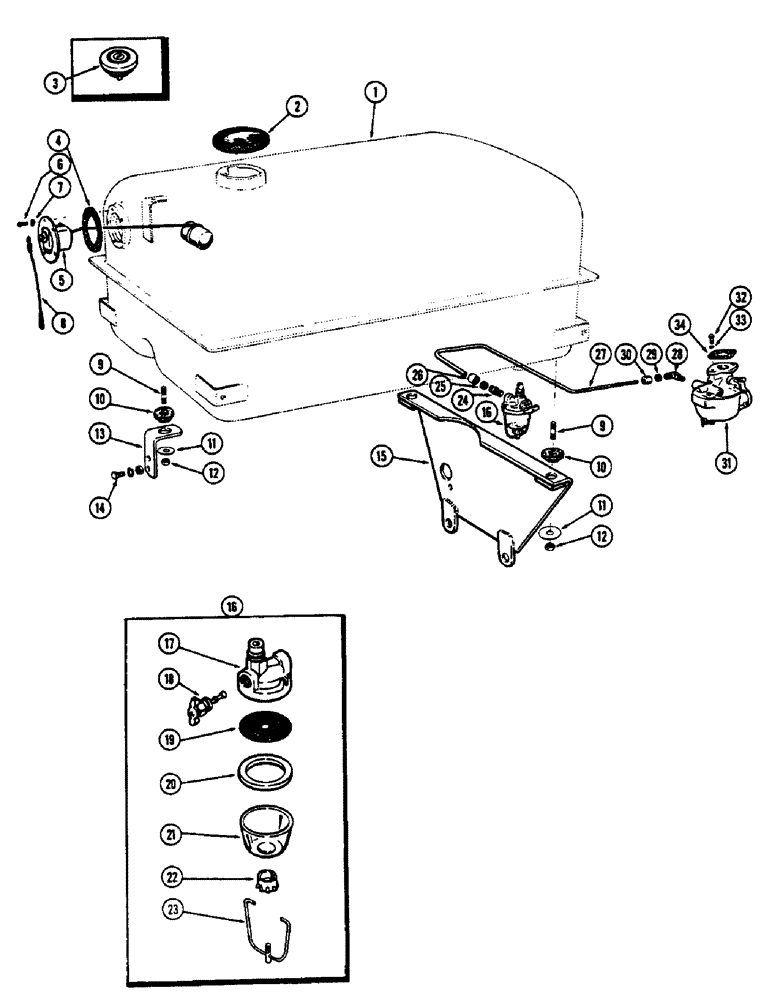

Запчасти Case 530CK (020) - FUEL SYSTEM, (159) SPARK IGNITION ENGINE (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A36560
TANK
- fuel
1шт.
2
A32119
CAP
- filler (See ref. 3)
1шт.
3
A32120
CAP
- filler (Locking type) Includes keys. Keys not furnished for repairs
1шт.
4
A11822
GASKET
- sender
1шт.
5
A23480
SENDER UNIT
SENDER - fuel gauge
1шт.
6
174-96
SCREW,Sl Rnd Hd, #10 - 32 x 7/16"
- #10-32 x 7/16" rd. hd.
5шт.
7
92-3
LOCK WASHER,#10
WASHER, LOCK, #10
5шт.
8
A11783
ELECTRICAL WIRE
CABLE -, Serial Range: sender-gauge
1шт.
9
A8373
STUD
- tank mounting (3/8" x 2-7/16")
3шт.
10
A7336
CUSHION
- rubber, tank support
3шт.
11
B18261
WASHER
- stud
3шт.
12
131-5
LOCK NUT,3/8"-16, GB
NUT - lock, 3/8" N.F. hex.
3шт.
13
A36177
SUPPORT - rear, fuel tank
1шт.
14
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
2шт.
15
A35629
SUPPORT - front, fuel tank
1шт.
17
A11214
HEAD
1шт.
18
A11205
VALVE
- shut-off
1шт.
19
A11211
FILTER SCREEN
SCREEN ASSY.
1шт.
20
A11208
GASKET
-, Serial Range: bowl-head
1шт.
21
A11209
BOWL
1шт.
22
A11210
ADJUSTER
CUP & NUT
1шт.
23
A11212
BAIL
ASSY.
1шт.
24
222-24
FITTING,9/16"-24 x 1/8" NPTF
CONNECTOR - 5/16" tube x 1/8" P.T., Includes: Ref. 25 and 26
1шт.
25
222-103
SLEEVE,5/16" Tube
1шт.
26
222-113
TUBE NUT,9/16"-24
NUT - 5/16" tube
1шт.
27
G46268
FUEL TUBE,0.312" OD x 20.5" L
LINE - fuel, strainer to carburetor
1шт.
28
222-619
ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp
- 90 degree, 5/16" tube x 1/8" P.T., Includes: Ref. 29 and 30
1шт.
29
222-653
SLEEVE,5/16" Tube, Comp
- 5/16" tube
1шт.
30
222-663
NUT,1/2"-24, 45 Degree Fl, Comp
NUT - 5/16" tube
1шт.
31
A35816
X
CARBURETOR (Zenith #12509) Order A37173 when depleted. (Repairs Figure 22)
1шт.
31
A37173
CARBURETOR
(Zenith #13106) Repairs Figure 23A
1шт.
32
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
2шт.
33
92-6
LOCK WASHER,3/8"
std. 3/8"
2шт.
34
G46826
GASKET
-, Serial Range: carburetor-manifold
1шт.
Выбрано товаров: 35
