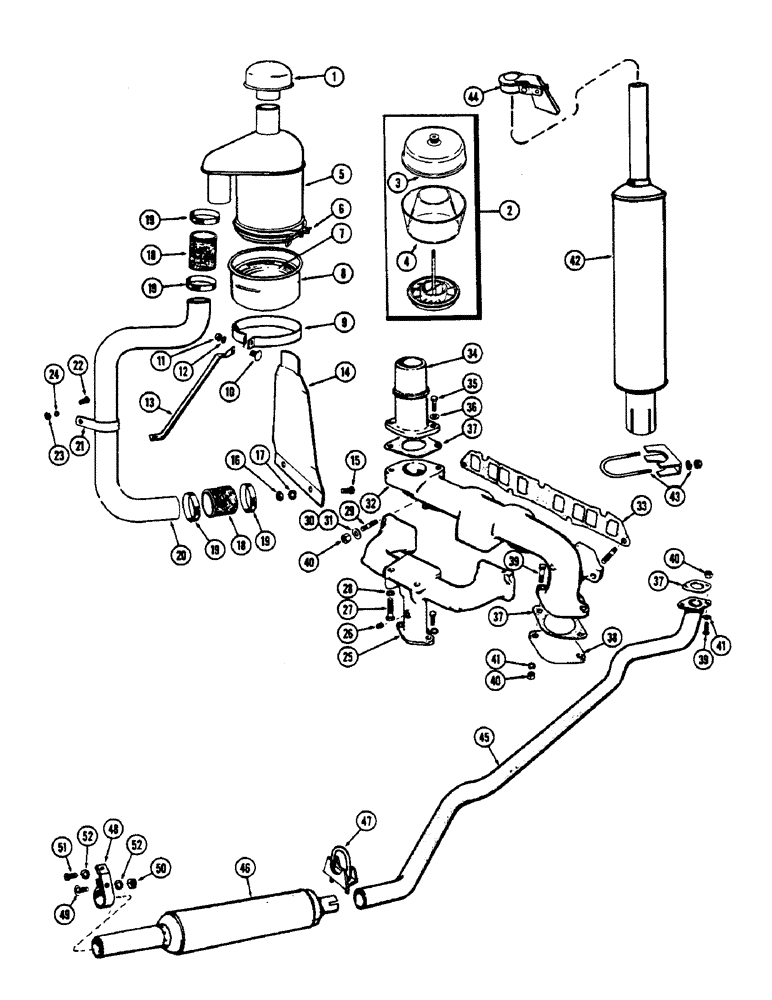

Запчасти Case 530CK (018) - AIR CLEANER-MANIFOLD-MUFFLER, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

D22685

CAP

- air cleaner

1шт.

2

D20604

PRECLEANER

PRE-CLEANER ASSY., Includes: Ref. 3 and 4

1шт.

3

D30676

COVER

1шт.

4

D30675

BODY

- plastic

1шт.

5

A35585

AIR CLEANER

ASSY., Includes: Ref. 6 - 8

1шт.

6

G45153

CLAMP

- oil cup

1шт.

7

G46324

CUP

- oil, inner

1шт.

8

G46325

CUP

- oil, outer

1шт.

9

G15614

BAND - mounting, air cleaner

1шт.

10

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rd. hd. sq. nk.

1шт.

11

25-104

NUT,1/4"-20, G5

1шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

13

A35590

BRACE - air, Serial Range: cleaner-engine

1шт.

14

A36056

BRACKET - air cleaner mounting

1шт.

15

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

16

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

17

92-6

LOCK WASHER,3/8"

std. 3/8"

2шт.

18

G46157

AIR INTAKE TUBE,2" ID x 2.375" OD x 2" L

HOSE, 2.00" ID x 2.00", SAE 20R2 - Intake Tube

2шт.

19

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

20

A35588

TUBE

- air, Serial Range: cleaner-carburetor

1шт.

21

A35860

CLAMP -, Serial Range: tube-engine

1шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

23

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

24

92-6

LOCK WASHER,3/8"

std. 3/8"

1шт.

25

G11964

X

MANIFOLD - intake (Order 1-A37004 and 1-221-1012), Includes: Ref. 26

1шт.

26

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd.

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8" x 2" N.C. hex. hd.

2шт.

28

92-6

LOCK WASHER,3/8"

std. 3/8"

2шт.

29

A29431

STUD

- manifold to head (3/8 x 1-3/4")

7шт.

30

A30058

WASHER

- special

4шт.

31

95-6

WASHER,3/8"

- plain 3/8"

3шт.

32

G2042

MANIFOLD

- exhaust

1шт.

33

A30030

GASKET

-, Serial Range: manifold-heads

1шт.

34

G2095

FITTING

ELBOW - upright muffler

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

36

92-6

LOCK WASHER,3/8"

std. 3/8"

2шт.

37

G46853

MANIFOLD GASKET

- exhaust opening

2шт.

38

A38188

PLATE

COVER - exhaust opening

1шт.

39

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.C. hex. hd.

2шт.

40

131-903

NUT,3/8"-16

NUT - brass, 3/8" N.C. hex.

7шт.

41

195-25

WASHER,3/8"

- plain (Pltd.) 3/8"

2шт.

42

G45239

MUFFLER

- upright

1шт.

43

A13240

CLAMP,2-5/8" ID

- upright muffler

1шт.

44

G45048

CAP

- weather, upright muffler

1шт.

45

A36908

PIPE, EXHAUST SYSTEM

PIPE - exhaust, underneath

1шт.

46

G45287

MUFFLER

- underneath

1шт.

47

A27077

CLAMP

-, Serial Range: muffler-pipe

1шт.

48

A36909

BRACKET

CLAMP - rear, muffler

1шт.

49

11-516

BOLT,Short NK, 5/16"-18 x 1", G2

CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

50

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

51

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

52

92-5

LOCK WASHER,5/16"

std. 5/16"

2шт.
