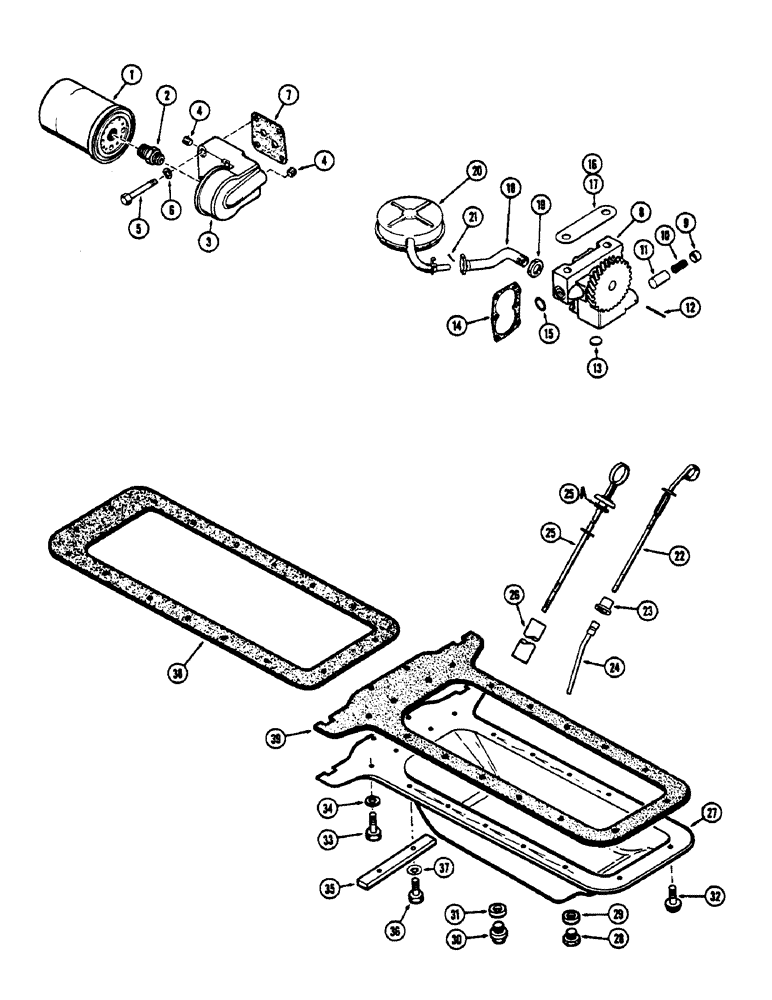

Запчасти Case 530CK (016) - OIL PUMP-OIL FILTER-OIL PAN, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

G45210

FILTER, ELEMENT

FILTER - engine oil

1шт.

2

A35557

ADAPTER

-, Serial Range: filter-bracket

1шт.

3

A35556

BRACKET

- filter mounting

1шт.

4

221-841

PLUG

- pipe, 1/4" socket hd.

4шт.

5

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16" x 1-3/4" N.C. hex. hd.

4шт.

6

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

7

G46854

GASKET

-, Serial Range: bracket-block

1шт.

8

G11844

PUMP, ENGINE OIL

OIL PUMP ASSY - complete, Includes: Ref. 9 - 14

1шт.

9

A29260

RETAINER

- relief spring

1шт.

10

G48513

VALVE SPRING

SPRING - relief

1шт.

11

A155144

VALVE, PRESSURE RELI

- relief

1шт.

12

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

ROLL PIN - 1/8" x 1/4"

1шт.

13

41-102

PLUG,Exp, 1/2"

- pump body

2шт.

14

G46852

GASKET

- pump cover

1шт.

15

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port

1шт.

16

TG11337

SHIM - pump to block (.002")

2шт.

17

G11338

SHIM,.005" Thk

Pump to block .005" Thk

1шт.

18

G45766

PIPE, EXHAUST SYSTEM

PIPE - suction

1шт.

19

223-207

LOCK NUT

NUT - lock, Serial Range: pipe-pump

1шт.

20

A30126

FLOAT ASSY. - (Order 1-A39036 and 1-A39035)

1шт.

21

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

22

G37037

DIPSTICK

- oil level (Before eng. #2121404), Includes: Ref. 23

1шт.

23

G46892

OIL SEAL

- rubber

1шт.

24

G45139

BRACKET

SUPPORT - dipstick (Before eng. #2121404)

1шт.

25

A37148

DIPSTICK

- oil level (Eng. #2121404 and after), Includes: Ref. 25A

1шт.

25a

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - dipstick seal

2шт.

26

A37149

TUBE

- dipstick (Eng. #2121404 and after)

1шт.

27

A36723

X

OIL PAN ASSY, Includes: Ref. 28 and 29

1шт.

28

A14280

PLUG

- drain (3/4" N.F. thrd.)

1шт.

29

A58608

GASKET

- drain plug (Copper)

1шт.

30

G45786

PLUG

- drain (3/8" P.T.), Includes: Ref. 31

1шт.

31

G46903

GASKET

- drain plug (Fiber)

1шт.

32

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - oil pan (Includes lockwasher)

12шт.

33

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- rear, 5/16" x 1-1/4" N.C. hex. hd.

2шт.

34

195-400

WASHER

- sealing

2шт.

35

G11372

STRIP

- reinforcing

1шт.

36

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

37

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

38

NSS

NOT SOLD SEPARAT

GASKET - (w/std. clutch) Order A40710 from Figure 6

1шт.

39

NSS

NOT SOLD SEPARAT

GASKET - (w/torque converter) Order A40711 from Figure 6

1шт.
