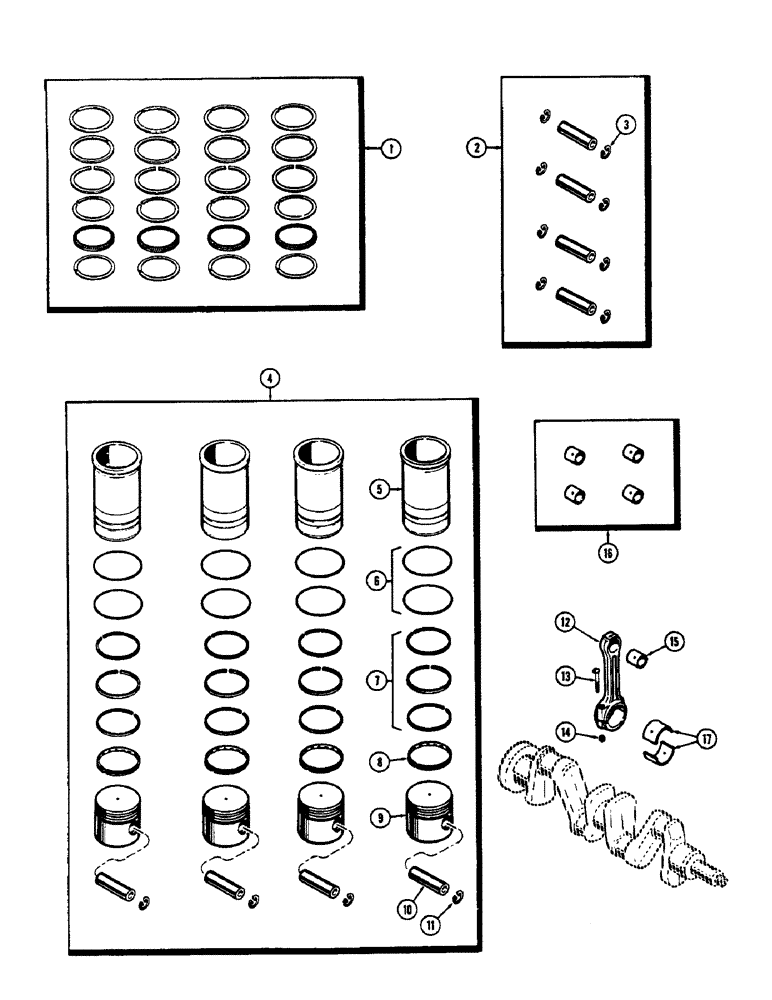

Запчасти Case 530CK (014) - PISTONS AND CONNECTING RODS, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

G11994

PACKAGE, RINGS

RINGS - piston, 2 in 1 chrome set

1шт.

2

A36030

KIT

PIN KIT - piston (Includes 8 rings), Includes: Ref. 3

1шт.

3

A26915

RING, SNAP

RING - retaining

8шт.

4

G11958

SET

PISTON & SLEEVE - matched set of 4, Includes: Ref. 5 - 11

1шт.

5

G2104

SLEEVE CYLINDER

SLEEVE - cylinder

4шт.

6

G46909

O-RING,3.112" ID x 3.344" OD

"O" RING - sleeve packing

8шт.

7

G4810

RING, PISTON

RING - compression (See ref. 1)

12шт.

8

G4811

RING, PISTON

RING - oil control (See ref. 1)

4шт.

9

G2105

PISTON

4шт.

10

NSS

NOT SOLD SEPARAT

PIN - piston (Use ref. 2)

1шт.

11

A26915

RING, SNAP

RING - retaining (See ref. 2)

8шт.

12

G11172

STEM

ROD - connecting, Includes: Ref. 13 - 15

4шт.

13

G11701

BOLT

- cap

2шт.

14

G49060

NUT

- cap bolt

2шт.

15

NSS

NOT SOLD SEPARAT

BUSHING - (Use ref. 16)

1шт.

16

G11922

BUSHING

- connecting rod (Set of 4)

1шт.

17

A36500

SEAL

LINERS - bearing, conn. rod (Std.)

4шт.

17

A36501

BEARING LINER

LINERS - bearing, conn. rod (.002" undersize)

4шт.

17

A36502

LINING

LINERS - bearing conn. rod (.010" undersize)

4шт.

17

A36503

BEARING LINER

LINERS - bearing, conn. rod (.020" undersize)

4шт.

17

A36504

KIT

LINERS - bearing, conn. rod (.030" undersize)

4шт.
