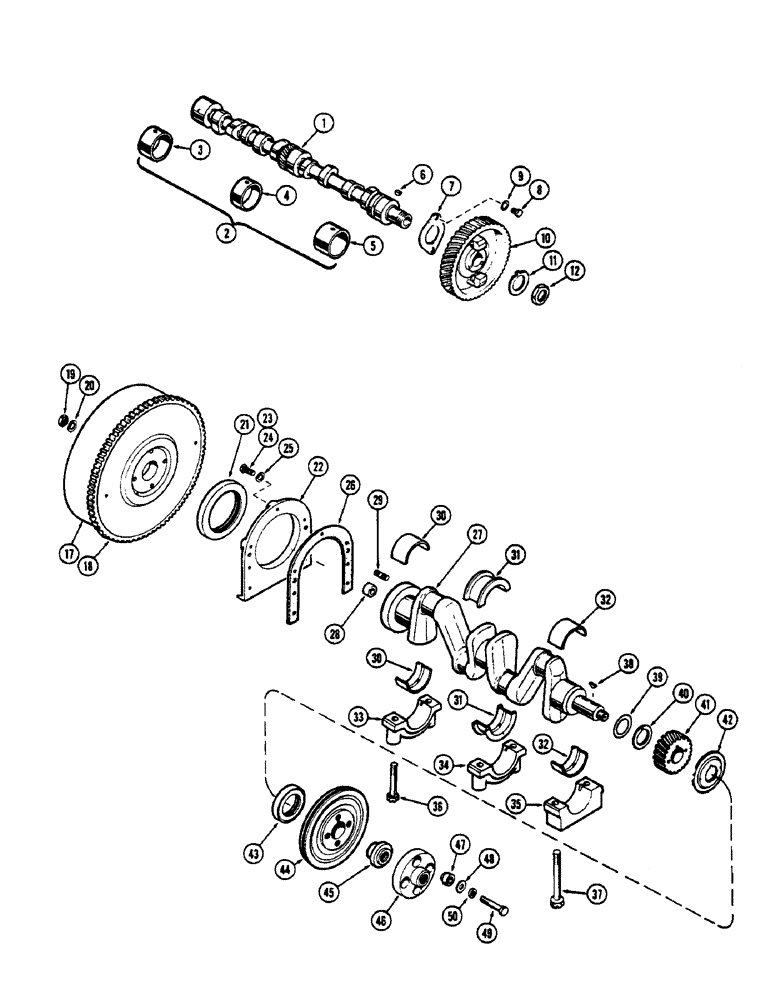

Запчасти Case 530CK (012) - CAMSHAFT, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

G2049

CAMSHAFT

1шт.

2

A41225

KIT

BUSHING SET - camshaft (Replaces A30346), Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - center

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front

1шт.

6

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to camshaft #6, 5/32" x 5/8"

1шт.

7

A29290

PLATE

- thrust, camshaft

1шт.

8

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

- thrust plate

2шт.

9

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

10

G37066

GEAR

- camshaft

1шт.

11

A29438

LOCK NUT

LOCKWASHER - camshaft nut

1шт.

12

A30063

NUT

- camshaft

1шт.

17

G11859

FLYWHEEL

ASSY. - (w/std. clutch), crankshaft, Includes: Ref. 18

1шт.

17

G11860

FLYWHEEL

ASSY. - (w/torque converter), crankshaft, Includes: Ref. 18

1шт.

18

G11710

GEAR

- ring (135 T), crankshaft & flywheel

1шт.

19

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex, crankshaft & flywheel

4шт.

20

92-7

LOCK WASHER,7/16"

crankshaft & flywheel 7/16"

4шт.

21

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

OIL SEAL - rear, crankshaft ( replaced A39027 ), flywheel

1шт.

22

A38390

RETAINER

- rear oil seal, crankshaft & flywheel

1шт.

23

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Crankshaft & flywheel Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

24

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Crankshaft & flywheel Hex, 1/4"-20 x 1", G5

3шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Crankshaft & flywheel 1/4"

7шт.

26

A38196

GASKET

- rear oil seal retainer, crankshaft & flywheel

1шт.

27

G11183

CRANKSHAFT

ASSY., crankshaft & flywheel

1шт.

28

A30024

BUSHING,15.98mm ID x 20.73mm OD x 22.23mm L

- pilot, crankshaft & flywheel

1шт.

29

A29434

STUD

- crankshaft & flywheel

4шт.

30

G37051

KIT

LINERS - rear bearing (Standard), crankshaft & flywheel

1шт.

30

G37052

KIT

LINERS - rear bearing (.002" undersize), crankshaft & flywheel

1шт.

30

A42322

FIP KIT

LINERS - rear bearing (.010" undersize), crankshaft & flywheel

1шт.

30

G37050

KIT

LINERS - rear bearing (.020" undersize), crankshaft & flywheel

1шт.

30

G37054

KIT

LINERS - rear bearing (.040" undersize), crankshaft & flywheel

1шт.

31

G37047

KIT

LINERS - center bearing (Standard), crankshaft & flywheel

1шт.

31

G37048

KIT

LINERS - center bearing (.002" undersize), crankshaft & flywheel

1шт.

31

A42321

FIP KIT

LINERS - center bearing (.010" undersize), crankshaft & flywheel

1шт.

31

G37049

KIT

LINERS - center bearing (.020" undersize), crankshaft & flywheel

1шт.

31

G37050

KIT

LINERS - center bearing (.040" undersize), crankshaft & flywheel

1шт.

32

G37043

KIT

LINERS - front bearing (Standard), crankshaft & flywheel

1шт.

32

G37044

KIT

LINERS - front bearing (.002" undersize), crankshaft & flywheel

1шт.

32

A42320

BEARING LINER

LINERS - front bearing (.010" undersize), crankshaft & flywheel

1шт.

32

G37045

KIT

LINERS - front bearing (.020" undersize), crankshaft & flywheel

1шт.

32

G37046

KIT

LINERS - front bearing (.040" undersize), crankshaft & flywheel

1шт.

33

G2037

CAP

- rear bearing, crankshaft & flywheel

1шт.

34

G2036

CAP

- front bearing, crankshaft & flywheel

1шт.

35

G2035

CAP

- front bearing, crankshaft & flywheel

1шт.

36

G49037

BOLT

- bearing cap (1/2" x 3"), crankshaft & flywheel

4шт.

37

G49059

BOLT

- front bearing cap (1/2" x 4-3/4"), crankshaft & flywheel

2шт.

38

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to , crankshaft & flywheel

2шт.

39

A29293

SHIM,.010" Thk

Thrust washer, Crankshaft and flywheel .010" Thk

1шт.

40

A30024

BUSHING,15.98mm ID x 20.73mm OD x 22.23mm L

SPACER - thrust, crankshaft & flywheel

1шт.

41

A29263

GEAR

- crankshaft & flywheel

1шт.

42

A29259

SLINGER

- oil, crankshaft & flywheel

1шт.

43

A36609

OIL SEAL

OIL SEAL - front, crankshaft & flywheel

1шт.

44

G11342

X

PULLEY - fan & generator drive, crankshaft & flywheel

1шт.

45

A35673

NUT

- pulley to , crankshaft & flywheel

1шт.

46

D140524

FLEXIBLE COUPLING,13T

FLEX COUPLING, crankshaft & flywheel, Includes: Ref. 47

1шт.

47

G36905

BLOCK

BLCOK & BUSHING, crankshaft & flywheel

4шт.

48

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- coupling bolt, crankshaft & flywheel

4шт.

49

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, Crankshaft & flywheel

4шт.

50

92-7

LOCK WASHER,7/16"

crankshaft & flywheel 7/16"

4шт.
