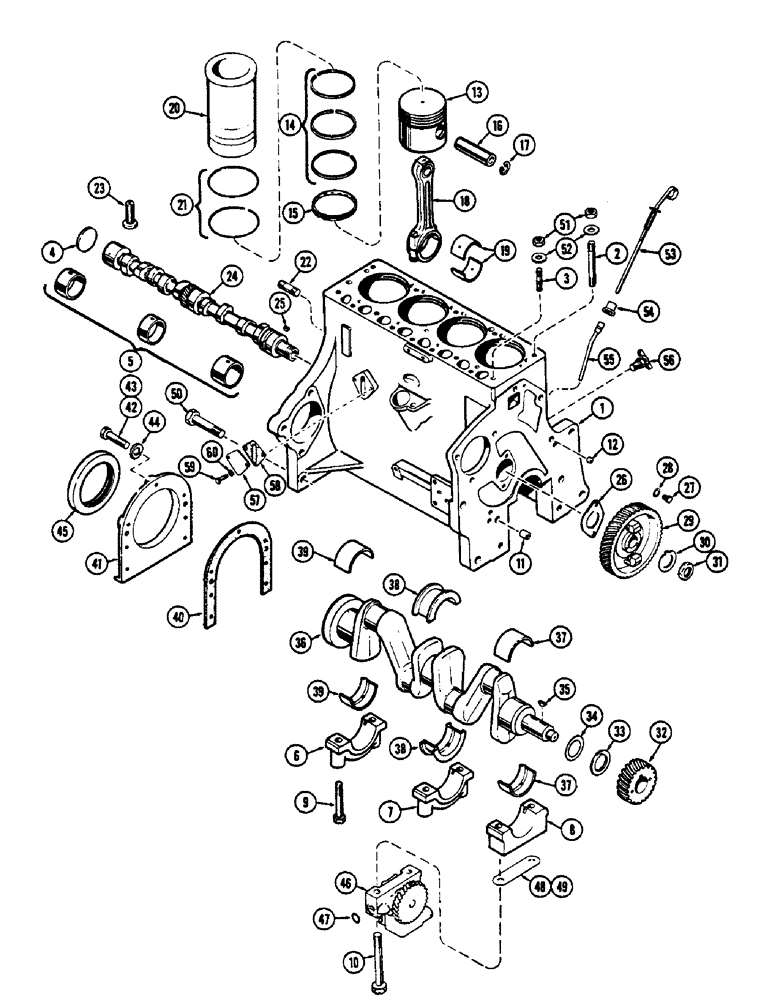

Запчасти Case 530CK (011A) - CYLINDER BLOCK ASSEMBLY, (159) SPARK IGNITION ENGINE, BEFORE ENG NO.2121404 (10) - ENGINE

G10507

X

SHORT BLOCK ASSY. - (Order A40589), Includes: Ref. 1 - 49

1шт.

1

G11957

BLOCK ASSY. - stripped (Order A40816), Includes: Ref. 2 - 12

1шт.

2

A29436

STUD

- head (1/2 x 5-7/8")

5шт.

3

A30057

STUD

- head (1/2 x 2")

9шт.

4

A39241

PLUG,Exp, 2.12" dia

- rear (2-1/8" dia.)

1шт.

5

A41225

KIT

BUSHING SET - camshaft (Replaces A30346)

1шт.

6

G2037

CAP

- rear bearing, crankshaft

1шт.

7

G2036

CAP

- center bearing, crankshaft

1шт.

8

G2035

CAP

- front bearing, crankshaft

1шт.

9

G49037

BOLT

- bearing cap (1/2" x 3")

4шт.

10

G49059

BOLT

- front brg. cap (1/2" x 4-3/4")

2шт.

11

A29442

RING

- dowel

2шт.

12

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

3шт.

13

G2105

PISTON

(See Figure 14)

4шт.

14

G4811

RING, PISTON

RING - compression (See Figure 14)

12шт.

15

G4810

RING, PISTON

RING - oil (See Figure 14)

4шт.

16

NSS

NOT SOLD SEPARAT

PIN - wrist (See Figure 14)

1шт.

17

A26915

RING, SNAP

RING - retaining (See Figure 14)

8шт.

18

G11172

STEM

CONNECTING ROD ASSY. (See Figure 14)

4шт.

19

A36500

SEAL

LINERS - bearing, std. (See Figure 14)

4шт.

20

G2104

SLEEVE CYLINDER

SLEEVE - cylinder (See Figure 14)

4шт.

21

G46909

O-RING,3.112" ID x 3.344" OD

"O" RING - sleeve seal

8шт.

22

A29333

STUD

- block to torque tube (5/8 x 3")

2шт.

23

A30006

TAPPET

- valve

8шт.

24

G2049

CAMSHAFT

1шт.

25

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Gear to camshaft #6, 5/32" x 5/8"

1шт.

26

A29290

PLATE

- thrust

1шт.

27

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

- thrust plate

2шт.

28

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

29

G37066

GEAR

- camshaft

1шт.

30

A29438

LOCK NUT

LOCKWASHER - camshaft nut

1шт.

31

A30063

NUT

-, Serial Range: gear-camshaft

1шт.

32

A29263

GEAR

- crankshaft

1шт.

33

A29294

BUSHING

SPACER - crankshaft thrust

1шт.

34

A29293

SHIM,.010" Thk

Crankshaft thrust .010" Thk

1шт.

35

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - gear & pulley to crankshaft

2шт.

36

G11183

CRANKSHAFT

(See Figure 12)

1шт.

37

G37043

KIT

LINERS - front brg., std. (See Figure 12)

1шт.

38

G37047

KIT

LINERS - center brg., std. (See Figure 12)

1шт.

39

G37051

KIT

LINERS - rear brg., std. (See Figure 12)

1шт.

40

A38196

GASKET

- oil seal retainer

1шт.

41

A38390

RETAINER

- rear oil seal

1шт.

42

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

43

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

44

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

45

A39027

OIL SEAL

OIL SEAL - rear, crankshaft

1шт.

46

G11844

PUMP, ENGINE OIL

OIL PUMP ASSY (See Figure 16)

1шт.

47

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port

1шт.

48

G11337

SHIM,.002" Thk

Pump to block .002" Thk

2шт.

49

G11338

SHIM,.005" Thk

Pump to block .005" Thk

1шт.

50

A30099

X

BOLT - block to torque tube (5/8 x 3-1/2")

2шт.

51

A30021

NUT

- head stud

14шт.

52

G49404

WASHER

- head stud

14шт.

53

G37037

DIPSTICK

- oil level, Includes: Ref. 54

1шт.

54

G46892

OIL SEAL

- rubber

1шт.

55

G45139

BRACKET

SUPPORT - dipstick

1шт.

56

217-103

COCK, DRAIN

DRAIN COCK - cylinder block

1шт.

57

G11702

COVER

- fuel pump opening

1шт.

58

G46902

GASKET

- cover

1шт.

59

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

60

92-2

LOCKWASHER - 5/16" std.

2шт.
