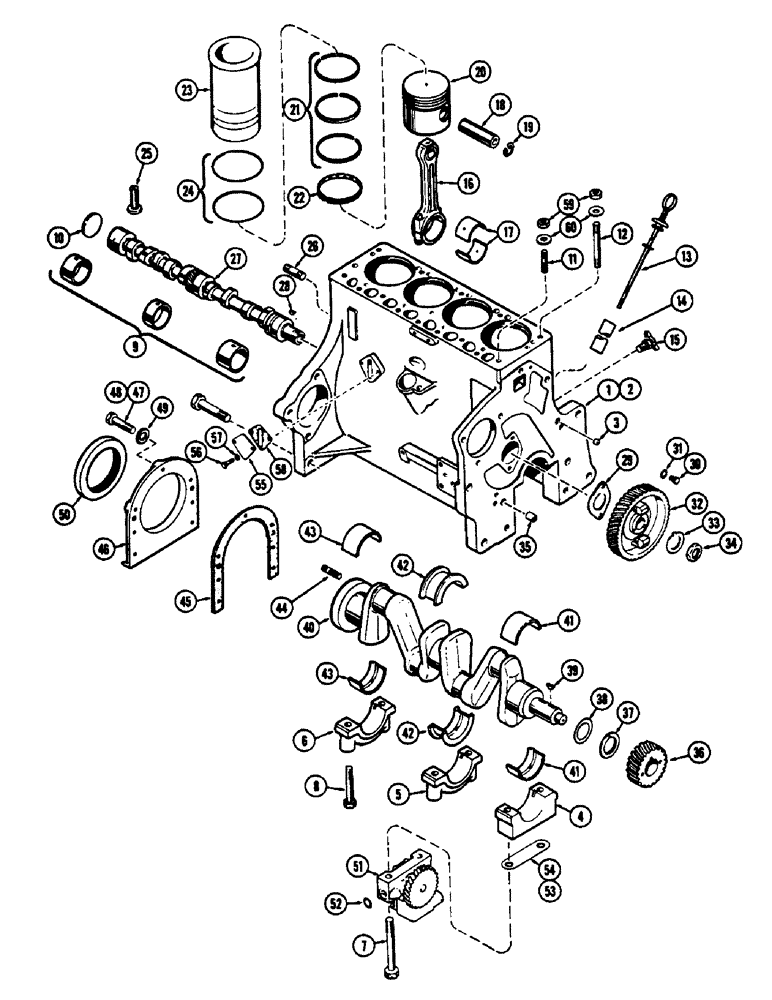

Запчасти Case 530CK (010) - CYLINDER BLOCK ASSEMBLY, (159) SPARK IGNITION ENGINE, ENG. NO.2121404 AND AFTER (10) - ENGINE

1

A40589

SKELETON ENGINE

SHORT BLOCK ASSY., Includes: Ref. 2 - 54

1шт.

2

A40587

BLOCK ASSY. - stripped (Order A40816), Includes: Ref. 3 - 14

1шт.

3

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

3шт.

4

G2035

CAP

- frt. bearing, crankshaft

1шт.

5

G2036

CAP

- center brg., crankshaft

1шт.

6

G2037

CAP

- rear bearing, crankshaft

1шт.

7

G49059

BOLT

- front brg. cap (1/2" x 4-3/4")

2шт.

8

G49037

BOLT

- bearing cap (1/2" x 3")

4шт.

9

A41225

KIT

BUSHING SET - crankshaft (Replaces A30346)

1шт.

10

A39241

PLUG,Exp, 2.12" dia

- rear (2-1/8")

1шт.

11

A30057

STUD

- head to block (1/2 x 2")

9шт.

12

A29436

STUD

- head to block (1/2 x 5-7/8")

5шт.

13

A37148

DIPSTICK

- oil level

1шт.

14

A37149

TUBE

- oil filler & dipstick

1шт.

15

217-103

COCK, DRAIN

DRAIN COCK - block

1шт.

16

G11172

STEM

CONNECTING ROD ASSY. (See Figure 14)

4шт.

17

A36500

SEAL

LINERS - bearing, conn. rod (See Figure 14)

4шт.

18

NSS

NOT SOLD SEPARAT

PIN - wrist (See page 14)

4шт.

19

A26915

RING, SNAP

RING - retaining (See Figure 14)

8шт.

20

G2105

PISTON

- (See Figure 14)

4шт.

21

G4810

RING, PISTON

RING - compression (See Figure 14)

12шт.

22

G4811

RING, PISTON

RING - oil (See Figure 14)

4шт.

23

G2104

SLEEVE CYLINDER

SLEEVE - cylinder (See Figure 14)

4шт.

24

G46909

O-RING,3.112" ID x 3.344" OD

"O" RING - sleeve packing

8шт.

25

A30006

TAPPET

- valve

8шт.

26

A29333

STUD

- engine mounting (5/8 x 3")

2шт.

27

G2049

CAMSHAFT

1шт.

28

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft gear #6, 5/32" x 5/8"

1шт.

29

A29290

PLATE

- thrust, camshaft

1шт.

30

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

- thrust plate

2шт.

31

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

32

G37066

GEAR

- camshaft

1шт.

33

A29438

LOCK NUT

LOCKWASHER - camshaft nut

1шт.

34

A30063

NUT

-, Serial Range: gear-camshaft

1шт.

35

A29442

RING

- dowel, timing gear cover

2шт.

36

A29263

GEAR

- camshaft

1шт.

37

A29294

BUSHING

SPACER - thrust

1шт.

38

A29293

SHIM,.010" Thk

Thrust .010" Thk

1шт.

39

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear

2шт.

40

G11183

CRANKSHAFT

(See Figure 12)

1шт.

41

G37043

KIT

LINERS - front brg., std. (See page 12)

1шт.

42

G37047

KIT

LINERS - center brg., std. (See Figure 12)

1шт.

43

G37051

KIT

LINERS - rear brg., std. (See Figure 12)

1шт.

44

A29434

STUD

-, Serial Range: flywheel-crankshaft

4шт.

45

A38196

GASKET

- rear oil seal retainer

1шт.

46

A38390

RETAINER

- rear oil seal

1шт.

47

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

48

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

49

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

50

A39027

OIL SEAL

OIL SEAL - rear, crankshaft

1шт.

51

G11844

PUMP, ENGINE OIL

OIL PUMP ASSY. (See Figure 16)

1шт.

52

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - oil port

1шт.

53

G11337

SHIM,.002" Thk

Pump to block .002" Thk

2шт.

54

G11338

SHIM,.005" Thk

Pump to block .005" Thk

1шт.

55

G11702

COVER

- fuel pump opening

1шт.

56

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

57

92-5

LOCK WASHER,5/16"

std. 5/16"

2шт.

58

G46902

GASKET

- cover

1шт.

59

A30021

NUT

- head stud

14шт.

60

G49404

WASHER

- head stud

14шт.
