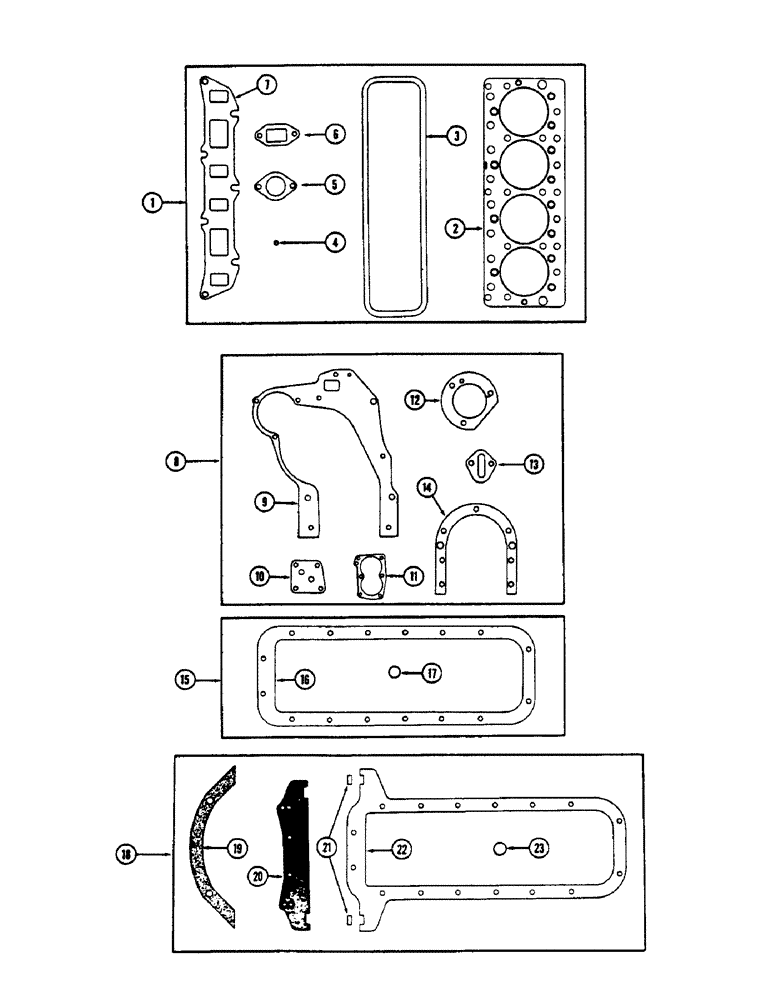

Запчасти Case 530CK (006) - ENGINE GASKETS KITS, (159) SPARK IGNITION ENGINE (10) - ENGINE

1

G11963

GASKET

VALVE GRIND KIT, Includes: Ref. 2 - 7

1шт.

2

G46870

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

3

A30009

GASKET

-, Serial Range: valve-cover

1шт.

4

G46851

SEAL

- valve stem

4шт.

5

G46826

GASKET

- carburetor

1шт.

6

A30003

GASKET

- water outlet elbow

1шт.

7

A30030

GASKET

- manifold

1шт.

8

A41465

GASKET

CYLINDER BLOCK KIT, Includes: Ref. 9 - 14

1шт.

9

A38226

GASKET

- timing gear cover

1шт.

10

G46854

GASKET

- oil filter bracket

1шт.

11

G46852

GASKET

- oil pump cover

1шт.

12

G46875

GASKET

- water pump

1шт.

13

G46902

GASKET

- fuel pump opening

1шт.

14

A38196

GASKET

- rear oil seal retainer

1шт.

15

A40710

KIT

OIL PAN KIT - (Std. clutch), Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: pan-block

1шт.

17

A58608

GASKET

- drain plug (1" O.D. x 3/4" I.D.)

1шт.

18

A40711

GASKET KIT

OIL PAN KIT - (Case-O-Matic), Includes: Ref. 19 - 23

1шт.

19

G46913

GASKET

- block to torque tube

1шт.

20

A36653

GASKET

- support radius rod

1шт.

21

A11604

OIL PAN GASKET SET

- rear, oil, Serial Range: pan-engine

2шт.

22

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: pan-block

1шт.

23

A58608

GASKET

- drain plug (1" O.D. x 3/4" I.D.)

1шт.
