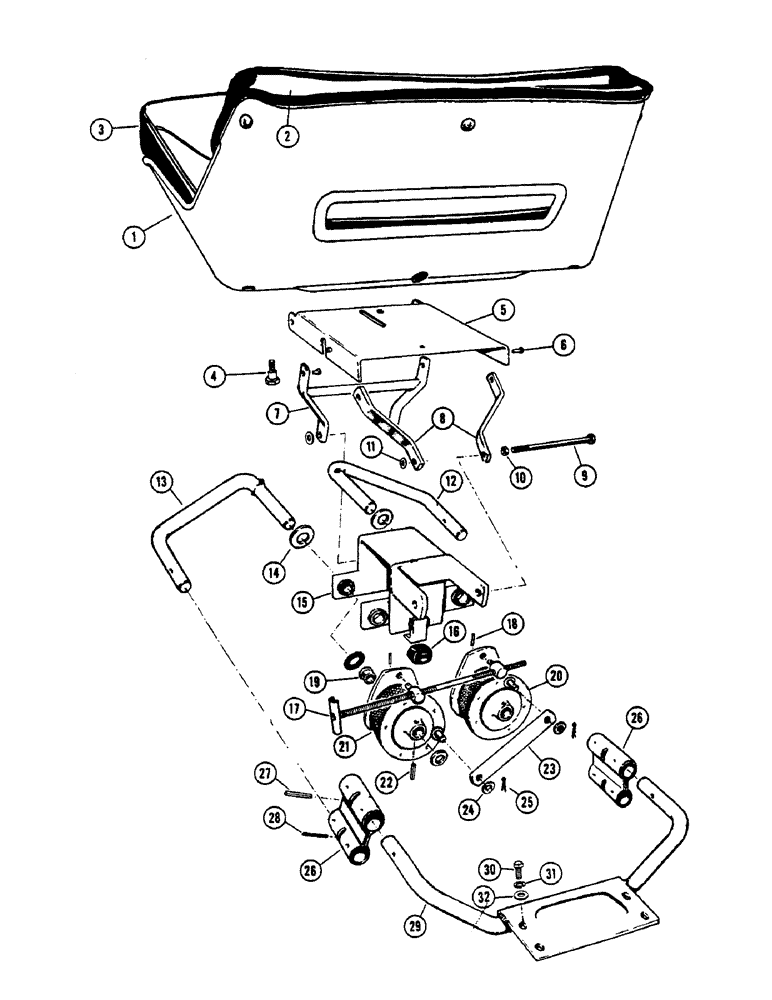

Запчасти Case 530CK (150) - OPERATORS SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D32724

SEAT ASSY.

SEAT ASSEMBLY complete (Incl. ref. 2 and 3)

1шт.

2

A24712

BACKREST

CUSHION - back seat

1шт.

173-213

SCREW,Phil Rnd Hd, 1/4" - 20 x 1/2"

mach., 1/4" x 1/2" rd. hd. (Philips recessed)

3шт.

3

A24713

CUSHION

seat

1шт.

173-213

SCREW,Phil Rnd Hd, 1/4" - 20 x 1/2"

- mach., 1/4" x 1/2" rd. hd. (Philips recessed)

2шт.

195-518

WASHER,1/4", SAE

- 1/4" plain

2шт.

4

G49092

BOLT shoulder, Serial Range: seat-support

1шт.

5

G10778

CHANNEL

seat mounting

1шт.

6

G10779

RIVET

channel to pivot arm

4шт.

7

A38148

X

ARM - front pivot (Replaces G13379)

1шт.

8

G10775

ARM

rear pivot

2шт.

9

14-572

BOLT,Hex, 5/16" - 24 x 4-1/2", Gr 5

5/16" x 4-1/2" N.F. hex. hd.

2шт.

10

131-3

LOCK NUT,5/16"-24, GB

NUT lock, 5/16" N.F. hex.

2шт.

11

95-4

WASHER,1/4"

plain 1/4"

2шт.

12

G46000

SHAFT spring, R.H.

1шт.

13

G46001

SHAFT spring, L.H.

1шт.

14

A26462

WASHER

- spring shafts

6шт.

15

G45031

BRACKET support

1шт.

16

A30644

BUMPER

- rubber

1шт.

17

G45001

STUD

adjusting

1шт.

18

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Adjusting stud 1/8" x 3/4", Slotted

2шт.

19

G46002

FLANGED BEARING

BEARING flange

2шт.

20

G45002

SPRING SEAT

RUBBER SPRING ASSEMBLY R.H.

1шт.

21

G45003

SPRING SEAT

RUBBER SPRING ASSEMBLY L.H.

1шт.

22

135-583

GROOVED PIN,1/4" x 1 1/4", Type D

Pin, Grooved, 1/4" x 1 1/4", Type D

2шт.

23

G45005

LINK stabilizing

1шт.

24

95-8

WASHER,1/2"

stabilizer link 7/16" plain

4шт.

25

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

26

G45004

LEVER

suspension

2шт.

27

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Lever to spring shaft 1/4" x 1 1/4", Slotted

2шт.

28

138-155

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, , Lever to support 5/16" x 1 1/4", Slotted

2шт.

29

A37954

SUPPORT - seat suspension (Replaces G13034)

1шт.

30

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

31

92-6

LOCK WASHER,3/8"

std. 3/8"

4шт.

32

95-6

WASHER,3/8"

- std. 3/8"

4шт.

A24713

CUSHION

- seat (Not shown)

1шт.
