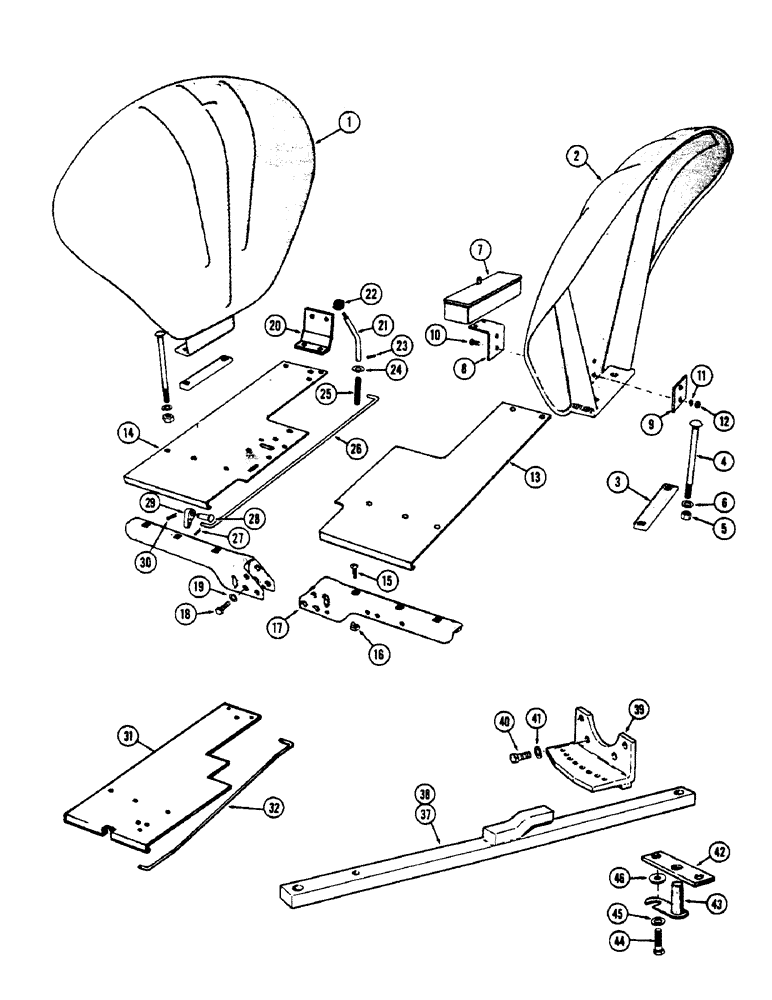

Запчасти Case 530CK (148) - STEP PLATES-FENDERS AND TOOL BOX (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

A35749

FENDER - R.H. (Replaces A29118 on R.H. side)

1шт.

2

A35749

FENDER L.H.

1шт.

3

A29091

CLAMP - fender

2шт.

4

11-7104

BOLT - 7/16" x 6-1/2" rd. hd. sq. nk.

4шт.

5

25-107

NUT,7/16"-14, G5

7/16" N.C. hex.

4шт.

6

92-7

LOCK WASHER,7/16"

std. 7/16"

4шт.

7

G13138

TOOL BOX

1шт.

8

A35831

BRACKET tool box mounting

1шт.

9

A35832

PLATE reinforcement, mounting bracket

1шт.

10

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

12

25-104

NUT,1/4"-20, G5

4шт.

13

G15651

PLATE step, L.H.

1шт.

14

G14388

PLATE - step, R.H. (See ref. 31)

1шт.

15

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

mach. 5/16" x 3/4" N.C. truss hd.

8шт.

16

1502286C2

NUT,Floating Cage, 5/16"-18

- cage, 5/16" N.C.

8шт.

17

G10752

SUPPORT front, step plate

2шт.

18

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

19

92-6

LOCK WASHER,3/8"

std. 3/8"

6шт.

20

D30995

SUPPORT - rear, step plate (See A35170 & A35171)

2шт.

20

A35170

SUPPORT

- rear R.H. (w/drawbar tractor)

1шт.

20

A35171

SUPPORT

- rear L.H. (w/drawbar tractor)

1шт.

21

G10765

LEVER

brake release

1шт.

22

G10766

KNOB

lever

1шт.

23

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

24

95-8

WASHER,1/2"

plain 1/2"

1шт.

25

G10707

VALVE SPRING

SPRING brake release lever

1шт.

26

G10764

DRAG LINK

LINK - lever to pedal (See ref. 32)

1шт.

27

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

28

A30119

AXLE PIN

PIN - pivot, brake pawl

1шт.

29

G16604

BRAKE LINE

PAWL brake lock

1шт.

30

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

31

A36603

PLATE - step, R.H. (w/diff. lock)

1шт.

32

A36606

LINK - lever to pedal (w/diff. lock)

1шт.

37

A36756

DRAWBAR

- (34-3/4" long) w/dry clutch

1шт.

38

A36757

DRAWBAR

- (38-1/8") w/torque converter

1шт.

39

G30266

SUPPORT

- rear, drawbar

1шт.

40

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Drawbar Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

41

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Drawbar 5/8"

4шт.

42

G10617

SUPPORT

- front, drawbar

1шт.

43

G14403

PIN

& LATCH - drawbar

1шт.

44

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Drawbar Hex, 3/4"-10 x 2", G5

2шт.

45

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Drawbar 3/4"

2шт.

46

95-12

WASHER,3/4"

- plain, drawbar 3/4"

2шт.
