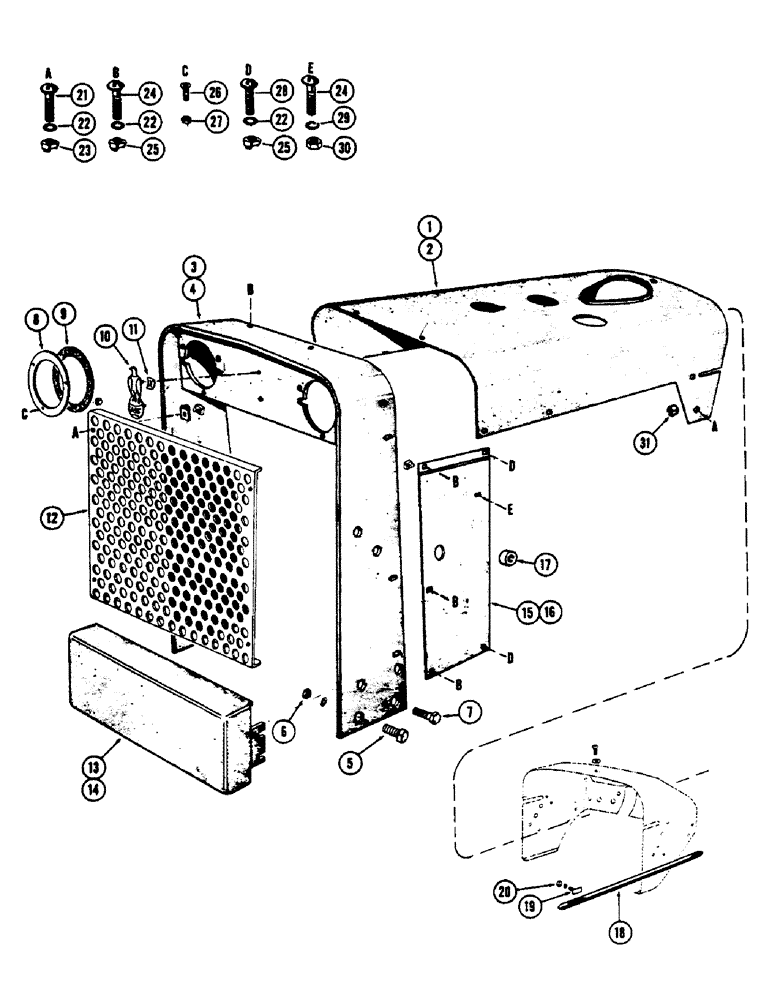

Запчасти Case 530CK (070) - HOOD - GRILLE AND SIDE PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D31067

HOOD (Gas)

1шт.

2

D31080

HOOD (Diesel)

1шт.

3

D31058

WRAPPER radiator (Gas)

1шт.

4

D31075

WRAPPER radiator (Diesel)

1шт.

5

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

6

230-4117

LOCK NUT,7/16"-14, GA

NUT - lock, 5/8" N.C. hex.

4шт.

7

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Standard 5/8"

4шт.

8

A11275

RING

retainer, head lamp

2шт.

9

D31838

GASKET

head lamp

2шт.

10

A24526

EMBLEM front

2шт.

11

131-138

PUSH-ON NUT

CLIP retainer, emblem

2шт.

12

D31064

GRILLE ASSY

GRILLE radiator

1шт.

13

D31071

GUARD pump (Gas)

1шт.

14

D31082

GUARD ASSY.

GUARD pump (Diesel)

1шт.

15

D31065

PANEL side, L.H. front (Gas)

1шт.

D31066

PANEL side, R.H. front (Gas)

1шт.

16

D31078

PANEL

side, R.H. front (Diesel)

1шт.

D31079

PANEL

side, L.H. front (Diesel)

1шт.

17

D31074

SPACER

side panel

2шт.

18

G46259

MOLDING

STRIP chrome moulding

2шт.

19

A11459

BOLT

"T" BOLT moulding strip

2шт.

20

193-1000

NUT,Keps, w/LW,#10-32

#10-32 hex. (Incl. lockwasher)

4шт.

21

175-413

SCREW,Phil Truss Hd, 5/16" - 18 x 3/4"

mach., 5/16" x 3/4" truss. hd.

2шт.

22

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

8шт.

23

1502286C2

NUT,Floating Cage, 5/16"-18

retainer, 5/16" N.C.

2шт.

24

175-415

SCREW,Phil Truss Hd, 5/16" - 18 x 1"

mach., 5/16" x 1" truss. hd.

8шт.

25

131-106

SPRING NUT,Ret, 5/16"-18

Ret, 5/16"-18

6шт.

26

182-503

SCREW,Sl Pan Hd, #6 - 32 x 1"

mach., #6-32 x 1" pan hd.

6шт.

27

129-15

NUT,#6-32

6шт.

28

175-406

SCREW,Phil Truss Hd, 5/16 - 18 x 1/2"

mach., 5/16" x 1/2" truss. hd.

4шт.

29

92-5

LOCK WASHER,5/16"

std. 5/16"

2шт.

30

9635082

NUT,5/16" - 18, Gr 5

5/16" N.C. hex.

2шт.

31

A11456

LOCK PIN

FASTENER moulding strip

2шт.
