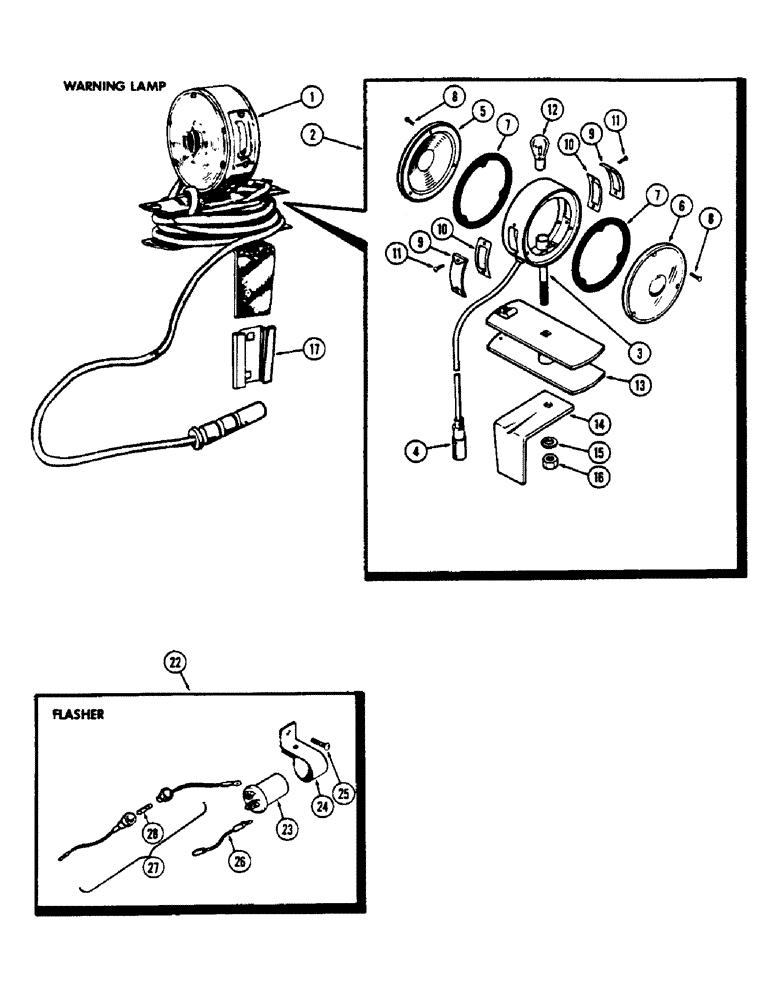

Запчасти Case 530CK (152) - WARNING LAMP (55) - ELECTRICAL SYSTEMS

1

A11066M

WARNING LAMP ATTACHMENT, Includes: Ref. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

LAMP ASSY. - (Order A11066M), Includes: Ref. 3 - 16

1шт.

3

NSS

NOT SOLD SEPARAT

BODY ASSY. - w/cord (Order A11066M), Includes: Ref. 4

1шт.

4

B50259

PLUG

- auxiliary socket

1шт.

5

B50337

LENS

- lamp (Amber)

1шт.

6

B53962

LENS

- lamp (Red)

1шт.

7

B50317

GASKET - lens

2шт.

8

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- lens. ret. (#6 x 1/2" rd. hd.)

6шт.

9

B50328

LENS - lamp, side

2шт.

10

B50329

GASKET - side lens

2шт.

11

281007

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1/2"

- side lens ret. (#6 x 5/16" pan hd.)

4шт.

12

33686

BULB

- lamp (21 C.P.)

1шт.

13

B50330

SPOOL - cable storage

1шт.

14

B50331

BRACKET - lamp attaching

1шт.

15

92-7

LOCK WASHER,7/16"

std. 7/16"

1шт.

16

25-117

NUT,7/16"-20, G5

- lamp ret. (7/16" N.F. hex.)

1шт.

17

A8179

SOCKET

- lamp mounting

1шт.

22

A22630M

FLASHER ATTACHMENT, Includes: Ref. 23 - 28

1шт.

23

A22627

LIGHT, WARNING

FLASHER - warning lamp, attachment

1шт.

24

A22626

BRACKET - flasher mounting, attachment

1шт.

25

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- bracket (#10 x 1/2" N.C. rd. hd.), flasher attachment

1шт.

26

A22628

WIRE - flasher to aux. socket, attachment

1шт.

27

A22629

WIRE ASSY. - flasher to power, attachment, Includes: Ref. 28

1шт.

28

223-4

FUSE,4 Amp, Type 3AG

- flasher (4 amp.), attachment

1шт.
