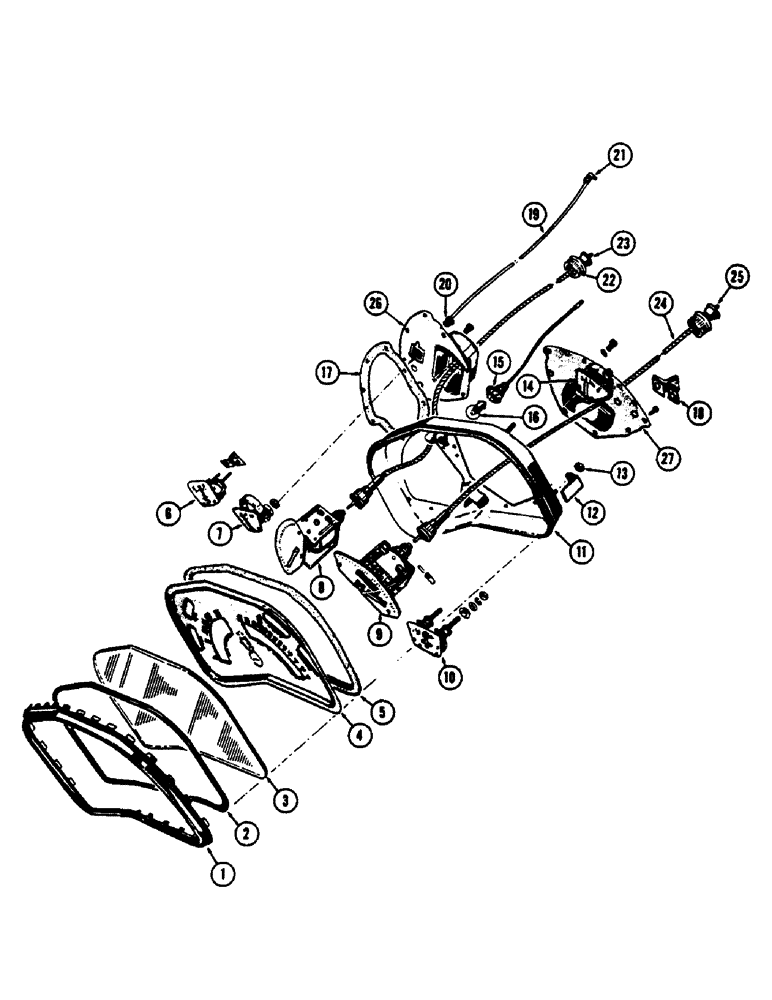

Запчасти Case 530CK (067A) - INSTRUMENT CLUSTER PARTS (55) - ELECTRICAL SYSTEMS

1

G46028

RIM

- glass clamp

1шт.

2

G46032

GASKET,0.125" ID x 0.188" OD

GASKET - clamp

1шт.

3

G46029

GLASS

1шт.

4

A23518

MAT

FACE

1шт.

5

G46033

GASKET

- face

1шт.

6

A23465

PANEL, INSTRUMENTS

GAUGE - fuel

1шт.

7

A35223

GAUGE - engine oil pressure (Gas)

1шт.

A23466

GAUGE ASSY.

GAUGE - engine oil pressure (Diesel)

1шт.

8

A23458

SPEEDOMETER

1шт.

9

A23456

GAUGE

TCHOMETER (Includes hour meter)

1шт.

10

A23464

PANEL, INSTRUMENTS

AMMETER

1шт.

11

G45018

CASE

- instrument

1шт.

12

G46038

CLAMP - mounting

4шт.

13

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex.

4шт.

14

A23459

PANEL, INSTRUMENTS

GAUGE - engine temperature

1шт.

15

A21501

ELECTRICAL WIRE

SOCKET - instrument lamp

2шт.

16

A14553

BULB

- instrument (Mfrs #57)

2шт.

17

G46034

GASKET - instrument case

2шт.

18

G46040

INSULATOR - gauge posts

3шт.

19

G46299

TUBE,0.125" OD x 57" L

- oil pressure gauge

1шт.

20

A21503

TUBE NUT

-, Serial Range: tube-gauge

1шт.

21

222-430

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

- tube to engine

1шт.

22

G45230

HOUSING

CABLE ASSY. - speedometer (46-1/32"), Includes: Ref. 23

1шт.

23

A24523

KIT

CABLE - drive

1шт.

24

G45357

CABLE

ASSY. - tachometer (50-1/2"), Includes: Ref. 25

1шт.

25

A24523

KIT

CABLE - drive

1шт.

26

NSS

NOT SOLD SEPARAT

CASE - instrument (Order A23429 or A35222)

1шт.

27

NSS

NOT SOLD SEPARAT

CASE - instrument (Order A23429 or A35222)

1шт.

A23429

PANEL

CLUSTER ASSY. (Diesel)

1шт.

A35222

INSTRUMENT CLUSTER

CLUSTER ASSY. (Gas)

1шт.
