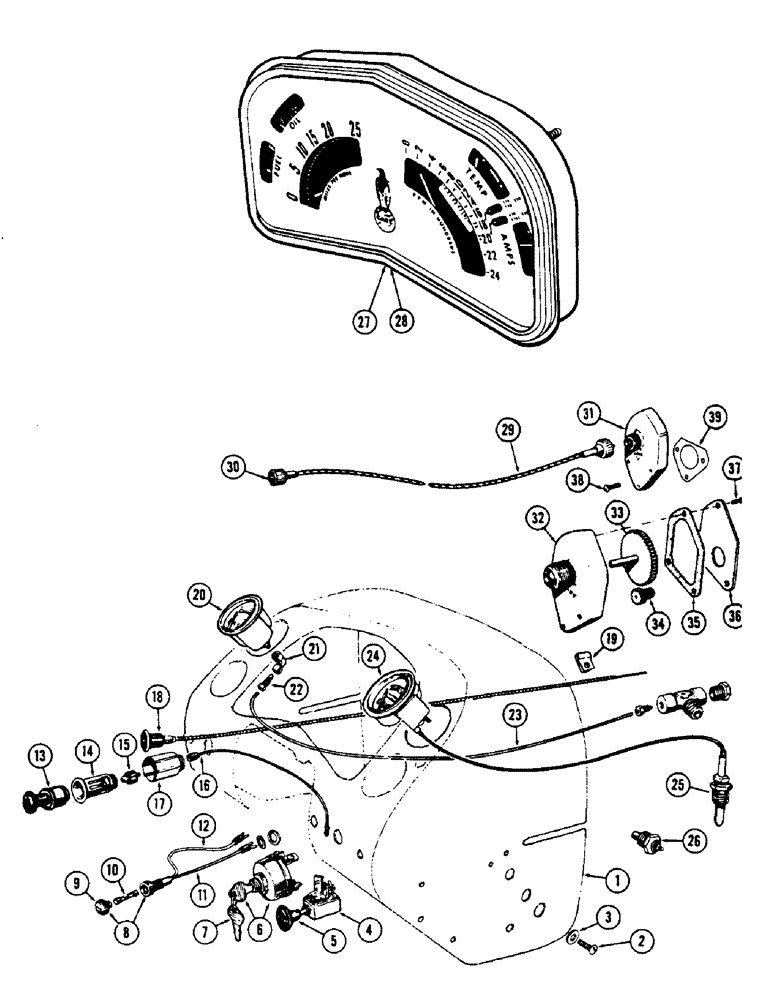

Запчасти Case 530CK (066) - INSTRUMENT PANEL (55) - ELECTRICAL SYSTEMS

1

A35576

PANEL instrument mounting

1шт.

2

175-431

SCREW - 1/4 x 3/8" N.F. truss. hd.

3шт.

3

195-518

WASHER,1/4", SAE

- 1/4" plain

3шт.

4

G13142

IGNITION SWITCH

SWITCH light (Incl. knob), Includes: Ref. 5

1шт.

5

G13141

KNOB

1шт.

6

A24510

SWITCH

- starting, diesel (Order A38959 switch & A24509 key)

1шт.

A24511

SWITCH

starting, gas (Incl. key), Includes: Ref. 7

1шт.

7

A24509

KEY

- ignition (See A20621)

1шт.

A20621

KEY

(Indak) Before #8201105

1шт.

8

A22874

HOLDER

FUSE HOLDER, Includes: Ref. 9

1шт.

9

A10958

CAP

1шт.

10

223-20

FUSE,20 Amp, Type SFE

- light (SFE #20)

1шт.

11

A22875

ELECTRICAL WIRE

WIRE fuse to light switch

1шт.

12

A22876

ELECTRICAL WIRE

WIRE fuse to starting switch

1шт.

13

A24134

CIGARETTE LIGHTER

LIGHTER - cigarette

1шт.

14

G44916

SOCKET

cigarette lighter, Includes: Ref. 15 and 16

1шт.

15

G44918

FUSE

1шт.

16

G44022

ELECTRICAL WIRE

CABLE

1шт.

17

G46381

SHELL - clamping, lighter socket

1шт.

18

A38458

CONTROL

- choke (Gas) (Replaces A36578)

1шт.

18

A38454

CONTROL LEVER

CONTROL - shut-off (Diesel) (Replaces A36573)

1шт.

19

A26814

CLIP - choke rod to fuel tank

1шт.

A26673

CLIP

- shut-off rod to fuel tank

1шт.

20

G45257

GAUGE ASSY.

GAUGE - converter oil pressure

1шт.

21

222-520

ELBOW,90 Degree x 1/8" NPT x 5/16"-20, Fem

tube to gauge, Includes: Ref. 22

1шт.

22

222-500

TUBE NUT,5/16" - 24 NPT

NUT tube, 1/8"

1шт.

23

G46292

TUBE,0.125" OD x 28" L

gauge to converter

1шт.

24

G45258

ELECTRICAL GAUGE

GAUGE - converter oil temperature, Includes: Ref. 25

1шт.

25

A30136

ADAPTER

- temperature bulb

1шт.

26

A21462

SENDER UNIT

SENDER - engine temperature

1шт.

27

A23429

PANEL

CLUSTER instrument (Diesel) For repairs see Figure 67A

1шт.

28

A35222

INSTRUMENT CLUSTER

CLUSTER instrument (Gas) For repairs see Figure 67A

1шт.

29

G45357

CABLE

TACHOMETER CABLE ASSY., Includes: Ref. 30

1шт.

30

A24523

KIT

CABLE

1шт.

31

A36818

DRIVE

ASSY. - tachometer, Includes: Ref. 32 - 37

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING (Order A36818)

1шт.

33

A36522

GEAR WHEEL

GEAR - driven

1шт.

34

G46306

GEAR WHEEL

GEAR drive

1шт.

35

G46882

GASKET

cover

1шт.

36

G46307

COVER

1шт.

37

187-1108

SCREW - #8-32 x 3/8" pan hd.

3шт.

38

193-518

SCREW,SEMS, Pan Hd, #8-32 x 1"

- #8-32 x 1" pan hd.

3шт.

39

G46878

GASKET

- tach., Serial Range: drive-generator

1шт.
