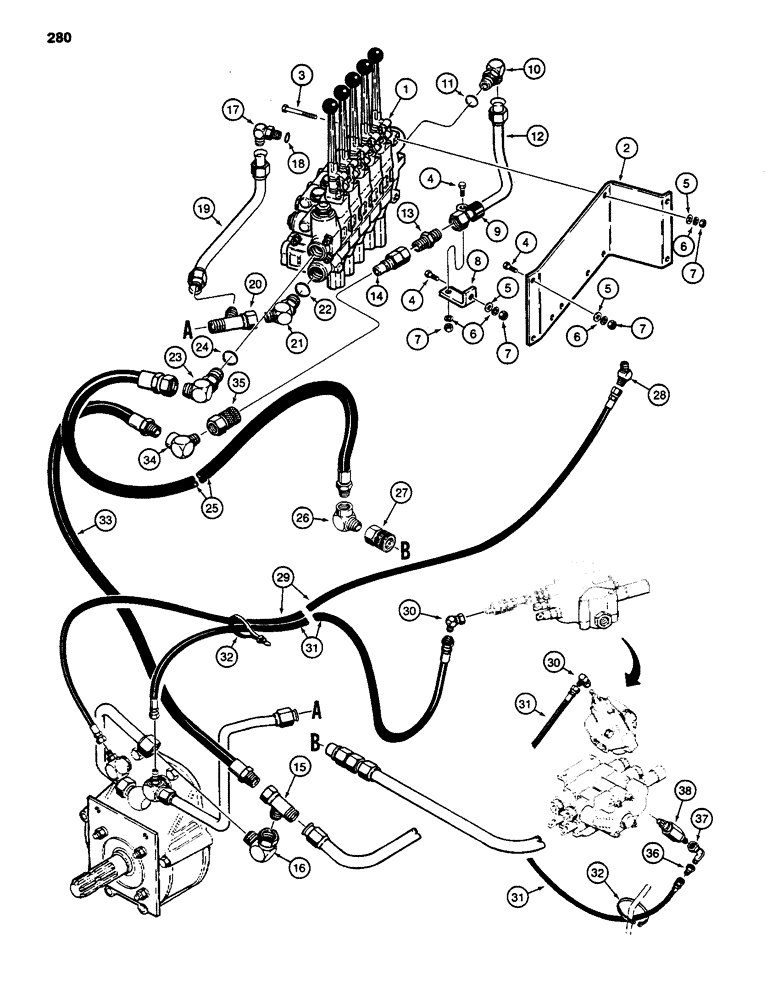

Запчасти Case 480LL (280) - PTO HYDRAULIC CIRCUIT AND CONTROL (35) - HYDRAULIC SYSTEMS

1

D122151

VALVE

CONTROL VALVE - PTO, parts list Figure 348

1шт.

2

D99470

PLATE

BRACKET - valve mounting

1шт.

3

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

3шт.

4

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

5

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

8шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

9шт.

7

9635082

NUT,5/16" - 18, Gr 5

9шт.

8

D65647

BRACKET

- clamp mounting

1шт.

9

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- tube

1шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, male, Incl. Ref. 11

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

12

D121543

TUBE

- return from valve

1шт.

13

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, male

1шт.

14

D52694

QUICK MALE COUPLING

QUICK DISCONNECT - coupling, male, parts list Figure 364

1шт.

15

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

- Return 37º, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

1шт.

16

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

return 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

1шт.

17

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, male, Incl. Ref. 18

1шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

19

D121535

TUBE

- work port to excess flow

1шт.

20

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

21

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, adjustable, male, Includes: Ref. 22

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

23

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, male, Incl. Ref. 24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

25

36232

HOSE ASSY.

HOSE - 32" (813 mm) long, control valve inlet

1шт.

26

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

27

D52800

COUPLING, QUICK, FEM

QUICK DISCONNECT - coupling, female, parts list Figure 364

1шт.

28

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree

1шт.

29

D99567

HOSE ASSY.

HOSE - drain

1шт.

30

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree, swivel, used on models without Case loader control valve

1шт.

31

D72021

HOSE

- 60" (1524 mm) long, PTO motor to relief valve

1шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1-2шт.

33

D49118

HOSE

- 33" (838 mm) long, return

1шт.

34

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

Street 90º, 3/4"-14 Female x 3/4"-14 Male

1шт.

35

D52800

COUPLING, QUICK, FEM

QUICK DISCONNECT - coupling, female, parts list Figure 364

1шт.

36

218-790

REDUCER,37 Degree, 3/8" x 1/4" Tube

- 3/8" x 1/4", used on models with Case loader control valve only

1шт.

37

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, swivel, used on models with Case loader control valve only

1шт.

38

G109313

VALVE, PRESSURE RELI

RELIEF VALVE ASSEMBLY - two stage, component parts are not serviced separately, used on models with Case loader control valve, replaces existing loader control main relief valve on models without PTO, see Figure 306 for existing relief valve

1шт.

For models without PTO, see Figure 306.

1шт.

N13216

VALVE

KIT - includes adapter, (2) O-rings, backup ring, and shim which service the hose end of the relief valve and are not serviced separately, also includes G110098 and G110099 kits

1шт.

G110098

KIT

- seal, services loader control valve end of relief valve, includes (2) )-rings and a backup ring which are not serviced separately

1шт.

G110099

SCREEN

KIT - filter screen, includes filter screen, screen retainer, and a snap ring which are not serviced separately

1шт.

The filter and snap ring included in this kit may be replaced without disassembling the cartridge. They do not have to be replaced unless system contamination is high.

1шт.
