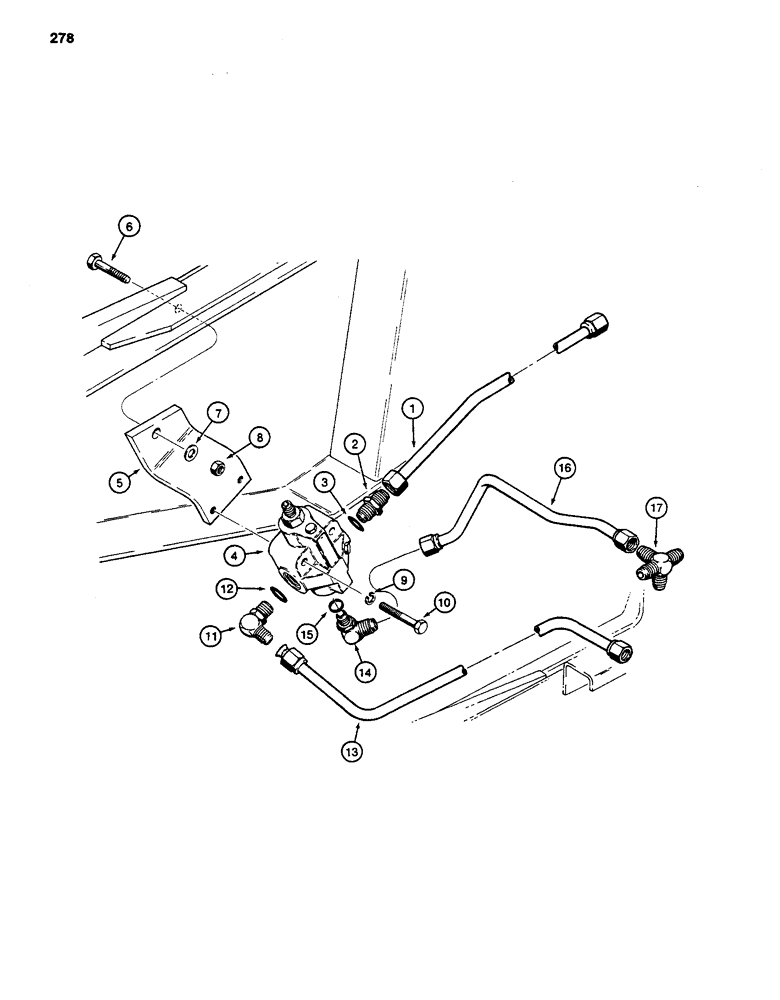

Запчасти Case 480LL (278) - PTO RELIEF VALVE AND LINES, USED WITH PTO AND TWO-LEVER LOADER CONTROL (35) - HYDRAULIC SYSTEMS

1

D72161

HYD TUBE,1" OD x 13.43, 38.51" L

TUBE - pressure, from pump to relief valve

1шт.

2

218-5046

HYD CONNECTOR,1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

4

D75308

VALVE

RELIEF VALVE - loader models with PTO, parts list Figure 341

1шт.

5

D72166

BRACKET

- relief mounting

1шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Bracket mounting Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

7

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

10

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Valve mounting Hex, 5/16"-18 x 2", G5

2шт.

11

218-5164

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

13

D93586

HYD TUBE,1" OD x 29.2, 10.3" L

TUBE - pressure, to loader valve

1шт.

14

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes: Ref. 15 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

16

D78655

TUBE

- return from relief valve

1шт.

17

D75275

TEE

FITTING - four-way, return lines

1шт.
