Запчасти Case 480LL (200) - TRANSAXLE DIFFERENTIAL LOCK, TRANSMISSION S/N 16270319 AND AFTER (27) - REAR AXLE SYSTEM

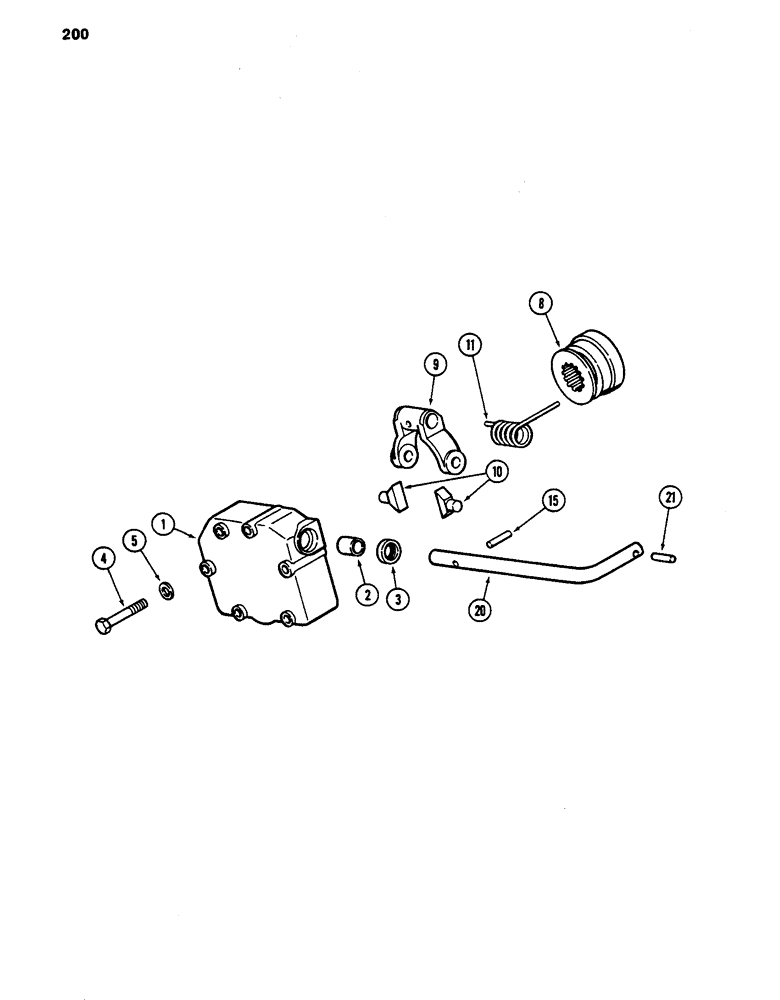

Схема запчастей Case 480LL - (200) - TRANSAXLE DIFFERENTIAL LOCK, TRANSMISSION S/N 16270319 AND AFTER (27) - REAR AXLE SYSTEM

Артикул

Название

Примечание

Количество

1

A168525

COVER ASSY

COVER ASSEMBLY - lock (on right brake housing) Includes: Ref. 2 and 3

1шт.

2

B15768

BUSHING

- cover

1шт.

3

G105700

OIL SEAL

- oil

1шт.

4

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

6шт.

5

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64 inch (10 x 22 x 2 mm)

6шт.

8

A156373

COLLAR

- differential lock

1шт.

9

A168524

LEVER

- collar throw-out

1шт.

10

A65101

FINGER

S -, Serial Range: lever-collar

2шт.

11

A156559

SPRING

- throw-out lever

1шт.

15

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

20

A157734

SHAFT

- actuating

1шт.

21

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

Выбрано товаров: 12
