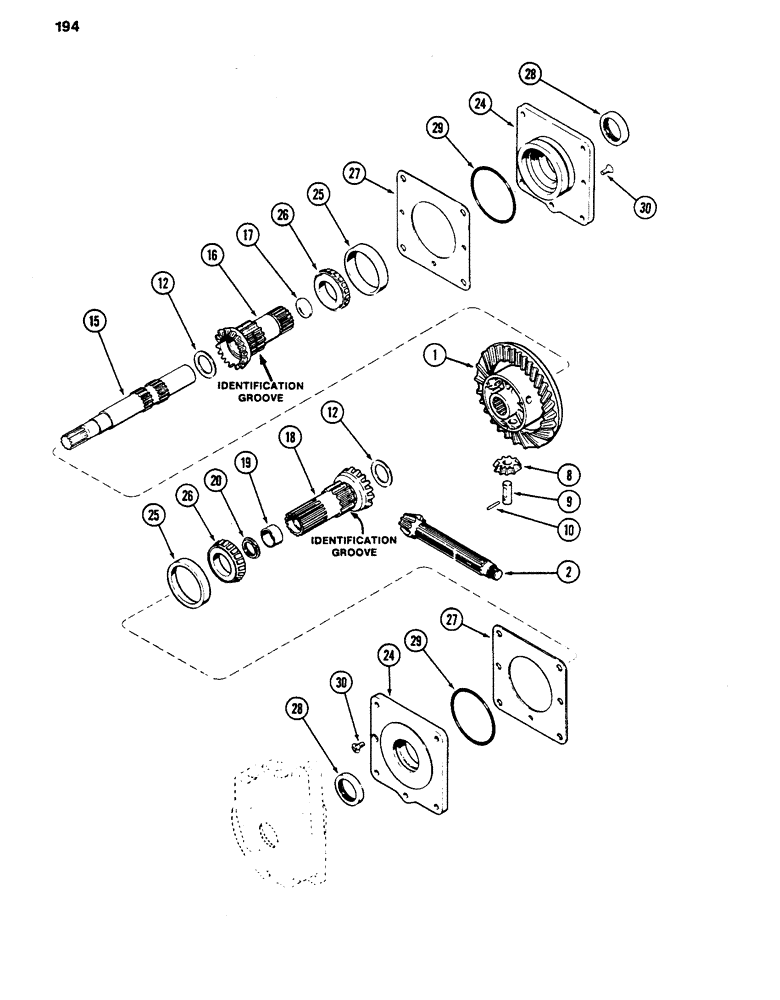

Запчасти Case 480LL (194) - DIFFERENTIAL, TRANSAXLE, PRIOR TO TRANSMISSION S/N 16270319 (27) - REAR AXLE SYSTEM

A51990

GEAR SET

PINION AND RING GEAR - (Matched set) Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring, with center wheels

1шт.

2

NSS

NOT SOLD SEPARAT

PINION - bevel, 12-1/4 inch long (311 mm)

1шт.

8

A142676

PINION

GEAR - pinion

3шт.

9

A146541

PIN

- pinion gear

3шт.

10

A140705

PIN

- groove, 3/16 x 2 inch

3шт.

12

A39012

WASHER,42.04mm ID x 60.2mm OD x 2.32mm Thk

- thrust, ring gear, 0.089 inch (2.26 mm)

1шт.

12

A39007

WASHER

- thrust, ring gear, 0.094 inch (2.40 mm)

1шт.

12

A39008

WASHER

- thrust, ring gear, 0.099 inch (2.52 mm)

1шт.

12

A39009

WASHER

- thrust, ring gear, 0.104 inch (2.66 mm)

1шт.

12

A39010

WASHER

- thrust, ring gear, 0.109 inch (2.78 mm)

1шт.

12

A39011

WASHER

- thrust, ring gear, 0.119 inch (3.04 mm)

1шт.

15

A144266

SHAFT

- cross

1шт.

16

A50990

GEAR

ASSEMBLY - side, left-hand with identification groove on spline gear, Includes: Ref. 17

1шт.

17

A29902

PLUG

- left hand side gear, 1-5/8 inch expansion (41 mm)

1шт.

18

A50989

SIDE ASSY.

GEAR ASSEMBLY - side, right-hand with identification groove on spline gear, Includes: Ref. 19

1шт.

19

A35921

BUSHING,34.89mm ID x 39.83mm OD x 20.65mm L

- right-hand side gear

1шт.

20

A49795

OIL SEAL

- oil, right-hand side gear

1шт.

24

A140869

HOUSING

CARRIER ASSEMBLY - side gear bearing, Includes: Ref. 25

2шт.

25

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear, 4-11/32 inch OD (110 mm)

1шт.

26

A30114

CONE

- bearing, side gear, 2-1/4 inch ID (57 mm)

2шт.

27

A39289

SHIM,.007" Thk

Bearing carrier (0.20 mm) .007" Thk

1шт.

27

G10719

SHIM,.005" Thk

Bearing carrier (0.14 mm) .005" Thk

1шт.

27

G10720

SHIM,.010" Thk

Bearing carrier (0.26 mm) .010" Thk

1шт.

28

A49796

OIL SEAL,53.4mm ID x 76.09mm OD x 11.94mm Thk

- oil, carrier

2шт.

29

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

- carrier seal

2шт.

30

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

- flat head slotted, 3/8-16 x 1 inch

2шт.
