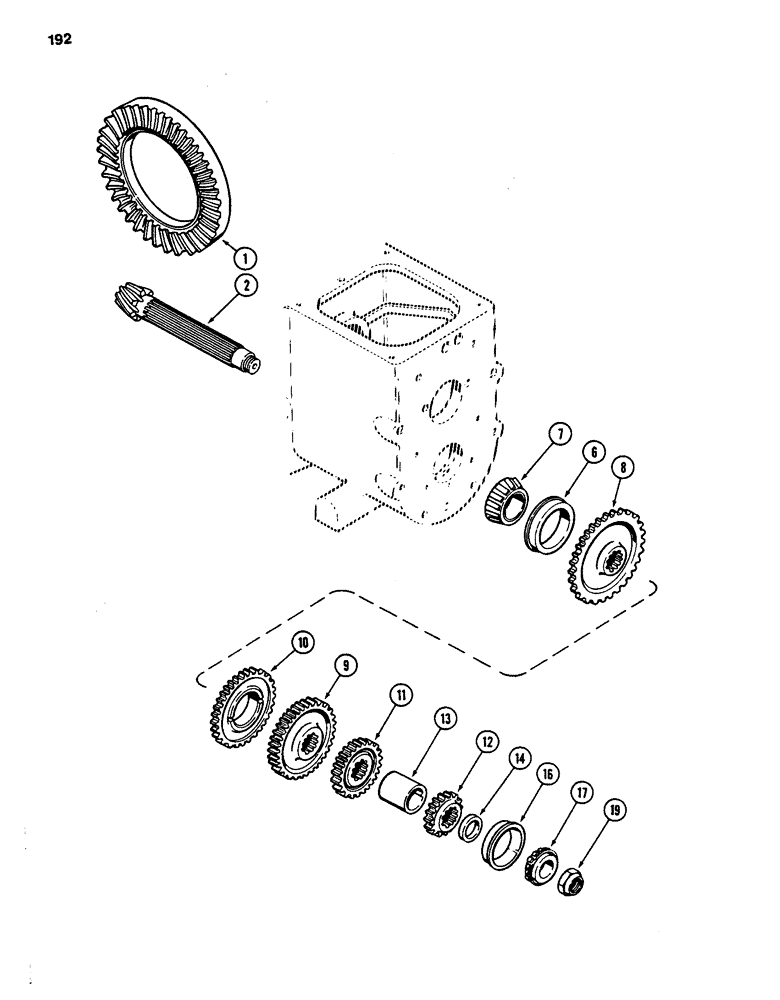

Запчасти Case 480LL (192) - TRANSAXLE COUNTERSHAFT, TRANSMISSION S/N 16270319 AND AFTER (27) - REAR AXLE SYSTEM

A168883

GEAR, BEVEL

PINION AND RING GEAR - transaxle (Matched set) Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring (Reference No. 168100)

1шт.

2

NSS

NOT SOLD SEPARAT

PINION - bevel (Reference No. A168824)

1шт.

6

A153753

ROLLER BEARING,88.92mm OD x 23.02mm W

CUP - bearing, rear, with snap ring, 3-1/2 inch OD (89 mm)

1шт.

7

R10276

ROLLER BEARING,1.686" ID x 1.1669"

CONE - bearing, rear, 1-5/8 inch ID (41 mm)

1шт.

8

A153751

GEAR

- first (47 external and 10 internal teeth)

1шт.

9

A51961

GEAR

- second (38 external and 10 internal teeth)

1шт.

10

A157304

GEAR

- oil slinger (38 external teeth) (Replaces A51962)

1шт.

11

A51960

GEAR

- third (28 external and 10 internal teeth)

1шт.

12

A154649

GEAR

- fourth (29 external and 10 internal teeth)

1шт.

13

A51959

SPACER

- third and fourth gears, 2-5/16 inch (59 mm) OD

1шт.

14

A179800

SPACER

- thrust 0.248 - 0.250 inch (6.30 - 6.35 mm)

1шт.

14

A179799

SPACER

- thrust, 0.245 - 0.243 inch (6.22 - 6.17 mm)

1шт.

14

A179798

SPACER

- thrust, 0.240 - 0.238 inch (6.10 - 6.05 mm)

1шт.

14

A179797

SPACER

- thrust, 0.235 - 0.233 inch (5.97 - 5.92 mm)

1шт.

14

A179796

SPACER

- thrust, 0.230 - 0.228 inch (5.84 - 5.79 mm)

1шт.

14

A179795

SPACER

- thrust, 0.225 - 0.223 inch (5.72 - 5.66 mm)

1шт.

14

A179794

SPACER

- thrust, 0.220 - 0.218 inch (5.59 - 5.54 mm)

1шт.

14

A179793

SPACER

- thrust, 0.215 - 0.213 inch (5.46 - 5.41 mm)

1шт.

14

A179792

SPACER

- thrust, 0.210 - 0.208 inch (5.33 - 5.28 mm)

1шт.

14

A179791

SPACER

- thrust, 0.205 - 0.203 inch (5.21 - 5.16 mm)

1шт.

14

A179790

SPACER

- thrust, 0.200 - 0.198 inch (5.08 - 5.03 mm)

1шт.

14

A179789

SPACER

- thrust, 0.195 - 0.193 inch (4.95 - 4.90 mm)

1шт.

14

A179788

SPACER

- thrust, 0.190 - 0.188 inch (4.83 - 4.78 mm)

1шт.

14

A179787

SPACER

- thrust, 0.185 - 0.183 inch (4.70 - 4.65 mm)

1шт.

14

A179786

SPACER

- thrust, 0.180 - 0.178 inch (4.57 - 4.52 mm)

1шт.

14

A179785

SPACER

- thrust, 0.175 - 0.173 inch (4.45 - 4.39 mm)

1шт.

14

A179784

SPACER

- thrust, 0.170 - 0.168 inch (4.32 - 4.27 mm)

1шт.

14

A179783

SPACER

- thrust, 0.165 - 0.163 inch (4.19 - 4.14 mm)

1шт.

16

A179719

ROLLER BEARING,76.1mm OD x 17.46mm W

CUP - bearing

1шт.

17

A153749

ROLLER BEARING,1.3125" ID x 0.875"

CONE - bearing, rear, 1-5/16 inch ID (33 mm)

1шт.

19

A156260

NUT

- adjusting, countershaft

1шт.
