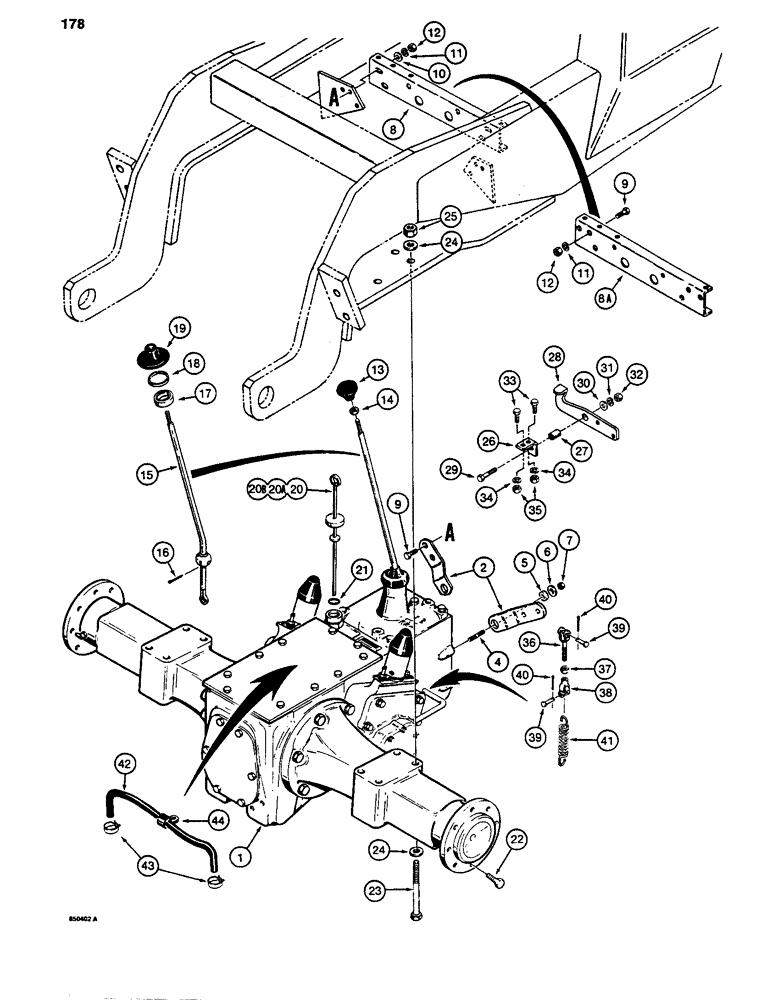

Запчасти Case 480LL (178) - TRANSAXLE AND DIFFERENTIAL LOCK, USED ON TRANSAXLE S/N 16270319 AND AFTER (27) - REAR AXLE SYSTEM

1

A179041

AXLE

TRANSAXLE - heavy duty, complete, parts list Figures 182 - 214

1шт.

2

D129942

SUPPORT

SUPPORT - transaxle, front

2шт.

4

A50237

STUD

STUD - 5/8" - 11 NC x 2-1/2", hardened

2шт.

5

D122706

BUSHING

BUSHING - support

2шт.

6

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened

2шт.

7

129-183

NUT,5/8"-11, G8

NUT, 5/8"-11, G8

2шт.

8

D86374

SUPPORT

BRACKET - crossmember, transaxle support, no longer used, order D129943 bracket

1шт.

8a

D129943

BRACKET

BRACKET - crossmember, transaxle support

1шт.

9

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

BOLT, Hex, 1/2"-13 x 1 3/4", G5

4шт.

10

195-533

WASHER,1/2", SAE

WASHER - flat, 1/2", plated, used with D86374 bracket only, Ref. 8

4шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

13

D69105

KNOB

KNOB - shift lever

1шт.

14

129-145

JAM NUT,Jam, 1/2"-13, G5

NUT, Jam, 1/2"-13, G5

1шт.

15

A150902

LEVER

SHIFT LEVER - transaxle, Includes: Ref. 16

1шт.

16

A156515

PIN

GROOVE PIN - 1/8" x 1-1/4"

1шт.

17

A7923

SEAT

SEAT - shift lever

1шт.

18

A26836

RING, SNAP

RING SNAP RETAINING RING - seat

1шт.

19

A26956

DUST CAP

BOOT - shift lever

1шт.

20

A154967

DIPSTICK

DIPSTICK - transaxle, 14-1/2" total length, used before tractor PIN 17001245

1шт.

20a

D135008

DIPSTICK

DIPSTICK - transaxle, 14-1/2" total length, used on tractor PIN 17001245 and after, no longer used, order D136231 dipstick, Includes: Ref. 21

1шт.

20b

D136231

DIPSTICK

DIPSTICK - transaxle, 15-5/16" total length, used on tractor PIN 17001245 and after, Includes: Ref. 21

1шт.

21

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

O-RING - all dipsticks

1шт.

22

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

WHEEL BOLT - Lug, Rear

16шт.

23

113-732

BOLT,Hex, 3/4" - 10 x 8", Gr 5

BOLT - hex head, 3/4" - 10 NC x 8", plated

8шт.

24

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

WASHER - flat, hardened

16шт.

25

129-108

NUT,3/4"-10, G5

NUT, 3/4"-10, G5

8шт.

26

D129482

STRIP

BRACKET - mounting, differential lock pedal, bolts to floor plate

1шт.

27

D122241

SPACER

SPACER - pedal

1шт.

28

D124890

PEDAL

PEDAL - differential lock

1шт.

29

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

BOLT, Hex, 1/2"-13 x 2", G5

1шт.

30

D64050

WASHER

WASHER - flat, hardened

1шт.

31

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

32

129-105

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

33

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

36

D58332

ROD

ROD - differential lock

1шт.

37

129-123

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

1шт.

38

213-41

ADJUSTABLE CLEVIS,3/8"-24

ADJUSTABLE CLEVIS, , metal, plated, replaces fiberglass clevis on some models 3/8"-24

1шт.

39

141-54

CLEVIS PIN,3/8" x 1 1/16"

CLEVIS PIN, , differential lock rod 3/8" x 1 1/16"

2шт.

40

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

41

R29843

SPRING

SPRING - return

1шт.

42

D134065

HOSE

HOSE - 1/4" (6 mm) ID x 21-5/8" (550 mm) long, vent, brake actuator, cut to required length from D134170 bulk hose, see below

1шт.

43

F64936

CLAMP

CLAMP - vent hose

2шт.

44

49838

CLAMP

CLAMP - P-type, uses existing transaxle cover plate mounting hardware

1шт.

D134170

HOSE,6.35 mm ID x 1580.00 mm, SAE 30R6 or SAE 30R7 PER SAE J30

1шт.
