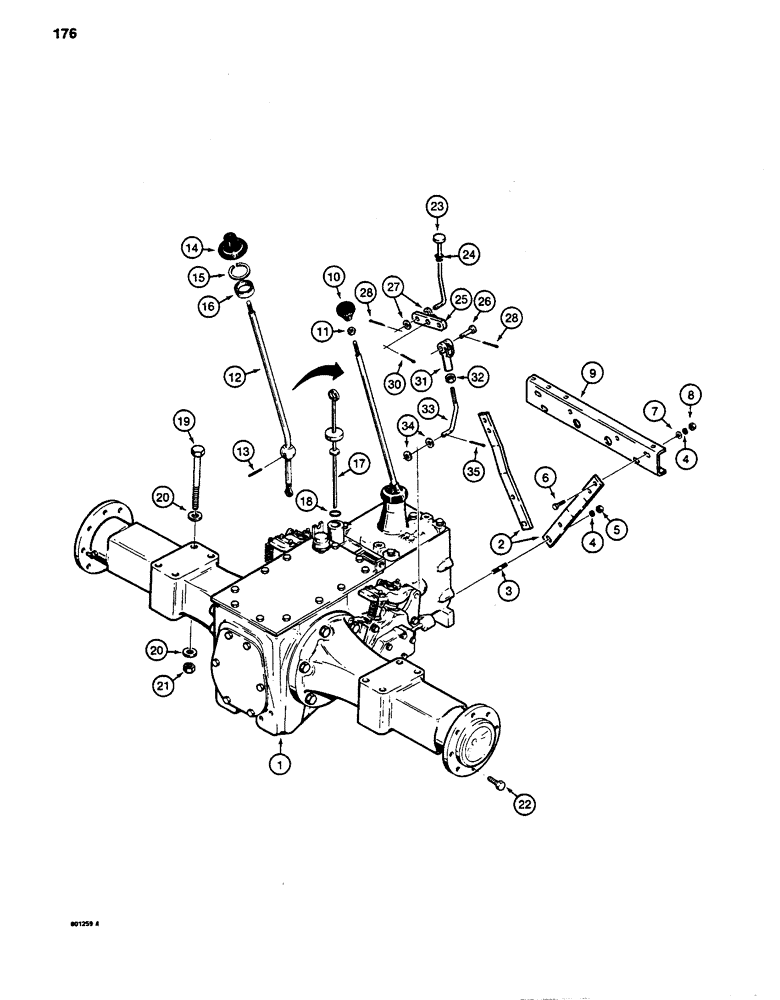

Запчасти Case 480LL (176) - TRANSAXLE AND DIFFERENTIAL LOCK, USED BEFORE TRANSAXLE S/N 16270319 (27) - REAR AXLE SYSTEM

1

A154249

TRANSAXLE - complete, for service must order individual components, parts list Figures 182 - 214

1шт.

2

D99123

SUPPORT

- transaxle, front

2шт.

3

D69763

STUD

- 1/2" - 20 NF

4шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

5

129-125

NUT,1/2"-20, G5

4шт.

6

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

7

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

6шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

9

D86374

SUPPORT

BRACKET - crossmember, transaxle support

1шт.

10

D69105

KNOB

- shift lever

1шт.

11

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

12

A150902

LEVER

SHIFT LEVER - transaxle, Includes: Ref. 13

1шт.

13

A156515

PIN

GROOVE PIN - 1/8" x 1-1/4"

1шт.

14

A26956

DUST CAP

BOOT - shift lever

1шт.

15

A26836

RING, SNAP

RETAINING RING - seat

1шт.

16

A7923

SEAT

- shift lever

1шт.

17

A154967

DIPSTICK

- transaxle, Includes: Ref. 18

1шт.

18

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- dipstick

1шт.

19

113-732

BOLT,Hex, 3/4" - 10 x 8", Gr 5

- hex head, 3/4" - 10 NC x 8", plated

8шт.

20

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened

16шт.

21

129-108

NUT,3/4"-10, G5

8шт.

22

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

- Lug, Rear

16шт.

23

D99185

ROD

- foot actuated differential lock

1шт.

24

353-462

BUSHING,12.7mm ID x 15.88mm OD x mm L

- snap, floor plate

1шт.

25

D99187

ARM

LINK - pivot

1шт.

26

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

27

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

28

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

30

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

31

213-41

ADJUSTABLE CLEVIS,3/8"-24

metal, plated, replaces fiberglass clevis on some models 3/8"-24

1шт.

32

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, jam, 3/8" - 24 NF, plated

1шт.

33

D99194

LINK

ROD - lower

1шт.

34

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

35

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.
