(538) - ROPS CANOPY, 480LL MODELS ONLY

Запчасти Case 480LL (538) - ROPS CANOPY, 480LL MODELS ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

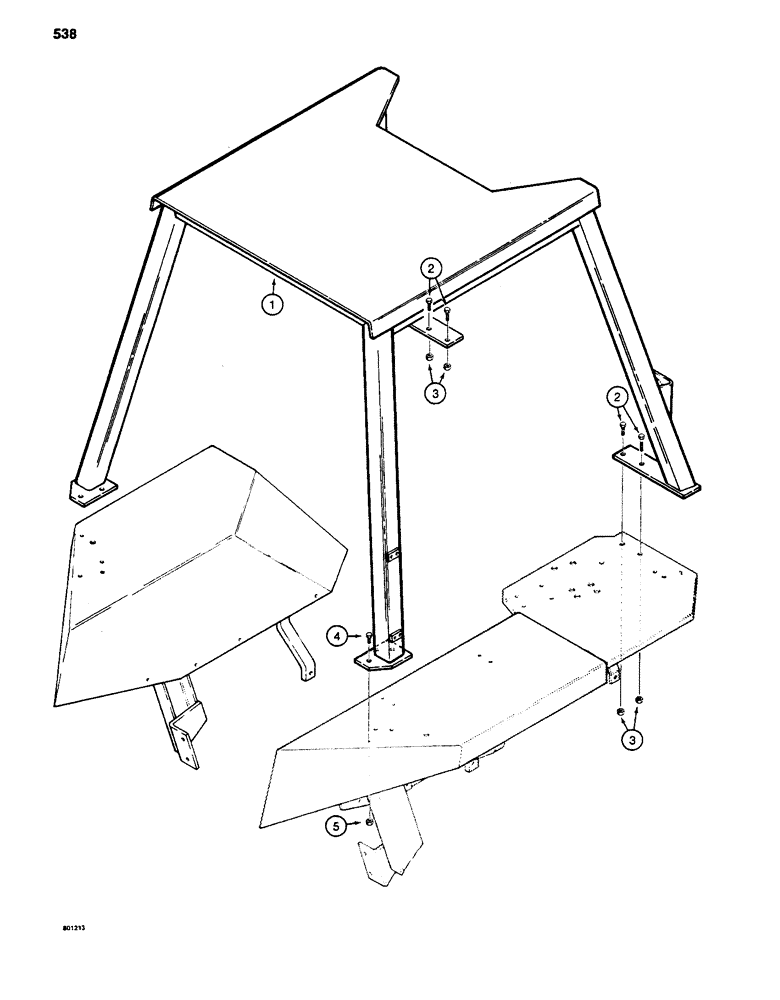

Схема запчастей Case 480LL - (538) - ROPS CANOPY, 480LL MODELS ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

ROPS CANOPY - machinery item, see Figure 2 for ordering

1шт.

2

113-2619

BOLT,Hex, 5/8" - 11 x 2", Gr 8

4шт.

3

129-183

NUT,5/8"-11, G8

4шт.

4

113-2418

BOLT

- hex head, 1/2" - 13 NC x 1-3/4", grade 8, plated

4шт.

5

129-184

NUT,1/2"-13, G8

- hex, 1/2" - 13 NC, grade 8, plated

4шт.
