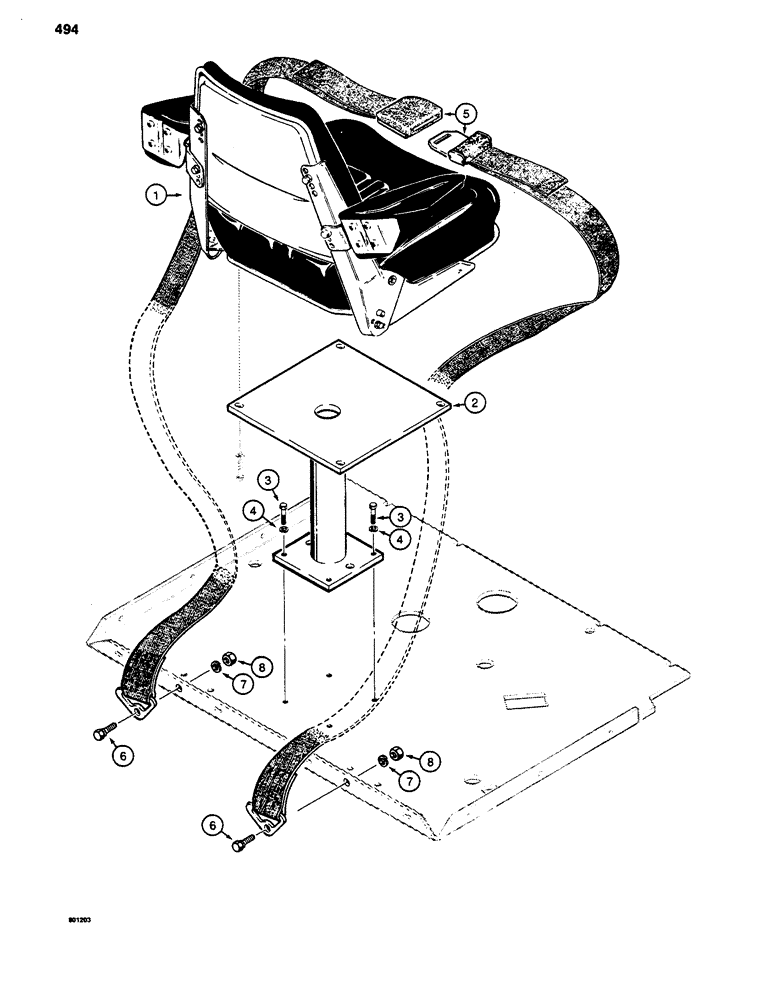

Запчасти Case 480LL (494) - SEAT MOUNTING PARTS AND SEAT BELT, 480LL MODELS ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

REF

INSTRUCTION

SEAT ASSEMBLY - operators, see Figure 496, 498 or 500 for correct seat

1шт.

2

D99301

POST

- seat mounting

1шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

D83760

SAFETY BELT

SEAT BELT - 3" (76 mm) wide

1шт.

6

F42236

STEP BOLT

BOLT - shoulder, 7/16" - 20 NF x 1-1/4", plated

2шт.

7

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

8

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated

2шт.
