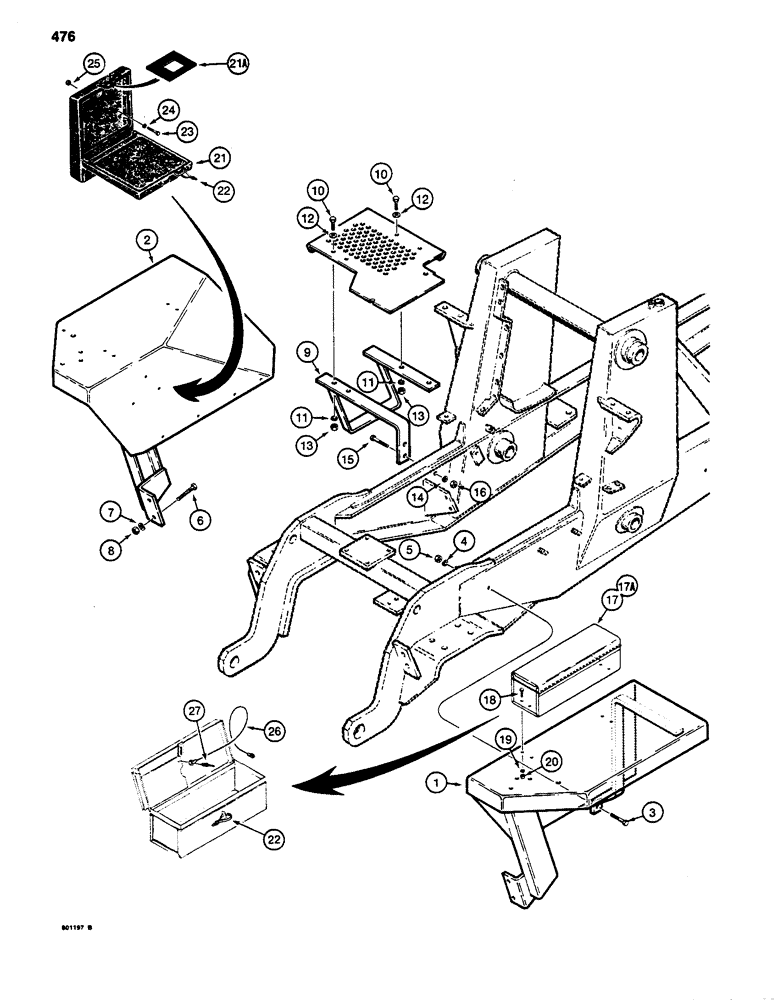

Запчасти Case 480LL (476) - FENDERS, STEP AND TOOL BOX, 480LL MODELS ONLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

D99302

FENDER

- rear, right-hand

1шт.

2

D131407

FENDER

- rear, left-hand, includes decals, see Figures 542 and 544, Refs. 17, 28, and 30

1шт.

3

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

1шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

6

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8" - 11 NC x 2-1/4", grade 8

4шт.

7

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

129-183

NUT,5/8"-11, G8

4шт.

9

D76746

STEP

- operators compartment

1шт.

10

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2-4шт.

15

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

16

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

17

D120453

TOOL

BOX - tractor, includes internal clip for operators manual, black, if used

1шт.

17a

D124090

BOX, TOOL

TOOL BOX - tractor, includes internal clip for operators manual, brown, if used

1шт.

18

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , If used 1/4"

4шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

21

R38893

CASE

MANUAL BOX - operators, if used, for models with box mounted on seat, see Figure 492, Includes: Ref. 21A

1шт.

21a

N7120

LATCH

- manual box

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

25

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

26

R46465

CABLE,36mm L

CORD - manual retaining

1шт.

27

151-522

RIVET,Pop, 3/16" x .575"

POP RIVET - 3/16"

1шт.
