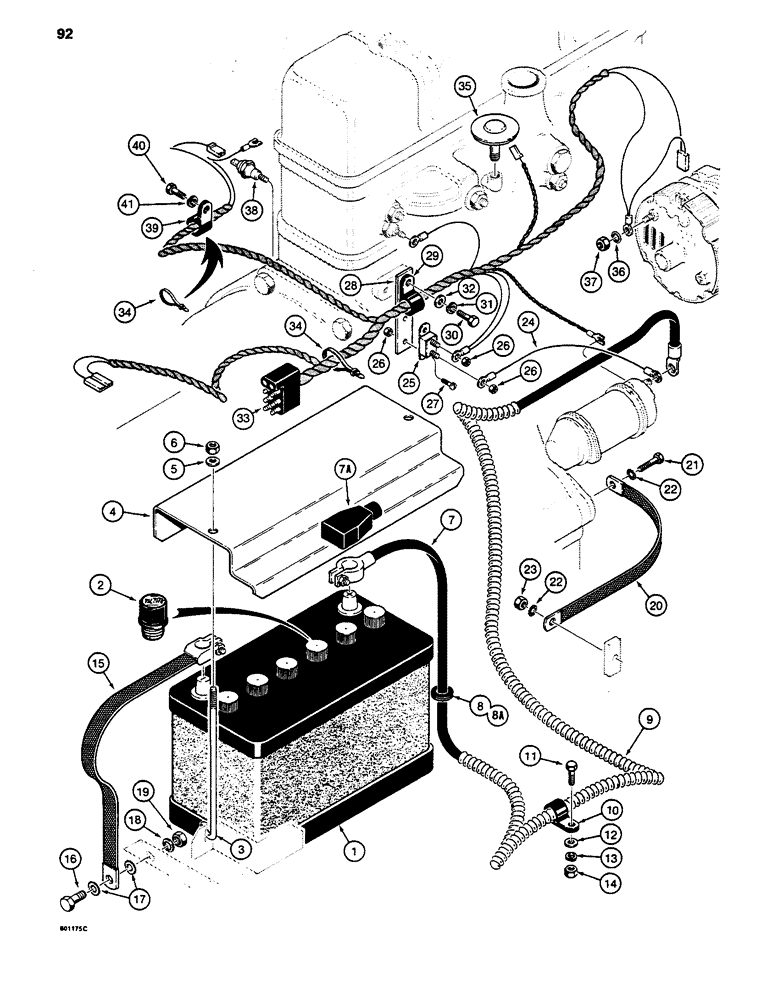

Запчасти Case 480LL (092) - BATTERY AND ENGINE ELECTRICAL CIRCUIT, 480LL MODELS ONLY (55) - ELECTRICAL SYSTEMS

1

BHC30

BATTERY, DRY

BATTERY - 12 volt, service replacement, maintenance free, battery mounts to floor plate, see Figure 488 Ref. 30 for floor plate, replaces battery which used (6) A60553 nonspill caps

1шт.

2

A60553

CAP

- battery, nonspill, if used

6шт.

3

D49723

BOLT

- battery hold down

2шт.

4

D99454

COVER

- battery

1шт.

5

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

6

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

7

D134162

CABLE

- battery, positive, may replace a cable without a boot used in production on some models, Includes: Ref. 7A

1шт.

7a

A27072

COVER

BOOT - battery cable

1шт.

8

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- floor plate, 1-1/2" ID x 2-1/8" OD x 1/2" thick, if used

1шт.

8a

D73137

GROMMET

- floor plate, 1-1/4" ID x 1-7/8" OD x 3/8" thick, if used

1шт.

9

D99461

LOOM

PROTECTOR - rubber, positive cable

1шт.

10

R21385

CLAMP

- battery cable

1шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

For brake line clamp see Figure 218 Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

12

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

15

D83485

CABLE,300mm L

- negative, battery ground

1шт.

16

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

17

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

19

9635082

NUT,5/16" - 18, Gr 5

1шт.

20

D73383

STRAP

CABLE - starter to frame, ground

1шт.

21

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

1шт.

22

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

2шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , For bolt and steering tube clamps, see Figure 136 3/8"-16, G5

1шт.

24

D79476

ELECTRICAL WIRE

WIRE - starter to circuit breaker

1шт.

25

A22877

BREAKER,40A

CIRCUIT BREAKER - 40 amperes

1шт.

26

193-1000

NUT,Keps, w/LW,#10-32

AND LOCK WASHER - No. 10 - 32 NF, plated

4шт.

27

182-145

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 1/2"

2шт.

28

D74343

PLATE

STRAP - circuit breaker mounting

1шт.

29

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- harness mounting

1шт.

30

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

195-102

WASHER,1/4"

- flat, , plated 1/4"

1шт.

33

D99755

HARNESS

- engine

1шт.

The engine harness grounds to the starter on models without a neutral start switch relay in the main harness; on models with a neutral start switch relay in the main harness, the engine harness starter ground has been moved to the lower circuit breaker mounting bolt to ground the neutral start switch. See Figure 96 for main harness and relay and Figure 98 for neutral start converskion kit.

1шт.

34

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

35

REF

INSTRUCTION

SENDER - air cleaner restriction indicator, see Figure 16 for air cleaner and connecting parts

1шт.

36

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

37

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1, plated

1шт.

38

A162297

SWITCH

SENDER - oil pressure gauge

1шт.

39

A38799

CLAMP

- harness, can be replaced by Ref. 34

1шт.

40

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

41

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
