Запчасти Case 480F LL (6-35A) - 109935A1 FRONT DRIVE AXLE - CARRARO 710 N0.126809, PLANETARY (06) - POWER TRAIN

109935A1

AXLE

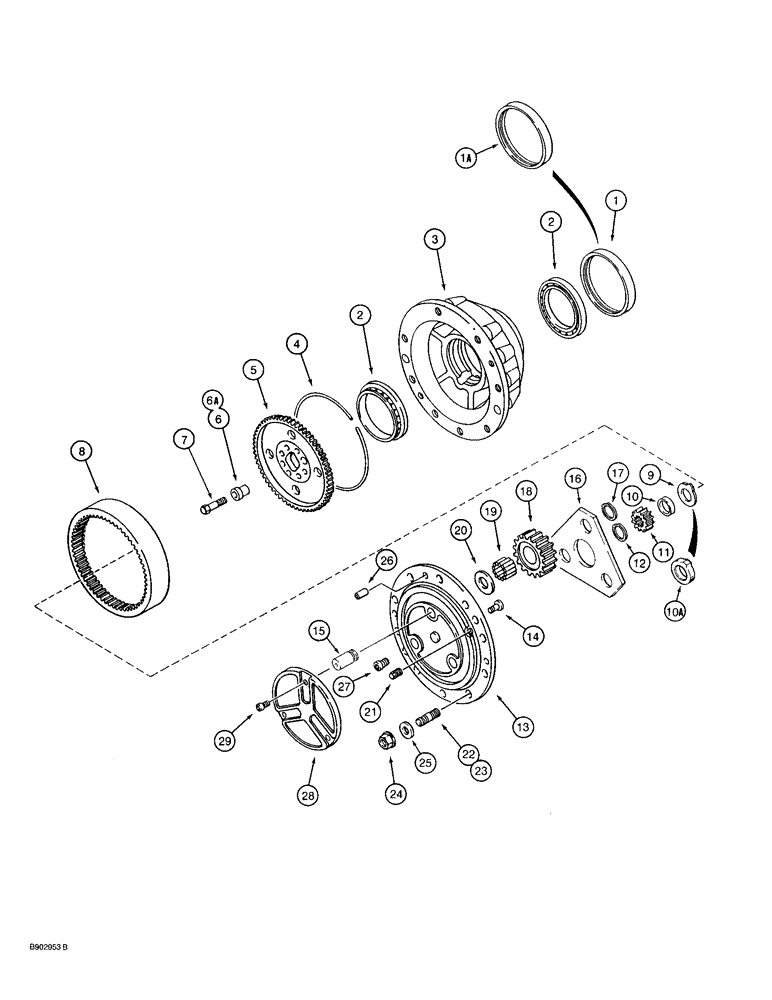

ASSEMBLY - front drive, Carraro 710 No. 126809, parts list Figures 5-06 and 6-28 - 6-38, order components Ref. 1 - 29 on this figure

1шт.

D149792 is Carraro number 126809. It is a component of production axle P/N 109935A1, which includes the D149792 axle, plus steering cylinders and plumbing. The P/N 109935A1 is Carraro number 128752.

1шт.

1

D149680

SEAL

- oil, hub, replaced by 1349265C1 Ref. 1A

2шт.

1a

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

- oil, hub, 149 x 176 x 16 (replaces D149680 seal)

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING - ball, hub

4шт.

3

K395123

HUB

- wheel attaching

2шт.

4

H437679

RING, SNAP

RING - lock

2шт.

5

H437678

RING, FLYWHEEL

HUB - ring gear

2шт.

6

107071A1

BUSHING

- Centering, 20 mm OD, Replaces K395105)

6шт.

REF#6 AND 6A---PER PRINT ON HUB RING GEAR---H437678---QTY SHOULD BE 7 AND 1 FOR PART NUMBERS 107071A1 AND 107072A1, RESPECTIVELY.JCL 9/10/98

1шт.

6a

107072A1

CENTERING RING

BUSHING - 24 mm OD, centering (replaces K395104 bushing)

2шт.

REF#6 AND 6A---PER PRINT ON HUB RING GEAR---H437678---QTY SHOULD BE 7 AND 1 FOR PART NUMBERS 107071A1 AND 107072A1, RESPECTIVELY.JCL 9/10/98

1шт.

7

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Special Hex, M14 x 65, Cl 10.9

8шт.

8

H437677

GEAR, RING

GEAR - ring, planetary

2шт.

9

K395115

WASHER

- tab locking, special, used with Ref.10 spacer, if used

2шт.

10

K395121

SPACER

- pinion gear, used with Ref. 9 washer, if used, order 107073A1 spacer, Ref. 10A

2шт.

10a

107073A1

WASHER,30mm ID x 49mm OD x 15mm H

SPACER - pinion gear, one piece, replaces Ref. 9 and 10 on some models

2шт.

11

K395114

GEAR

- pinion, axle shaft

2шт.

12

K261897

RING, SNAP

RING - snap, pinion gear retaining

2шт.

D150218

PLANETARY REDUCER

PLANETARY ASSEMBLY - front drive axle, no longer available, order component parts separately Ref. 13 - 21

2шт.

D150217

PINION CARRIER

CARRIER ASSEMBLY - planetary, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

CARRIER - planetary

1шт.

14

K395093

HEADED PIN,12mm OD x 15mm L

PIN - lock, planetary carrier

1шт.

15

K395124

SHAFT

- pinion gear

3шт.

16

K395122

PLATE

WASHER - thrust, pinion gear, inner

1шт.

17

800-1134

SNAP RING,M34, Ext

RING, SNAP, M34, Ext

3шт.

18

K395110

GEAR

- pinion, planetary

3шт.

19

119685A1

NEEDLE BEARING

BEARING - needle, planetary gear, replaces K395092

90шт.

Ref #19 package quantity 1 contains 10 bearings

1шт.

20

K395091

THRUST WASHER

WASHER, THRUST, Pinion gear, Outer

3шт.

21

A156873

PLUG, DRAIN,M22 x 1.5

1шт.

22

K260218

STUD

- special, without collar

12шт.

23

N13515

STUD

- special, with collar, for recessed bolt holes

4шт.

24

K395089

WHEEL NUT

- hex, special, wheel mounting, purchase separately

16шт.

25

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, purchase separately

16шт.

26

K395094

DOWEL,M18 x 36

Pin, Planetary cover M18 x 36

4шт.

27

K395029

SCREW

- special, planetary cover

4шт.

28

K395135

COVER

PLATE - planetary cover

2шт.

REF #28 AND #29. SEE ECN H93SR54. EFFECTIVE WITH AXLE SERIAL NUMBERS WA1368 AND WP1368, CARRARO REMOVED COVER AND SCREWS FROM PLANETARIES AND REPLACED THE SCREWS WITH PLUGS. THE NEW PLUGS CAN BE USED PRIOR TO THESE AXLE S/N BREAKS. PLUG IS 138866A1 (6 PER). ALSO EFF. WITH AXLE S/N WA1219 AND WP1218, THE COMBINATION OF (2) 892-11006 6 mm LOCKWASHERS AND (2) 614-6012 BOLTS (NOT SHOWN) WERE REPLACED BY 2 PCS OF 112486A1 SELF-LOCKING BOLT. ALL OLD PARTS ARE RETAINED FOR SERVICE FOR MACHINES WITH AXLES BUILT P

1шт.

Ref. parts 28, 29. axle assy. 109935A1 may or may not use K395135 and 905876R1. If cover is not used item 15 K395093 may or may not be drilled and taped. If taped it can be plugged with d150977 per Rob Prasse. jhw 12-97

1шт.

29

905876R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 10.9

Special, Planetary cover plate, (Replaces K395082 screw) Hex Soc Flat Hd, M8 x 20, 10.9

6шт.

REF #28 AND #29. SEE ECN H93SR54. EFFECTIVE WITH AXLE SERIAL NUMBERS WA1368 AND WP1368, CARRARO REMOVED COVER AND SCREWS FROM PLANETARIES AND REPLACED THE SCREWS WITH PLUGS. THE NEW PLUGS CAN BE USED PRIOR TO THESE AXLE S/N BREAKS. PLUG IS 138866A1 (6 PER). ALSO EFF. WITH AXLE S/N WA1219 AND WP1218, THE COMBINATION OF (2) 892-11006 6 mm LOCKWASHERS AND (2) 614-6012 BOLTS (NOT SHOWN) WERE REPLACED BY 2 PCS OF 112486A1 SELF-LOCKING BOLT. ALL OLD PARTS ARE RETAINED FOR SERVICE FOR MACHINES WITH AXLES BUILT P

1шт.

Ref. parts 28, 29. axle assy. 109935A1 may or may not use K395135 and 905876R1. If cover is not used item 15 K395093 may or may not be drilled and taped. If taped it can be plugged with d150977 per Rob Prasse. jhw 12-97

1шт.

B17575

FLUID

SEALANT - 3 oz (89 ml) of sealant in a tube, planetary cover to hub, not shown, replaces M20704

1шт.
