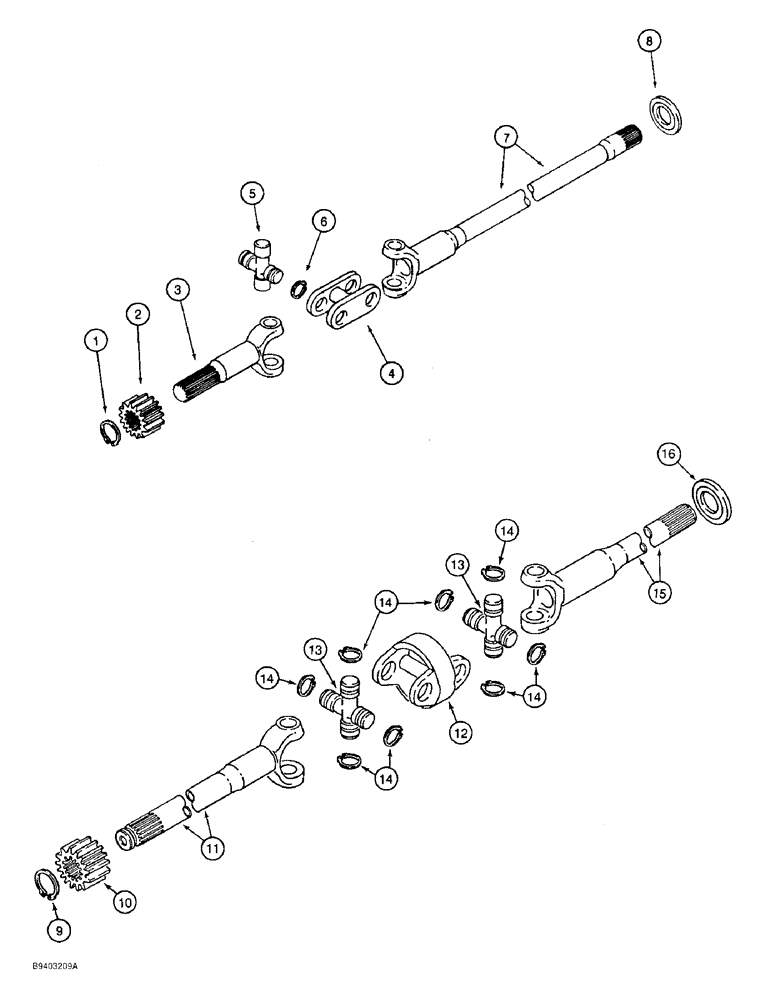

Запчасти Case 480F LL (6-32) - FRONT DRIVE AXLE, AXLE SHAFTS (06) - POWER TRAIN

D127440

AXLE

ASSEMBLY - front drive, Carraro 710 No. 118562, parts list Figures 6-28 through 6-38, Includes: Ref. 1 - 8 on this figure

1шт.

1

K261897

RING, SNAP

RING - snap, axle shaft

2шт.

2

K395114

GEAR

- pinion, axle shaft

2шт.

3

N13510

SHAFT

- axle, wheel side, short

2шт.

4

K262199

FORK

FLANGE - connecting

2шт.

5

K262161

U-JOINT SPIDER

JOINT - universal, axle shaft

4шт.

6

K965336

RING, SNAP

RING - snap, universal joint

16шт.

7

N13509

SHAFT

- axle, differential side, long

2шт.

8

1966164C1

OIL SEAL

SEAL - oil, axle shaft, replaces K395103

2шт.

109935A1

AXLE

ASSEMBLY - front drive, Carraro 710 No. 126809, parts list Figures 5-06 and 6-28 - 6-38, order components Ref. 9 - 16 on this figure

1шт.

D149792 is Carraro number 126809. It is a component of production axle P/N 109935A1, which includes the D149792 axle, plus steering cylinders and plumbing. The P/N 109935A1 is Carraro number 128752.

1шт.

9

K261897

RING, SNAP

RING - snap, axle shaft

2шт.

10

K395114

GEAR

- pinion, axle shaft

2шт.

11

N14409

SHAFT

- axle, wheel side, short

2шт.

12

N14412

BODY

- connecting

2шт.

13

N14411

U-JOINT SPIDER

JOINT - universal, axle shaft, cross

4шт.

14

N14410

RING

- snap, universal joint

16шт.

15

D149735

SHAFT

- axle, differential side, long

2шт.

16

1966164C1

OIL SEAL

SEAL - oil, axle shaft, replaces K395103

2шт.
