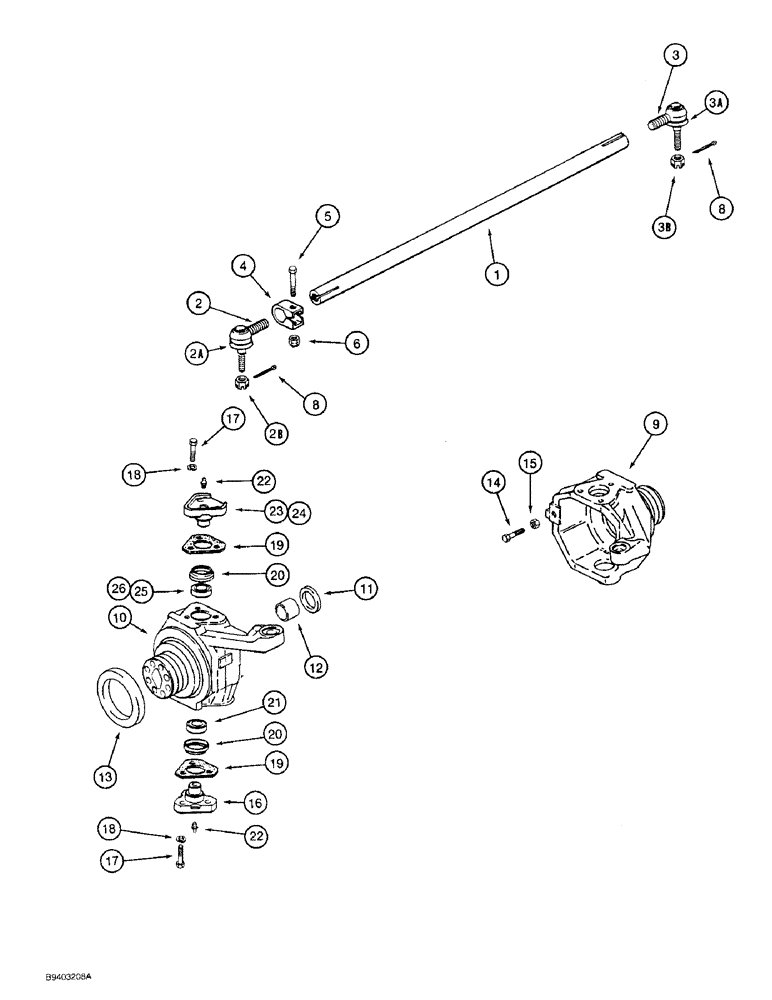

Запчасти Case 480F LL (6-30) - FRONT DRIVE AXLE, TIE ROD AND SWIVEL HOUSING (06) - POWER TRAIN

D127440

AXLE

ASSEMBLY - front drive, Carraro 710 No. 118562, replaced by 109935A1, parts list Figures 6-28 - 6-38, Includes: Ref. 1 - 26 on this figure

1шт.

109935A1

AXLE

ASSEBMLY - front drive, Carraro 710 No. 126809, parts list Figures 5-06 and 6-28 - 6-38, order components Ref. 1 - 26 on this figure

1шт.

D149792 is Carraro number 126809. It is a component of production axle P/N 109935A1, which includes the D149792 axle, plus steering cylinders and plumbing. The P/N 109935A1 is Carraro number 128752.

1шт.

1

N13615

ROD

- tie, steering

1шт.

K260254

BALL JOINT

JOINT - ball, left-hand, Includes: Ref. 2 - 2B

1шт.

P/N K260254 and K260250 Carraro has made a change on these Ball Joints. In parts books and print, this shows a hole where a cotter pin goes thru to hold on a nut. This hole has been removed and no longer requires the pin. The ball Joints received without a hole requires a new locking nut P/N 102894A1.

1шт.

P/N K260254, per print, is the right hand not left hand as stated in the catalog.

1шт.

2

NSS

NOT SOLD SEPARAT

JOINT - ball, left-hand

1шт.

2a

NSS

NOT SOLD SEPARAT

BOOT - ball joint

1шт.

2b

K956938

SLOTTED NUT

- hex, slotted, ball joint

1шт.

K260250

BALL JOINT

JOINT - ball, right-hand, Includes: Ref. 3 - 3B

1шт.

3

NSS

NOT SOLD SEPARAT

JOINT - ball, right-hand

1шт.

3a

NSS

NOT SOLD SEPARAT

BOOT - ball joint

1шт.

3b

K956938

SLOTTED NUT

- hex, slotted, ball joint

1шт.

4

N8904

CLAMP

- tie rod

2шт.

5

N8905

BOLT

- hex head, special

2шт.

6

K260157

NUT

- hex, self-locking, special

2шт.

8

733-4032

COTTER PIN,M4 x 32

PIN, SPLIT (COTTER), M4 x 32

2шт.

9

N13614

HOUSING

- swivel, right-hand

1шт.

10

N13613

HOUSING

- swivel, left-hand

1шт.

11

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

- oil, swivel housing

2шт.

12

1967535C1

BUSHING

- swivel housing

2шт.

13

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

RING - sealing, swivel housing, 149 x 176 x 16, if used, replaces K395138

2шт.

14

K395032

BOLT

- steering stop, 12 mm, if used

4шт.

14

F3333050

SCREW

BOLT - steering stop, 14 mm, if used, replaces D142907

4шт.

15

K965369

JAM NUT

- hex, 12 mm, if used

4шт.

15

K395148

NUT

- hex, 14 mm, if used

4шт.

16

N13504

PIVOT

CAP - swivel housing, lower

2шт.

17

D150214

BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9

BOLT - hex head, 14 mm-2 x 35 mm, special

12шт.

18

K965248

WASHER

- lock, 14 mm, special, if used

12шт.

19

K395036

SHIM,52mm ID x 116mm OD x 0.1mm Thk

Swivel cap 0.10mm Thk

1шт.

19

K395037

SHIM,52mm ID x 98mm OD x 0.19mm Thk

Swivel cap 0.19mm Thk

1шт.

19

K395038

SHIM,52mm ID x 98mm OD x 0.35mm Thk

Swivel cap 0.35mm Thk

1шт.

20

K395039

SEAL

- bearing

4шт.

21

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

BEARING - roller, swivel cap, lower

2шт.

22

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, , Swivel cap, Upper M6 x 1, 16mm lg

4шт.

23

N13504

PIVOT

CAP - swivel housing, upper, prior to axle s/n 3601 on D127440 axle only

2шт.

24

N14376

PIN

CAP - swivel housing, upper, axle s/n 3601 and after on D127440 axle and on all 109935A1 axles

2шт.

25

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

BEARING - roller, swivel cap, upper, prior to axle s/n 3601 on D127440 axle only

2шт.

26

N14372

BUSHING

BEARING - roller, swivel cap, upper, axle s/n 3601 and after on D127440 axle and on all 109935A1 axles

2шт.
