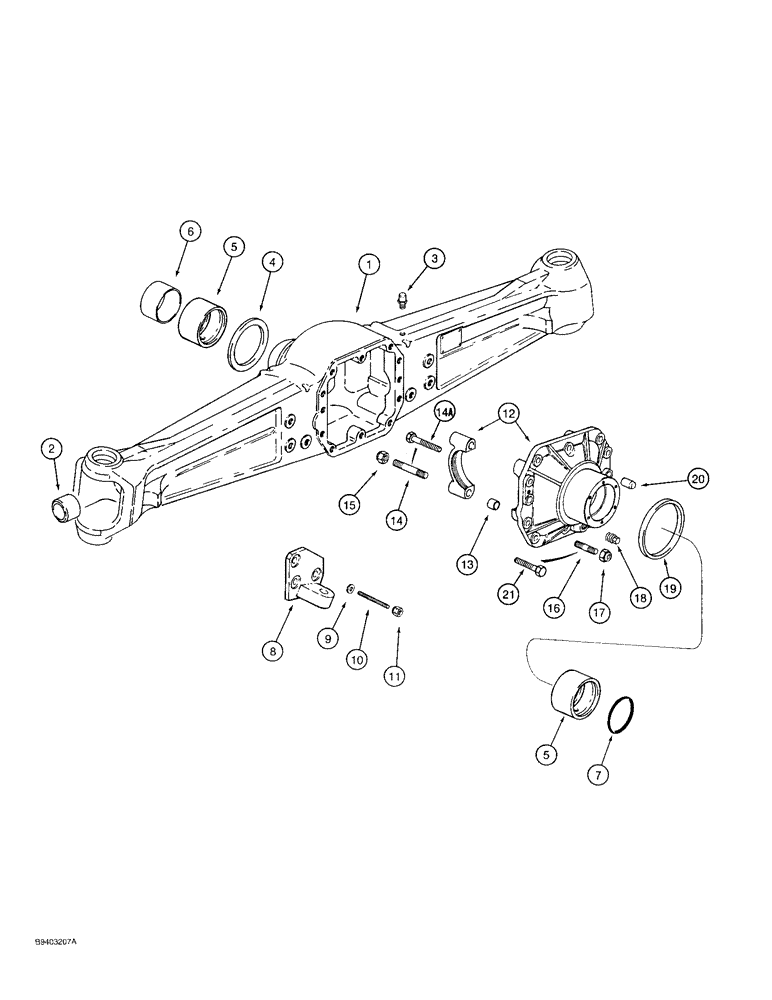

Запчасти Case 480F LL (6-28) - FRONT DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN

D127440

AXLE

ASSEMBLY - front drive, Carraro 710 No. 118562, replaced by 109935A1, parts list Figures 6-28 - 6-38, Includes: Ref. 1 - 21 on this figure

1шт.

109935A1

AXLE

ASSEMBLY - front drive, Carraro 710 No. 126809, parts list Figures 5-06 and 6-28 - 6-38, order components Ref. 1 - 21 on this figure

1шт.

Carraro number 128752 is associated with 109935A1 Axle Assembly.

1шт.

D149792 is Carraro number 126809. It is a component of production axle P/N 109935A1, which includes the D149792 axle, plus steering cylinders and plumbing. The P/N 109935A1 is Carraro number 128752.

1шт.

1

N13610

HOUSING

- front axle

1шт.

2

K395019

BUSHING

- housing

2шт.

3

1966149C1

BREATHER

- axle housing, was K965231

1шт.

4

K395022

WASHER

SPACER - front pivot

1шт.

5

K965265

BUSHING

COLLAR - front pivot

2шт.

6

K965266

BUSHING

SLEEVE - front pivot

1шт.

7

K965267

O-RING,0.07" Thk x 4.489" ID

- housing, fits in outer groove of K965265 front pivot collar (Ref. 5)

1шт.

8

N13611

BRACKET

SUPPORT - steering cylinder, left-hand

1шт.

8

N13612

BRACKET

SUPPORT - steering cylinder, right-hand

1шт.

9

933828R1

BELLEVILLE WASHER,M14 Bolt Size x 28.6mm OD x 1.5mm Thk

WASHER - lock, 14 mm, special

6шт.

10

N13503

STUD

- bracket

6шт.

11

905873R1

NUT,M14 x 1.5, G8

NUT - hex, self-locking, 14 mm-1.5, special

6шт.

K395118

DIFFERENTIAL

CARRIER ASSEMBLY - differential, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

13

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

- centering, carrier

4шт.

14

S301065

BOLT,Hex Flg, M14 x 75, 12.9

STUD - carrier, if used, replaces K261836

4шт.

14a

S301065

BOLT,Hex Flg, M14 x 75, 12.9

BOLT, , Case mounting retainer to carrier, if used Hex Flg, M14 x 75, 12.9

4шт.

15

905873R1

NUT,M14 x 1.5, G8

NUT - hex, self-locking, 14 mm-1.5, special, if used, replaces K965250

4шт.

16

1966562C1

STUD

- carrier to housing, if used

10шт.

17

905834R1

THIN NUT,M12 x 1.25, Thin

NUT - hex, self-locking, 12 mm-1.25, special, if used, replaces K965255

10шт.

18

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

19

K395023

WASHER,115.3mm ID x 145mm OD x 5mm Thk

- rear pivot

1шт.

20

1966138C1

DOWEL

PIN - dowel, Serial Range: housing-carrier

2шт.

21

5194169

BOLT,Hex Flg, M12 x 33, 12.9

BOLT, , Carrier to housing, if used Hex Flg, M12 x 33, 12.9

10шт.

B17575

FLUID

SEALANT - 3 oz (89 ml) of sealant in a tube, differential carrier to axle housing, not shown, replaces M20704

1шт.
