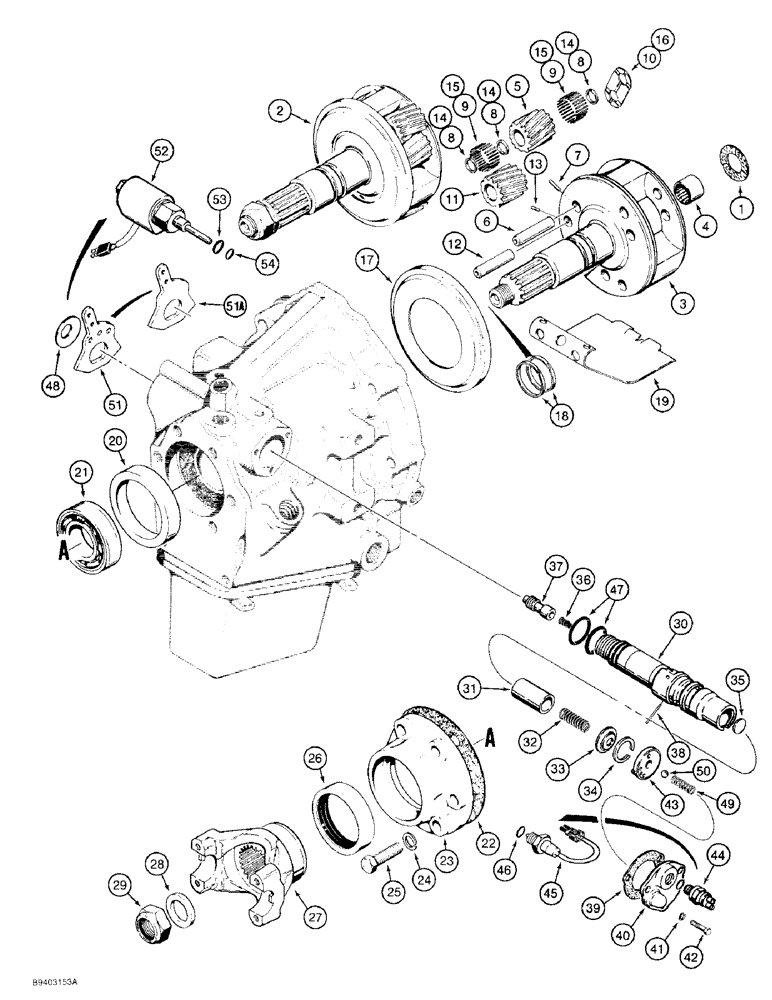

Запчасти Case 480F LL (6-12) - POWER SHUTTLE, PINION CAGE, OUTPUT SHAFT AND CONTROL VALVE (06) - POWER TRAIN

REF

INSTRUCTION

SHUTTLE ASSEMBLY - power, see Figure 6-10 for service information, parts list Figures 6-10 through 6-18, Includes: Ref. 1 - 54 this figure

1шт.

1

D50055

WASHER, THRUST,22.38mm ID x 44.45mm OD x 1.6mm Thk

WASHER - thrust, clutch hub

1шт.

Part of seal and gasket kit P/N D103220.

1шт.

2

D70665

GEAR

CAGE ASSEMBLY - pinion, with output shaft, Includes: Ref. 3 - 17

1шт.

3

NSS

NOT SOLD SEPARAT

CAGE - with shaft, basic

1шт.

4

H747964

NEEDLE BEARING,Needle, 20.64mm ID x 26.99mm OD x 22.23mm W

BEARING - needle, output shaft, (in D103218 kit below)

1шт.

D50030

GEAR

KIT - inner pinion gear and shaft, Includes: Ref. 5 - 10

3шт.

5

NSS

NOT SOLD SEPARAT

GEAR - pinion, inner

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - pinion,inner

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - retaining

1шт.

8

NSS

NOT SOLD SEPARAT

SPACER - pinion bearing

3шт.

9

NSS

NOT SOLD SEPARAT

ROLLER - pinion bearing

48шт.

10

NSS

NOT SOLD SEPARAT

PLATE - thrust

2шт.

D50031

KIT

- outer pinion gear and shaft, Includes: Ref. 11 - 16

3шт.

11

NSS

NOT SOLD SEPARAT

GEAR - pinion, outer

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - pinion,outer

1шт.

13

NSS

NOT SOLD SEPARAT

PIN - retaining

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER - pinion bearing

3шт.

15

NSS

NOT SOLD SEPARAT

ROLLER - pinion bearing

48шт.

16

NSS

NOT SOLD SEPARAT

PLATE - thrust

2шт.

17

D50087

RING

- collector

1шт.

Part of seal and gasket kit P/N D103220.

1шт.

18

D50080

RING,40.25mm ID x 44.36mm OD x 2.38mm Thk

- sealing

2шт.

Part of seal and gasket kit P/N D103220.

1шт.

19

D50056

GUARD

BAFFLE - plate

1шт.

20

D50057

SLEEVE

SPACER - ball bearing

1шт.

21

ST291

BEARING, BALL,35mm ID x 80mm OD x 21mm W

BEARING - ball, output shaft, (in D103218 kit below)

1шт.

22

D50058

GASKET

- ball bearing retainer

1шт.

Part of seal and gasket kit P/N D103220.

1шт.

23

D50059

BEARING HOUSING

RETAINER - rear ball bearing

1шт.

24

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

25

113-363

BOLT,Hex, 7/16" - 14 x 1-1/8", Gr 5, Full Thd

- hex, 7/16 NC x 1-1/8 inch

6шт.

26

D50060

SEAL,53.98mm ID x 77.93mm OD x 13.11mm Thk

- oil, rear

1шт.

Part of seal and gasket kit P/N D103220.

1шт.

27

D124144

FLANGE

YOKE - output shaft mounting

1шт.

28

D65247

WASHER

- output shaft

1шт.

Part of seal and gasket kit P/N D103220.

1шт.

B17576

GASKET MAKER FLUID

SEALANT - 3 oz. (89 ml) of sealer in a tube, not shown, used between D65247 washer and end of shaft, was 345-84

1шт.

29

131-37

LOCK NUT,3/4"-16

NUT - hex, self-locking, 3/4 inch NF

1шт.

N14765

VALVE BODY

VALVE ASSEMBLY - power shuttle, Includes: Ref. 30 - 38

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

31

D50089

VALVE

- pressure regulator

1шт.

32

D50090

SPRING

- valve

1шт.

33

D50091

RETAINER,9.53mm ID x 28.42mm OD x 1.34mm Thk

- spring

1шт.

34

D50092

RING

- spring retaining

1шт.

35

172531

PLUG,Exp, 3/4"

- expansion, 3/4 inch, was 41-12

1шт.

36

D77476

SPRING

- clutch cutout

1шт.

37

D77474

SPOOL

- valve

1шт.

38

135-198

GROOVED PIN,5/64" x 1", Type B

PIN, GROOVED, 5/64" x 1", Type B

1шт.

39

D50066

GASKET,0.41mm Thk

- valve cover

1шт.

Part of seal and gasket kit P/N D103220.

1шт.

40

D86488

COVER

- valve

1шт.

41

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

WASHER, LOCK, 1/4"

3шт.

42

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex, 1/4 NC x 7/8 inch

3шт.

43

D86489

CAM

- neutral start switch

1шт.

44

S113435

SWITCH

- neutral start, with snap-on connector, part of D102905 service shuttle, not used in this application, replace with D141061 switch

1шт.

45

D141061

SWITCH

- neutral start, with plastic wire connector, production, not part of D102905 service shuttle, Includes: Ref. 46

1шт.

46

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Component of S113435 or D141061 switch

1шт.

Part of seal and gasket kit P/N D103220.

1шт.

47

238-7023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 7, 75 Duro

- 1-1/16 ID x 1/16 inch wide

2шт.

Part of seal and gasket kit P/N D103220.

1шт.

48

D147178

SPRING

WASHER - Belleville, special

1шт.

49

S47892

SPRING

- poppet

1шт.

50

211-208

BALL,5/16" Dia

- 5/16 inch, grade 25, chrome alloy steel

1шт.

51

D77621

LEVER

- shift, no longer available, order item 51A, D146178 lever

1шт.

51a

D146178

LEVER

- shift

1шт.

N14766

SOLENOID VALVE

SOLENOID ASSEMBLY - power shuttle, Includes: Ref. 52 - 54

1шт.

52

D144921

CARTRIDGE

- power shuttle, Includes: Ref. 53 and 54

1шт.

53

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

54

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

D103218

BEARING ASSY

KIT bearing

1шт.

D103219

PACKAGE

KIT overhaul, clutch

1шт.

D103220

SEAL PACKAGE

KIT seal, gasket

1шт.
