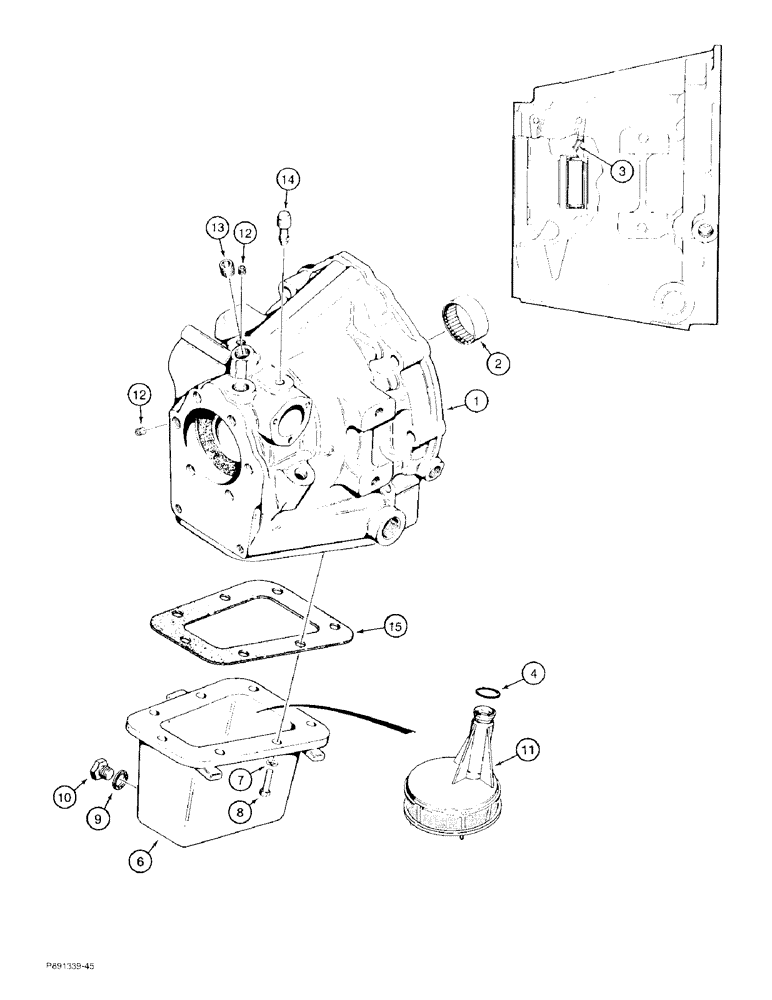

Запчасти Case 480F LL (6-10) - POWER SHUTTLE, HOUSING AND OIL PAN (06) - POWER TRAIN

D102905

TRANSMISSION

SHUTTLE ASSEMBLY - power, Warner Gear No. 10-16-000-048, parts list Figures 6-10 through 6-18, service replacement for D140492 (Warner 10-16-000-047) and D140405 (Warner 10-16-000-048) power shuttles, Includes: Ref. 1 - 14

1шт.

If replacing D140492 (Warner 10-16-000-047) shuttle, also order D141061 neutral start switch on Figure 6-14.

1шт.

DR140175

REMAN-TRANSMISSION

Remanufactured Power Shuttle

1шт.

DC140175

CORE-TRANSMISSION

Return Part Number

1шт.

329669A1

REMAN-TORQ CONV PS K

Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

329669A1C

CORE-TORQ CONV PS KI

Return Part Number, Power Shuttle 329669A1 includes a reman power shuttle (DR140175) with a reman converter (103293A1R)

1шт.

D70650

HOUSING

power shuttle, Includes: Ref. 1 - 3A

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - power shuttle

1шт.

2

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

(in D103218 kit below)

1шт.

3

41-107

PLUG,Cup, 7/16"

1шт.

3a

76349

PLUG,9/16" - 18 ORB

Not shown, if used

1шт.

4

R29797

O-RING,0.07" Thk x 0.739" ID

screen tube

1шт.

Part of seal and gasket kit P/N D103220.

1шт.

5

B17576

GASKET MAKER FLUID

SEALANT - 3 oz (89 ml) of sealant in a tube, oil pan to housing, not shown, if used, was 345-84

1шт.

6

N13577

PAN

oil, power shuttle

1шт.

7

492-11038

LOCK WASHER,3/8"

7шт.

8

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

7шт.

D73701

PLUG

drain, 5/8 inch PT, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - drain plug; Part of Plug Assy D73701

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - drain; Part of Plug Assy D73701

1шт.

11

D143133

FILTER SCREEN

sump, suspended with four peg legs

1шт.

12

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

PT

2шт.

13

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

PT, if used

1шт.

14

D50062

BREATHER

power shuttle

1шт.

15

R29956

GASKET,0.76mm Thk

oil pan to housing, if used

1шт.

Part of seal and gasket kit P/N D103220.

1шт.

D103218

BEARING ASSY

KIT bearing

1шт.

D103219

PACKAGE

KIT overhaul, clutch

1шт.

D103220

SEAL PACKAGE

KIT seal, gasket

1шт.
