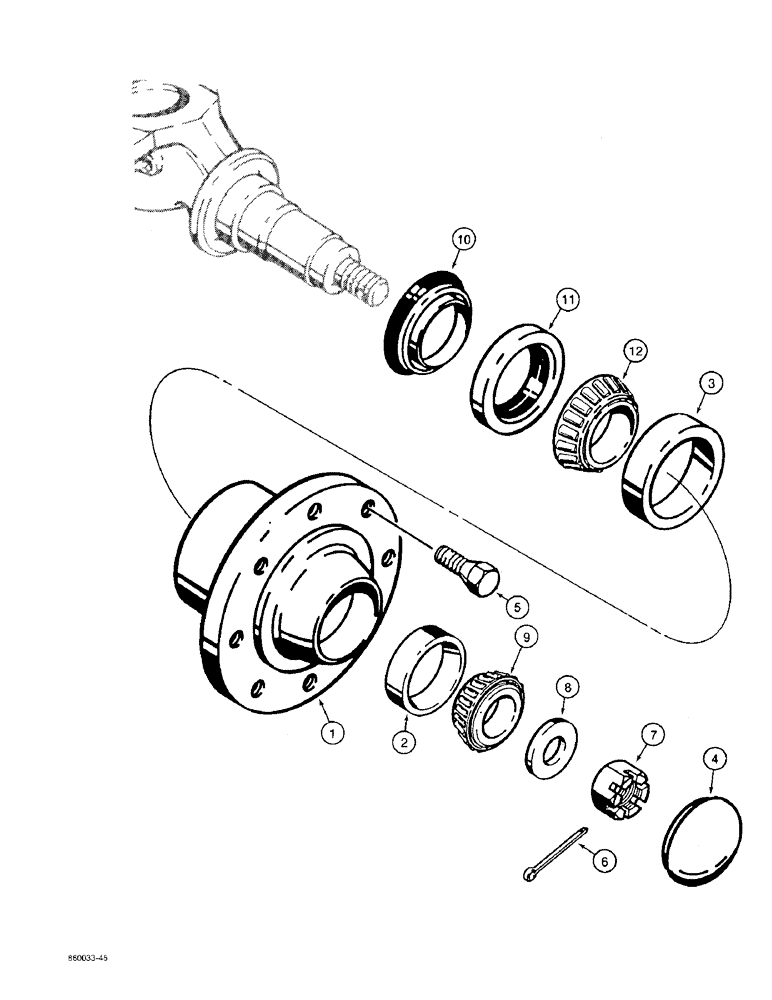

Запчасти Case 480F LL (5-18) - FRONT WHEEL HUB AND BEARINGS (05) - STEERING

A66759

HUB

ASSEMBLY - front wheel, Includes: Ref. 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

HUB - front wheel

1шт.

2

619387R1

BEARING CUP

CUP - outer, tapered roller bearing

1шт.

Part of P/N D103157 Wheel Bearing Kit.

1шт.

Part of P/N B93222 Wheel Bearing Kit.

1шт.

3

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - inner, tapered roller bearing

1шт.

Part of P/N D103157 Wheel Bearing Kit.

1шт.

Part of P/N B93222 Wheel Bearing Kit.

1шт.

4

D143405

CAP

- hub

2шт.

5

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Retaining

16шт.

6

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

2шт.

7

425-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex, slotted, thick, 1-1/8 inch NF, was 425-1918

2шт.

8

D74949

WASHER,28.96mm ID x 60.45mm OD x 4.88mm Thk

- flat, 1-1/8 inch

2шт.

9

G15215

ROLLER BEARING

BEARING - tapered roller, outer

2шт.

Part of P/N D103157 Wheel Bearing Kit.

1шт.

Part of P/N B93222 Wheel Bearing Kit.

1шт.

10

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

- spindle

2шт.

Part of P/N D103157 Wheel Bearing Kit.

1шт.

Part of P/N B93222 Wheel Bearing Kit.

1шт.

11

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

- hub

2шт.

Part of P/N D103157 Wheel Bearing Kit.

1шт.

Part of P/N B93222 Wheel Bearing Kit.

1шт.

12

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

BEARING - tapered roller, inner

2шт.

Part of P/N D103157 Wheel Bearing Kit.

1шт.

Part of P/N B93222 Wheel Bearing Kit.

1шт.

D103157

WHEEL BEARING KIT

KIT bearing, wheel, services 1 hub, consists of (1) each of: Ref. 2, 3, 9, 10, 11 and 12

2шт.

B93222

KIT

bearing, wheel, consists of (1) each of: Ref. 2, 3, 9, 10, 11 and 12 ( 1 Kit per wheel)

1шт.
