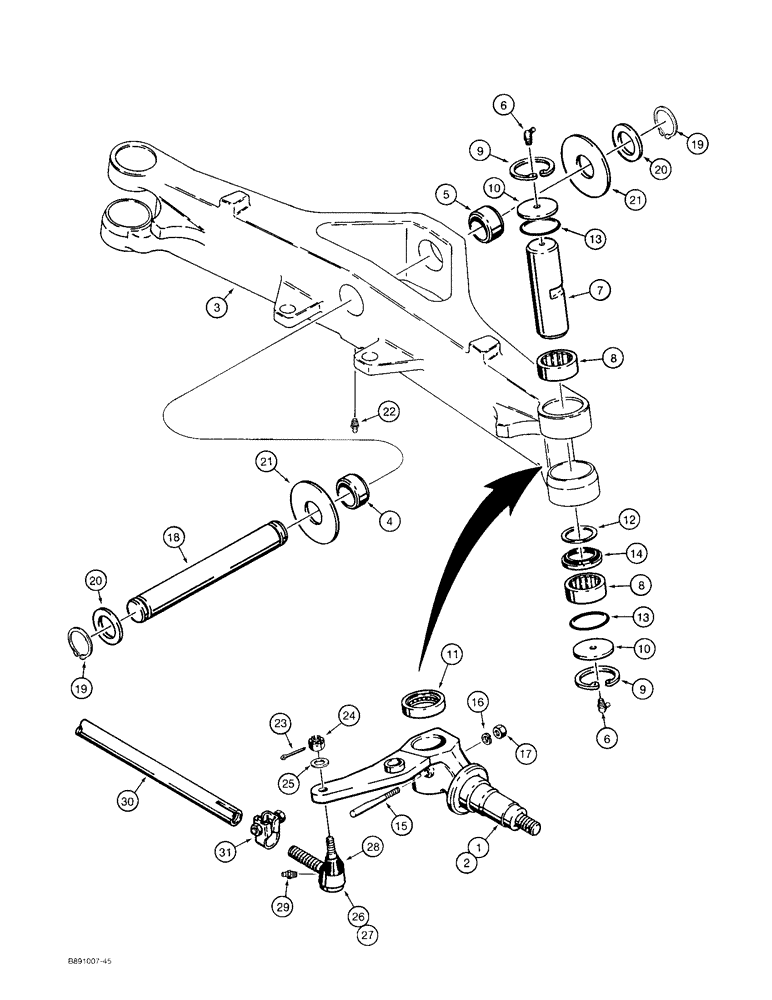

Запчасти Case 480F LL (5-16) - FRONT AXLE AND SPINDLES (05) - STEERING

1

D125862

SPINDLE

- right-hand

1шт.

Ref #1 RH pictured per print. jhw cam 6-99

1шт.

2

D125863

SPINDLE

- left-hand

1шт.

3

D137317

AXLE

ASSEMBLY - front, Includes: Ref. 4 and 5

1шт.

4

D126498

BUSHING,44.68mm ID x 57.12mm OD x 50mm L

- axle

1шт.

5

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- axle

1шт.

D103156

SET

KIT - kingpin, front axle, Includes: Ref. 6 - 15

2шт.

6

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, 1/8 inch NPT

2шт.

7

D72337

PIN,50.8mm OD x 168.91mm L

KINGPIN - front axle

1шт.

8

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - needle, kingpin

2шт.

9

100-21237

SNAP RING,2.375", Int, #237

Ring, Snap, , Brg 2.375", Int, #237

2шт.

10

D72371

WASHER,3.17mm ID x 60.2mm OD x 4.57mm Thk

SPACER - kingpin

2шт.

11

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - roller, spindle

1шт.

12

D72372

WASHER,50.85mm ID x 69.6mm OD x 0.81mm Thk

- thrust, bearing

1шт.

13

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

2шт.

14

D61297

SEAL,50.8mm ID x 60.22mm OD x 6.4mm Thk

- oil

1шт.

15

D57486

PIN

- kingpin lock

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

17

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

2шт.

18

D64171

PIN,44.45mm OD x 352.55mm L

- axle pivot

1шт.

19

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

20

495-81278

WASHER,33.53mm ID x 50.8mm OD x 3.35mm Thk

- flat, 1-5/16 x 2 x 7/64 inch

2шт.

21

D61076

WASHER,46mm ID x 114mm OD x 4.78mm Thk

- spacer

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

23

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

24

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

2шт.

25

495-81274

WASHER,0.81" ID x 1.25" OD x 0.07" Thk

- flat, 13/16 x 1-1/4 x 1/16 inch

1шт.

D73398

ROD

ASSEMBLY - tie, tractor, Includes: Ref. 26 - 31

1шт.

26

D88491

BALL JOINT,7/8" - 18 x 3-3/4"

JOINT ASSEMBLY - ball, tie rod, right-hand, Includes: Ref. 28 and 29

1шт.

27

D88492

BALL JOINT,7/8" - 18 x 3-3/4"

JOINT ASSEMBLY - ball, tie rod, left-hand, Includes: Ref. 28 and 29

1шт.

28

N7681

BOOT

- dust, D88491 or D88492 ball joint

1шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

30

D73397

TIE-ROD,7/8” ID x 1.5” OD x 42.1” L

ROD - tie, tractor

1шт.

31

D73799

CLAMP

- tie rod, includes hardware

2шт.
