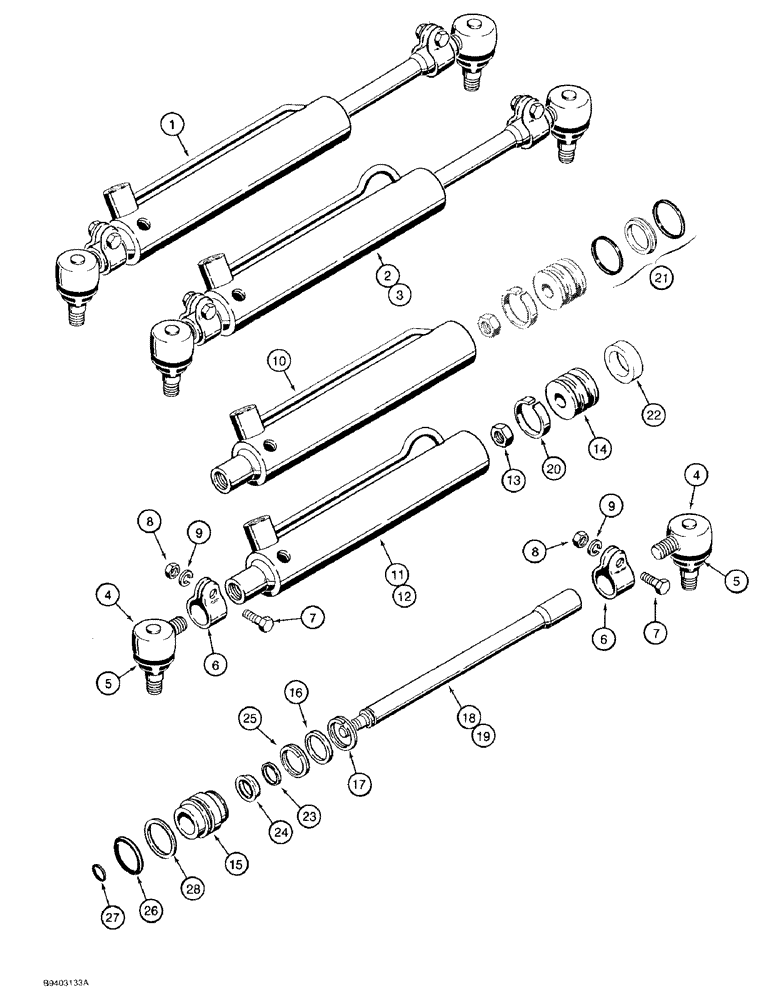

Запчасти Case 480F LL (5-14) - STEERING CYLINDERS (05) - STEERING

1

D128454

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, two wheel drive models, service only, interchangable with D147753 Ref. 2, (tube variation only) order D147753, ref service bulletin NLB SB 002 91, Includes: Ref. 4 - 28

2шт.

2

D147753

CYLINDER

ASSEMBLY - steering, two wheel drive models, production and service, interchangable with D128454 Ref 1, Includes: Ref. 4 - 28

2шт.

2

234447A1R

REMAN-HYD CYLINDER

480F, 480F LL, REMAN for Part No. D147753

2шт.

2

234447A1C

CORE-HYD CYLINDER

Return Number

2шт.

3

D147756

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, used on four wheel drive models, replaces D92099 which had three piece piston seal, Includes: Ref. 4 - 28

2шт.

234449A1R

REMAN-HYD CYLINDER

480F, 480F LL, ALL (9/89-), Reman For New P/N D147756

2шт.

234449A1C

CORE-HYD CYLINDER

Return Number

1шт.

4

A40962

BALL JOINT

JOINT - ball, male thread, Includes: Ref. 5

2шт.

5

A41424

SEAL

BOOT - dust cover

1шт.

A27080

CLAMP

ASSEMBLY - end, Includes: Ref. 6 - 9

2шт.

6

NSS

NOT SOLD SEPARAT

CLAMP - end

1шт.

7

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

8

425-106

NUT,3/8"-16, Cl 5

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

D83188

CYLINDER

TUBE - D128454 cylinder, two wheel drive models, service only, interchangable with D148568 Ref. 11

1шт.

11

D148568

TUBE ASSY.

TUBE - D147753 cylinder, two wheel drive models, interchangable with D83188 tube Ref. 10

1шт.

12

N7467

TUBE ASSY.,1.504" ID x 1.75" OD

TUBE - cylinder, four wheel drive models

1шт.

13

131-1145

JAM NUT,5/8" - 18

NUT - hex, self-locking, 9/16 NF

1шт.

14

D83190

PISTON

- cylinder

1шт.

Part of Piston Kit P/N D147754

1шт.

15

D83189

GLAND

- cylinder, includes bushing

1шт.

Part of Gland Kit P/N D147757

1шт.

16

A44641

SPACER,31.62mm ID x 34.37mm OD x 7.7mm L

- head

1шт.

17

A44654

SNAP RING,#125, 1.188", Ext Spiral

RING - lock, outer

1шт.

18

N8890

PISTON ROD

ROD - cylinder, two wheel drive models, hardened

1шт.

19

N7466

ROD

- cylinder, four wheel drive models, hardened

1шт.

D148100

GASKET KIT

KIT - cylinder repair, replaces D83184 kit, Includes: Ref. 20 - 28

1шт.

20

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

Part of Piston Kit P/N D147754

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - piston, three piece, D83184 kit, no longer supplied, replaced by Ref. 22

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - piston, one piece, D148100 kit

1шт.

Part of Piston Kit P/N D147754

1шт.

23

A44651

WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk

WIPER - rod

1шт.

Part of Gland Kit P/N D147757

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

Part of Gland Kit P/N D147757

1шт.

25

A44652

SNAP RING,#150, 1.591", Int, Spiral

RING - lock, gland

1шт.

26

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1шт.

Part of Gland Kit P/N D147757

1шт.

27

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

28

A45035

SEALING RING,34.88mm ID x 38mm OD x 1.58mm W

RING - backup, gland O-ring

1шт.

Part of Gland Kit P/N D147757

1шт.

D147757

HEAD

KIT - gland, with seals, Includes: Ref. 15, 23, 24, 26 and 28

1шт.

D147754

PISTON

KIT - piston, with seals, Includes: Ref. 14, 20 and 22

1шт.
