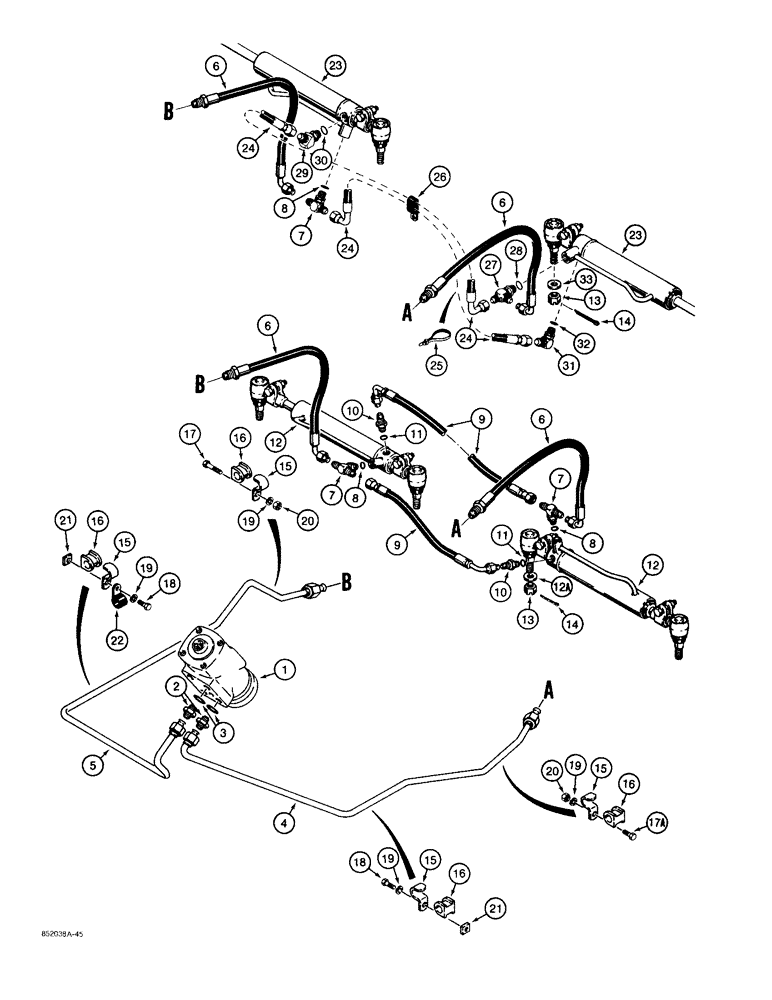

Запчасти Case 480F LL (5-06) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - steering control, see Figures 5-08 - 5-12 for correct assembly and components

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

D138103

TUBE

- to right-hand steering cylinder

1шт.

5

D138104

TUBE

- to left-hand steering cylinder

1шт.

6

D62390

HOSE,9.53mm ID x 508mm L, SAE 100R1

- 20 inch (508 mm) long, to steering cylinders

2шт.

Included in 109935A1 axle. See additional axle components on Figures 6-28 - 6-38.

1шт.

7

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, Includes: Ref. 8

2шт.

Included in 109935A1 axle. See additional axle components on Figures 6-28 - 6-38.

1шт.

9

D126884

HOSE,9.53mm ID x 382mm L, SAE 100R1

- 15 inch (382 mm) long, between cylinders, two wheel drive models only

2шт.

10

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - short, 9/16-18 flared x 9/16-18 inch o-ring boss, Incl. Ref. 11

2шт.

12

REF

INSTRUCTION

CYLINDER - steering, two wheel drive models only, see Figure 5-14 for correct assembly and components

2шт.

12a

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 5/32 inch

1шт.

13

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

4шт.

Included in 109935A1 axle. See additional axle components on Figures 6-28 - 6-38.

1шт.

14

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

4шт.

Included in 109935A1 axle. See additional axle components on Figures 6-28 - 6-38.

1шт.

15

D68638

CLAMP

- tube

4шт.

16

D67296

GROMMET

INSULATOR - tube clamp

4шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

17a

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

18

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

19

492-11038

LOCK WASHER,3/8"

4шт.

20

425-106

NUT,3/8"-16, Cl 5

2шт.

21

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

2шт.

22

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- retaining

1шт.

23

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, see Figure 5-14 for correct assembly and components, special parts used on 4wd models

2шт.

Included in 109935A1 axle. See additional axle components on Figures 6-28 - 6-38.

1шт.

24

D123917

HOSE

- 25-5/8 inch (650 mm) long, cylinder to cylinder, special parts used on 4wd models

2шт.

Included in 109935A1 axle. See additional axle components on Figures 6-28 - 6-38.

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, special parts used on 4wd models

1шт.

Included in 109935A1 axle. See additional axle components on Figures 6-28 - 6-38.

1шт.

26

L17508

CLAMP

- hose, special parts used on 4wd models

1шт.

Included in 109935A1 axle. See additional axle components on Figures 6-28 - 6-38.

1шт.

27

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, right-hand steering cylinder, special parts used on 4wd models, Includes: Ref. 28

1шт.

Included in 109935A1 axle. See additional axle components on Figures 6-28 - 6-38.

1шт.

29

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, adjustable, left-hand steering cylinder, special parts used on 4wd models, Includes: Ref. 30

1шт.

Included in 109935A1 axle. See additional axle components on Figures 6-28 - 6-38.

1шт.

31

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adjustable, right-hand steering cylinder, special parts used on 4wd models, Includes: Ref. 32

1шт.

Included in 109935A1 axle. See additional axle components on Figures 6-28 - 6-38.

1шт.

33

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened, at inner ball joints, special parts used on 4wd models

2-4шт.

Included in 109935A1 axle. See additional axle components on Figures 6-28 - 6-38.

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Special parts used on 4WD models

1шт.

Included in 109935A1 axle. See additional axle components on Figures 6-28 - 6-38.

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Special parts used on 4WD models

1шт.

Included in 109935A1 axle. See additional axle components on Figures 6-28 - 6-38.

1шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Special parts used on 4WD models

1шт.

Included in 109935A1 axle. See additional axle components on Figures 6-28 - 6-38.

1шт.
