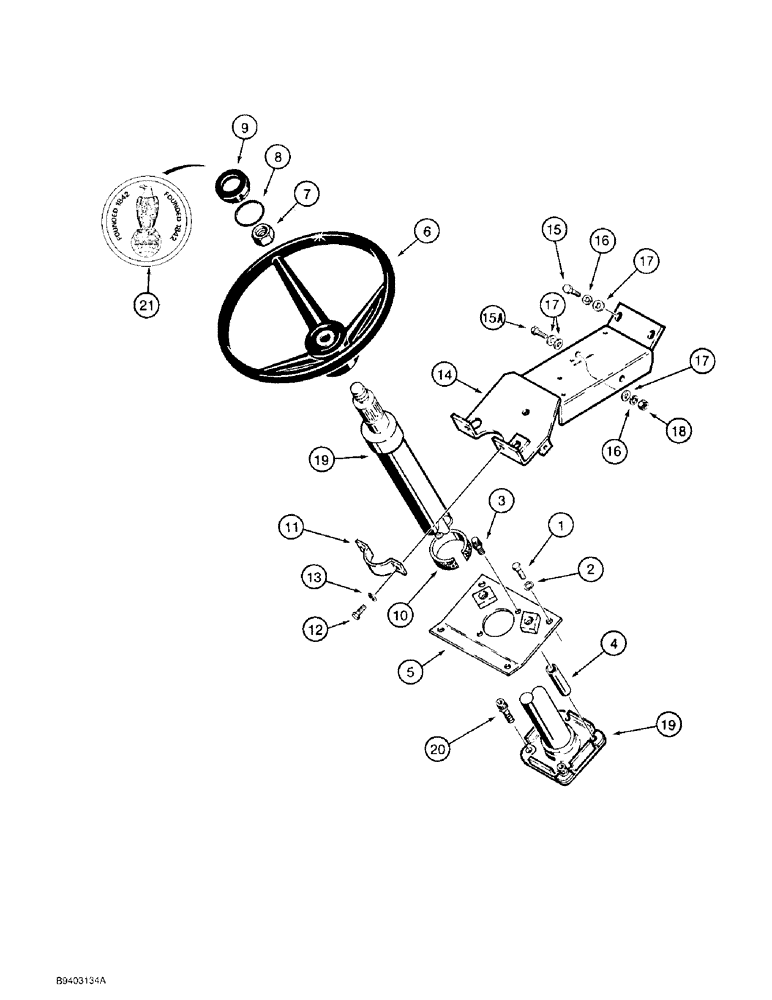

Запчасти Case 480F LL (5-02) - STEERING WHEEL AND COLUMN (05) - STEERING

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

2

492-11038

LOCK WASHER,3/8"

2шт.

3

380-2620

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

BOLT - 12 point, 3/8 NC x 1-1/4 inch, grade 8

2шт.

4

D76211

SPACER

- plate

2шт.

5

D140360

PLATE

- control valve mounting

1шт.

6

A65544

STEERING WHEEL

1шт.

7

F19646

LOCK NUT,13/16"-20, Thin

NUT - lock, wheel

1шт.

8

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

Cap, was D26115 -227, 70 Duro, 2.109" ID x .139" Thk

1шт.

9

114882A1

CAP

- steering wheel nut cover, was A62210

1шт.

10

D136818

SUPPORT

COLLAR - steering column

1шт.

11

D66049

CLAMP

- steering column

1шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

D148297

BRACKET

- steering column support, replaces D99515

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

15a

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

16

492-11038

LOCK WASHER,3/8"

3шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

5шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

D80621

POST

STEERING COLUMN - component parts not serviced separately

1шт.

20

27588R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

BOLT - 12 point, 3/8 NC x 3/4 inch, grade 8, was 166-1013

2шт.

21

A180055

CAP ASSY.

DISC - insert, Case eagle

1шт.
