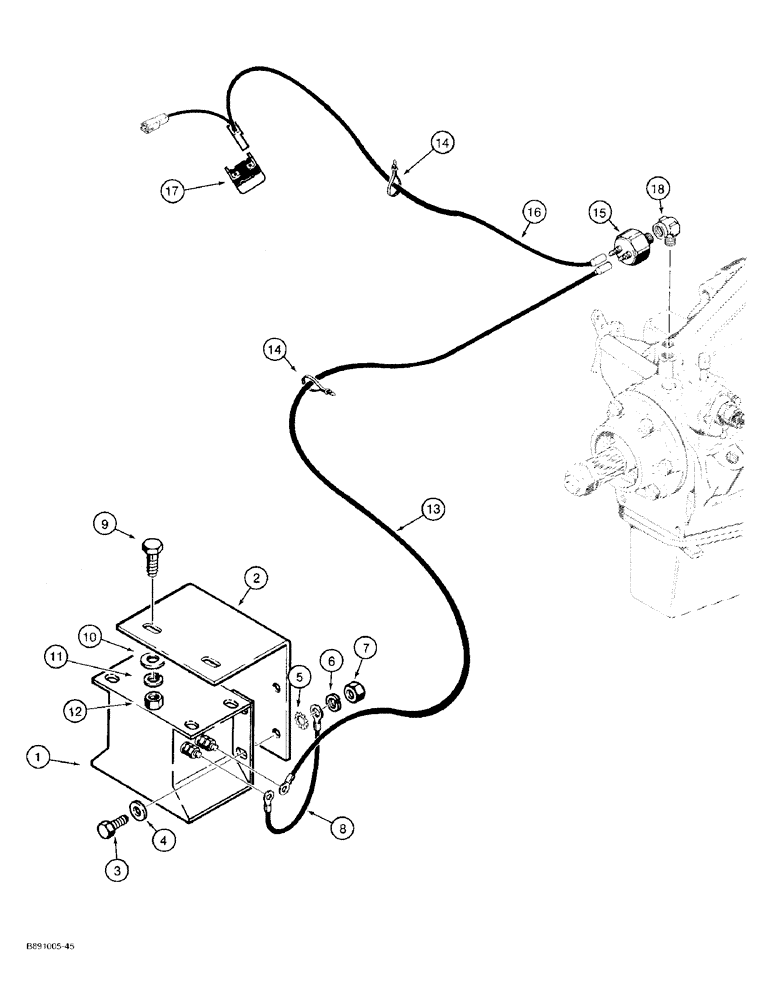

Запчасти Case 480F LL (4-42) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

D121972

ALARM

- backup, electric, rectangular type

1шт.

2

D75815

BRACKET

- backup alarm

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

4

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

5

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

8

D70125

ELECTRICAL WIRE

WIRE - alarm ground

1шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, if used

2шт.

10

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), If used

2шт.

11

492-11038

LOCK WASHER,3/8"

if used 3/8"

2шт.

12

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

2шт.

13

D131326

ELECTRICAL WIRE

WIRE -, Serial Range: switch-alarm

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

6-7шт.

15

D139904

SWITCH

- pressure, mounts in power shuttle

1шт.

16

D131327

HARNESS

WIRE - pressure switch to circuit breaker

1шт.

17

D78002

CIRCUIT-BREAKER

BREAKER - circuit, 15 amperes

1шт.

18

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Street, if used 90º, 1/8"-27 Female x 1/8"-27 Male

1шт.
