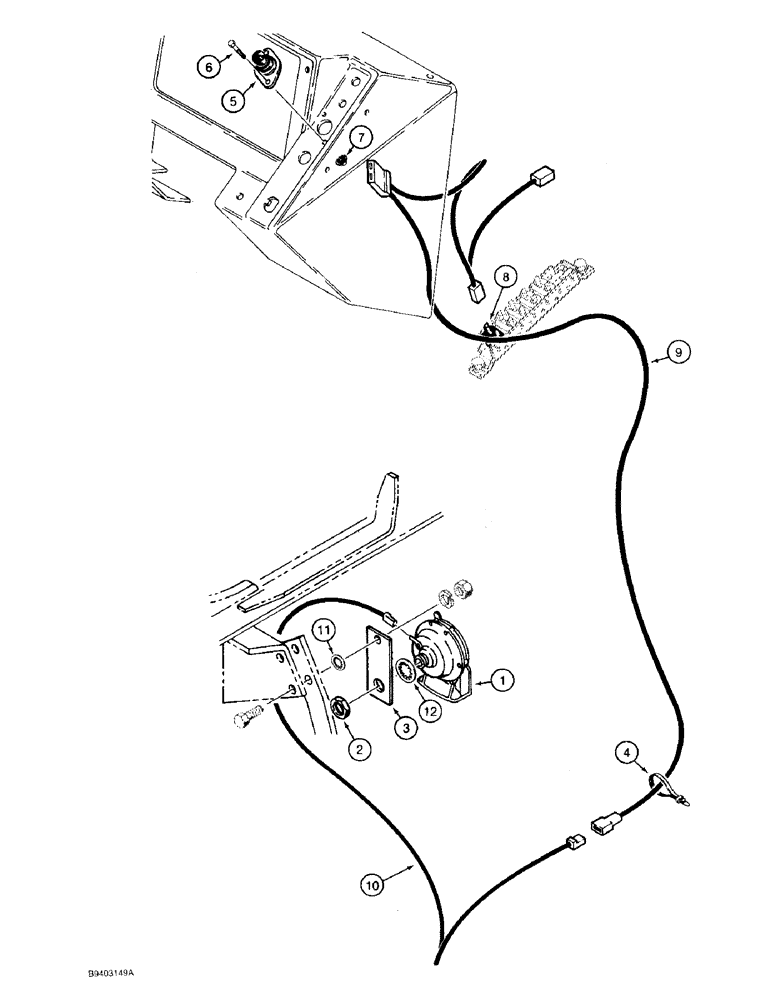

Запчасти Case 480F LL (4-40) - HORN (04) - ELECTRICAL SYSTEMS

1

D123205

HORN

- 12 volt

1шт.

2

L30866

LOCK NUT

- hex, horn mounting, 7/8 inch NC

1шт.

3

D122734

SUPPORT

BRACKET - horn mounting, fastens to transmission support strap, for attaching hardware see page 6-43

1шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

5

D67872

SWITCH

- horn

1шт.

6

463-11010

SCREW,Hex Hd, #10-24 x 5/8"

- machine, hex head, No. 10 NC x 5/8 inch

2шт.

7

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - hex, with external tooth lockwasher, No. 10 NC

2шт.

8

D78002

CIRCUIT-BREAKER

BREAKER - circuit, 15 amperes

1шт.

9

D75818

ELECTRICAL WIRE

WIRE - circuit breaker to horn switch and horn

1шт.

10

D91176

ELECTRICAL WIRE

WIRE - horn to switch wire

1шт.

11

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - internal tooth lock, 1/2 inch

1шт.

12

493-21091

LOCK WASHER,Int Tooth, 7/8"

WASHER - internal tooth lock, 7/8 inch

1шт.

13

D123943

DECAL

- Horn, not shown, see Figure 9-160 for decals

1шт.
