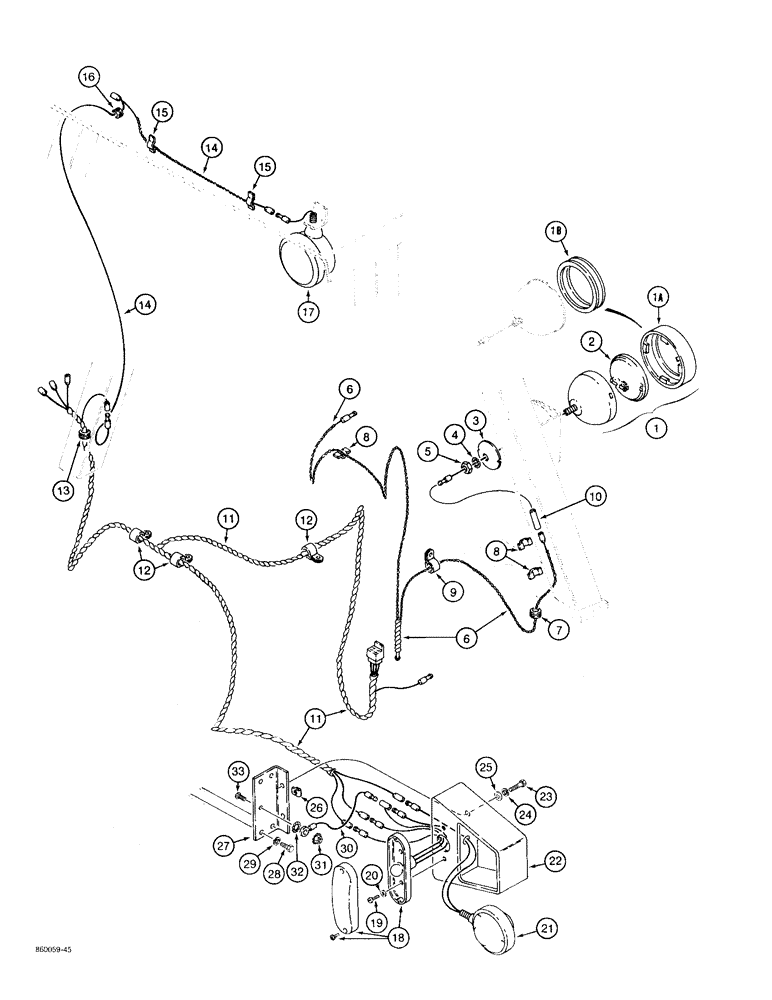

Запчасти Case 480F LL (4-28) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CANOPY (04) - ELECTRICAL SYSTEMS

1

D88547

LAMP BASE

LAMP ASSEMBLY - front, interchangeable with A59701 lamp, Includes: Ref. 1A and 1B

2шт.

1a

A25213

RETAINER

- lamp, locks to shell by three rubber tabs, if used

1шт.

1b

N6160

LAMP

RETAINER - lamp, locks over shell flange, if used

1шт.

2

373662R1

LAMP

BULB - sealed beam, No. 4411

1шт.

3

A59702

RETAINER

WASHER - retainer

2шт.

4

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch

2шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

6

D88626

HARNESS

- front lamps, connects to main wiring harness

1шт.

7

248-2135

GROMMET,1/4" ID x 7/16" Groove Dia

- rubber, through valve mounting plate, was 49561

1шт.

8

F93268

CLIP

- wire, stick on type

5шт.

9

49853

TOOL

- harness, use instrument panel mounting hardware

2шт.

10

NSS

NOT SOLD SEPARAT

SLEEVE - protective, lamp wire connection

2шт.

11

D88628

HARNESS

- rear flood lamps and flasher lamps

1шт.

12

49838

CLAMP

- retaining

3шт.

13

D37936

GROMMET

- rubber, rear harness through fenders

2шт.

14

D88627

HARNESS

- upper, rear flood lamps

1шт.

15

F93268

CLIP

- wire, stick on type

2шт.

16

L10082

GROMMET

- rubber, harness through canopy roof, rear

1шт.

17

D88684

LAMP

ASSEMBLY - rear flood, parts list Figure 4-38

2шт.

18

D121152

LAMP,12V

ASSEMBLY - stop and tail, parts list Figure 4-34

2шт.

19

187-1917

SELF-TAP SCREW,Pan Hd, #8-16 x 5/8"

SCREW - pan, self-tapping, No. 8 x 5/8 inch

4шт.

20

495-21019

WASHER,#8

4шт.

21

D122121

LAMP,12V

ASSEMBLY - flasher, parts list Figure 4-36

2шт.

22

D120124

BRACKET

- side lamps, also order 8-44950 instruction sheet

2шт.

23

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

25

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

26

131-636

SPRING NUT,J, Ret, 5/16"-18

- J-type, 5/16 inch NC

4шт.

27

D134875

BRACKET

- mounting, side lamp, Serial Range: bracket-canopy

2шт.

28

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

29

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

30

D134918

ELECTRICAL WIRE

WIRE - ground, flasher and stop and tail lamps, common connection to canopy mounting bracket

2шт.

31

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

2шт.

32

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

2шт.

33

459-1106

SCREW,Slotted Pan Hd, #10-32 x 3/8"

- machine, pan head slotted, No. 10 NF x 3/8 inch

2шт.
