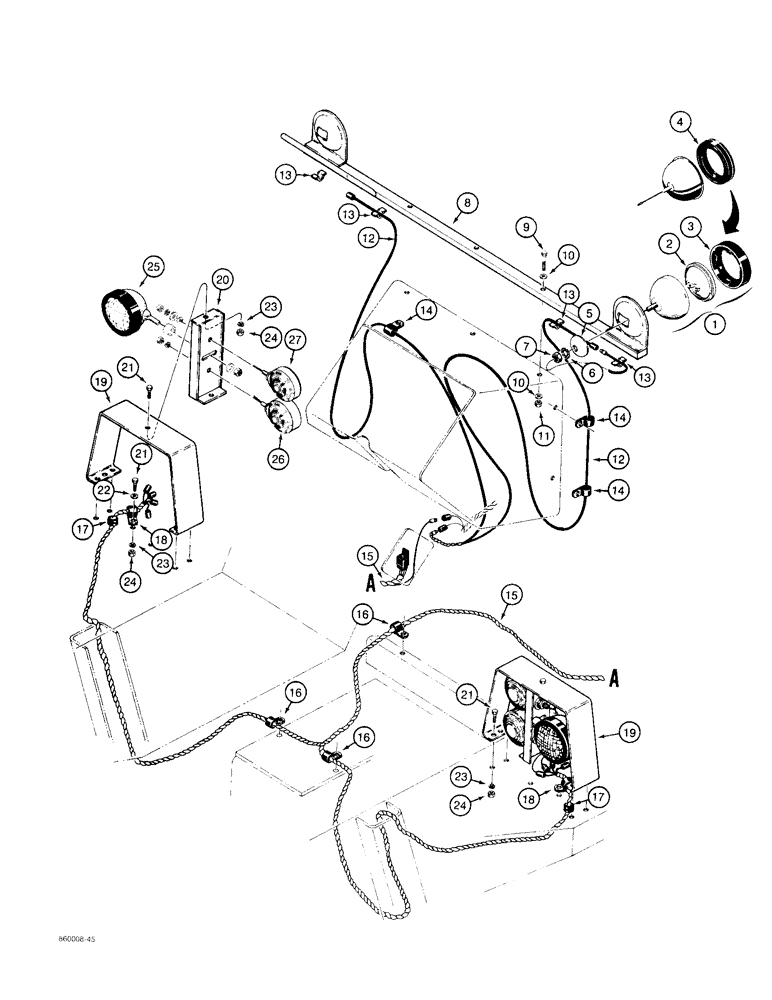

Запчасти Case 480F LL (4-26) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITHOUT CANOPY OR CAB (04) - ELECTRICAL SYSTEMS

1

D88547

LAMP BASE

LAMP - front, interchangeable with A59701 lamp, Includes: Ref. 2 - 4

2шт.

2

373662R1

LAMP

BULB - sealed beam, No. 4411

1шт.

3

A25213

RETAINER

- lamp, locks to shell with three rubber tabs, if used

1шт.

4

N6160

LAMP

RETAINER - lamp, locks over shell flange, if used

1шт.

5

A59702

RETAINER

WASHER - retaining

2шт.

6

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch

2шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

8

D77790

BAR

BRACKET - front lamps

1шт.

9

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

3шт.

10

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

11

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

3шт.

12

D88626

HARNESS

WIRE - front lamps

1шт.

13

F93268

CLIP

- wire, stick on type

4шт.

14

80049853

YOKE

- harness

6шт.

15

D88629

HARNESS

- rear lamps

1шт.

16

49838

CLAMP

- retaining

3шт.

17

D37936

GROMMET

- rubber

2шт.

18

49838

CLAMP

- retaining

2шт.

19

D58721

BRACKET

- rear lamp, outer

2шт.

20

D58713

LARGE PLATE

BRACKET - rear lamp, center

2шт.

21

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

15шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

23

492-11038

LOCK WASHER,3/8"

15шт.

24

425-106

NUT,3/8"-16, Cl 5

15шт.

25

D88684

LAMP

ASSEMBLY - rear flood, part list Figure 4-38

2шт.

26

D49733

LAMP

ASSEMBLY - stop and tail, parts list Figure 4-36

2шт.

27

D122121

LAMP,12V

ASSEMBLY - signal and flasher, parts list Figure 4-36

2шт.
