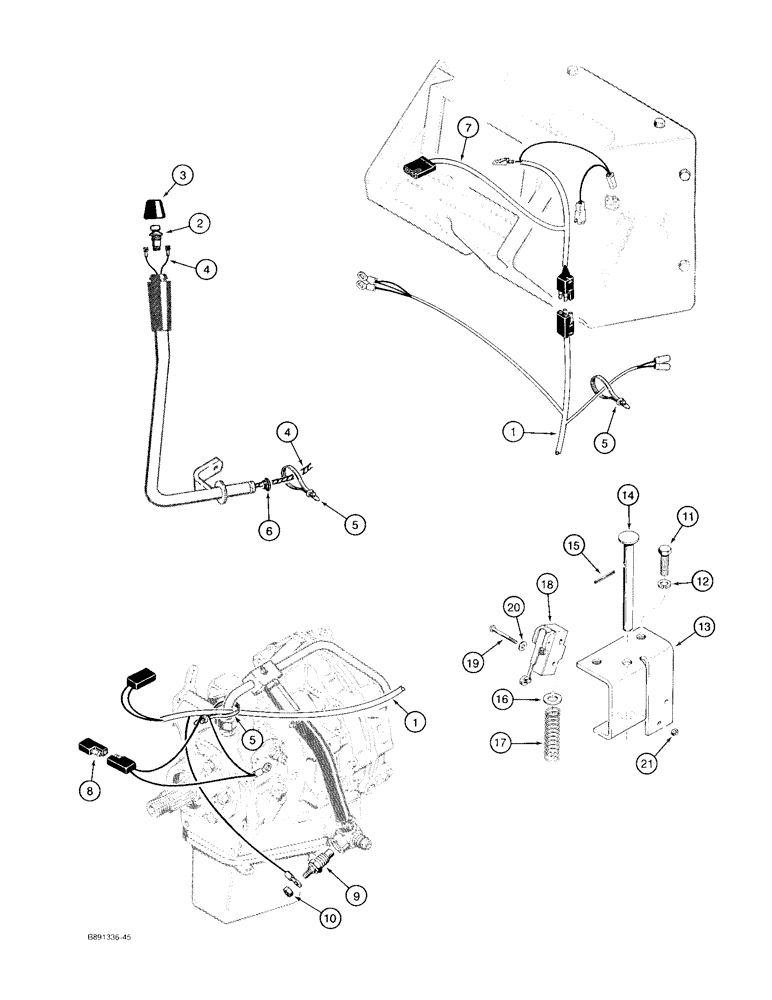

Запчасти Case 480F LL (4-20) - POWER SHUTTLE ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

D99204

HARNESS

- clutch cutout, lower

1шт.

2

D141486

SWITCH

- clutch cutout, loader control lever

1шт.

3

D138252

BOOT

- switch cover, if used

1шт.

4

D99751

HARNESS

- control lever switch

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

D83832

GROMMET

- wire, if used

1шт.

7

D99203

HARNESS

- clutch cutout, upper

1шт.

8

L71879

DIODE ELEMENT,400V, 3A

DIODE - switch protecting

1шт.

9

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - shuttle oil temperature

1шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

D103504

SWITCH

KIT - switch, clutch cutout, Includes: Ref. 11 - 21

1шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

D142143

SWITCH

ASSEMBLY - clutch cutout, with bracket, Includes: Ref. 13 - 21

1шт.

13

D142142

BRACKET

- switch mounting

1шт.

14

D141581

ROD

- switch activating

1шт.

15

138-305

LOCK PIN,1/8" x 1", Slotted, Stainless

Pin, 1/8" x 1, Slotted, Stainless

1шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

17

T34088

SPRING

- return, switch rod

1шт.

18

D137363

SWITCH

- clutch cutout

1шт.

19

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

- machine, pan head slotted, No. 6 NC x 1-1/4 inch

2шт.

20

495-31016

WASHER,#6

2шт.

21

193-1003

NUT,Keps, w/LW,#6-32

- hex, with external tooth lock washer, No. 6 NF

2шт.
