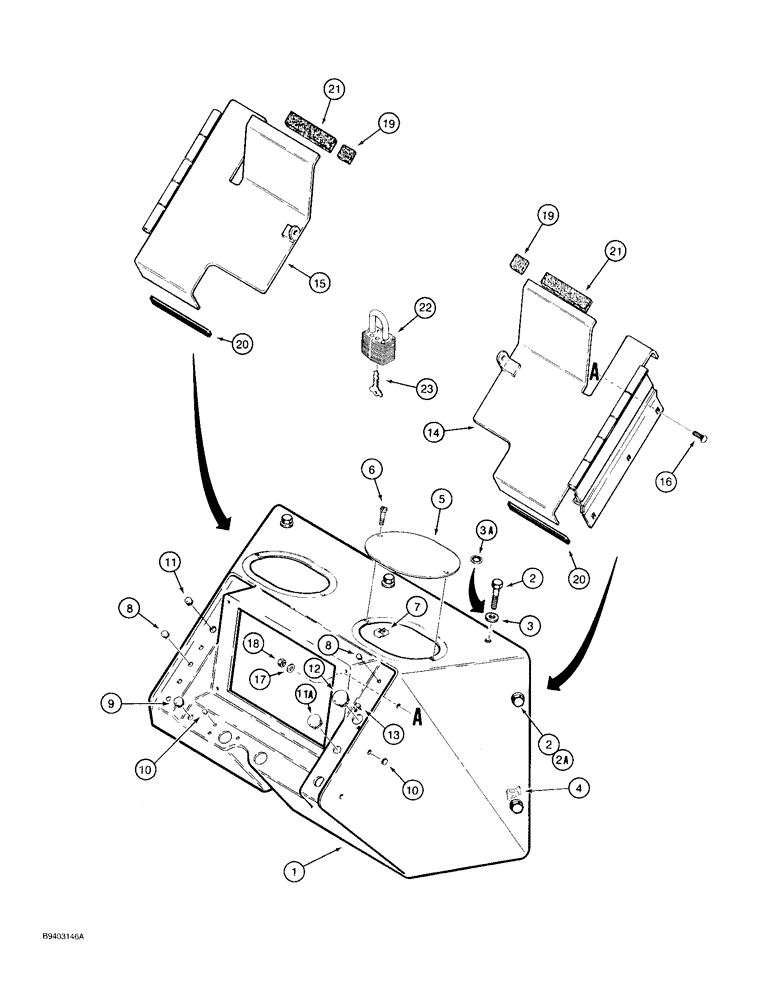

Запчасти Case 480F LL (4-16) - INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS

1

D139221

PANEL

- instrument, tractor, replaces D129606 panel

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3-7шт.

2a

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

7шт.

3a

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch, Used with defroster fan mounting plate, see Figure 9-138

1шт.

4

131-641

NUT

- U-type, 5/16 inch NC

4шт.

5

D124884

COVER

- access hole

2шт.

6

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

4шт.

7

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

- J-type, No. 10 NC

4шт.

8

353-402

PLUG,Dome, .375" hole, Nylon

If used Dome, .375" hole, Nylon

4шт.

9

353-404

PLUG,Dome, .500" hole, Nylon

If used Dome, .500" hole, Nylon

2шт.

10

353-401

PLUG,Dome, .312" hole, Nylon

- button, 5/16 inch, if used

9шт.

11

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8 inch, if used

1шт.

11a

353-408

PLUG,Dome, .750" hole, Nylon

- button, 3/4 inch, if used

1шт.

12

353-411

PLUG,Dome, 1.000" hole, Nylon

If used Dome, 1.000" hole, Nylon

1шт.

13

353-421

PLUG,Dome, .187" hole, Nylon

If used Dome, .187" hole, Nylon

2шт.

14

D80782

COVER

- anti-vandalism, right-hand, if used

1шт.

15

D80781

COVER

- anti-vandalism, left-hand, if used

1шт.

16

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - carriage, 1/4 NC x 3/4 inch

6шт.

17

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

6шт.

18

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

19

D95582

BAND

PAD - cushion, replaces D83236

2шт.

20

D83237

MOLDING

TRIM - edge, 4-5/16 inch long, cut from A165860, see below

2шт.

21

D66072

SEALING STRIP

- cushion

2шт.

22

D93753

PADLOCK

- Includes: Ref. 23, keys

1шт.

23

R29555

KEY

- for Master padlock only

2шт.

23

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

A165860

TRIM

- edge, 27-3/8 inch long

1шт.
