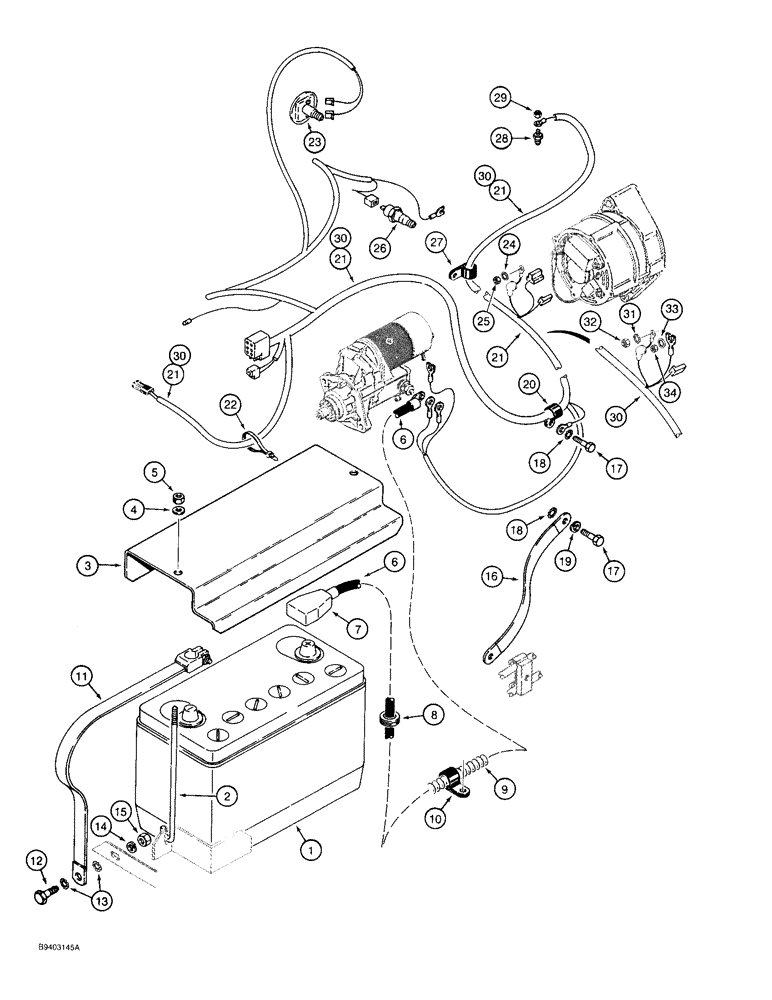

Запчасти Case 480F LL (4-12) - BATTERY AND ENGINE ELECTRICAL CIRCUIT, 480F LL MODELS ONLY (04) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

BATTERY, DRY - 12 volt, service replacement, battery mounts to floor plate, see Figure 9-106 for floor plate

1шт.

2

D49723

BOLT

- battery hold down

2шт.

3

D133308

COVER

- battery

1шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

5

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

6

D134162

CABLE

- battery, positive, Includes: Ref. 7

1шт.

7

383619R1

COVER

- cable terminal, replaces A27072

1шт.

8

D73137

GROMMET

- floor plate

1шт.

9

D99461

LOOM

SLEEVE - rubber, positive cable

1шт.

10

R21385

CLAMP

- battery cable

1шт.

11

D83485

CABLE,300mm L

STRAP - negative ground, 12 inch (300 mm) long

1шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

13

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

16

D127018

STRAP

CABLE - starter to frame, ground

1шт.

17

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12-1.75 x 25 mm

2шт.

18

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

20

T42284

CLAMP

- harness mounting

1шт.

21

D140518

HARNESS

- engine, used with A186125 alternator

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

23

REF

INSTRUCTION

SENDER - air cleaner restriction indicator, see Figure 2-06 for air cleaner and connecting parts

1шт.

24

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch, used with D140518 harness

1шт.

25

825-1406

NUT,M6, Cl 8

Used with D140518 harness M6, Cl 8

1шт.

26

A162297

SWITCH

SENDER - oil pressure gauge

1шт.

27

49768

CLIP

- harness, uses existing oil filter mounting bolts

1шт.

28

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - engine water temperature

1шт.

29

193-1000

NUT,Keps, w/LW,#10-32

- hex, with lock washer, No. 10 NF

1шт.

30

D148416

HARNESS

- engine, used with A187873 alternator

1шт.

31

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16"), Used with D148416 harness Int Tooth, #10

1шт.

32

825-1405

NUT,M5, Cl 8

Used with D148416 harness M5, Cl 8

1шт.

33

493-21033

LOCK WASHER,Int Tooth, 5/16"

WASHER - external tooth lock, 5/16 inch, used with D148416 harness

1шт.

34

825-1408

NUT,M8, Cl 8

Used with D148416 harness M8, Cl 8

1шт.
