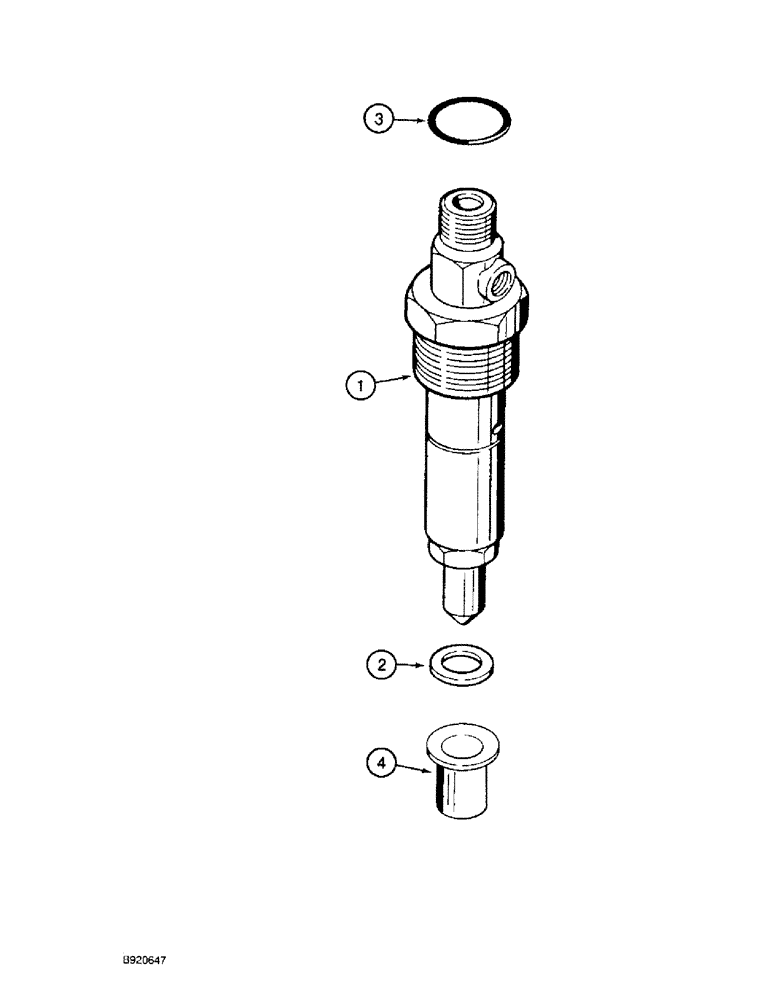

Запчасти Case 480F LL (3-16) - FUEL INJECTION NOZZLE - 7 MM TIP, 4-390 ENGINE (03) - FUEL SYSTEM

1

J919331

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection, new, Includes: Ref. 2

4шт.

1

JR919331

REMAN-FUEL INJECTOR

Remanufactured injection nozzle

4шт.

1

JC919331

CORE-FUEL INJECTOR

Return Part Number injection pump

4шт.

2

J906659

SEAL

SEAL - injector tip, replaces J920174 seal

1шт.

Whenever a nozzle is removed from the cylinder head, P/N J906659 seal must be replaced before nozzle is installed in cylinder head.

1шт.

3

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING - sealing, Serial Range: body-nut

4шт.

4

J919358

ADAPTER

SLEEVE - injector, adapts 7 mm nozzle to 9 mm hole, if used

4шт.
