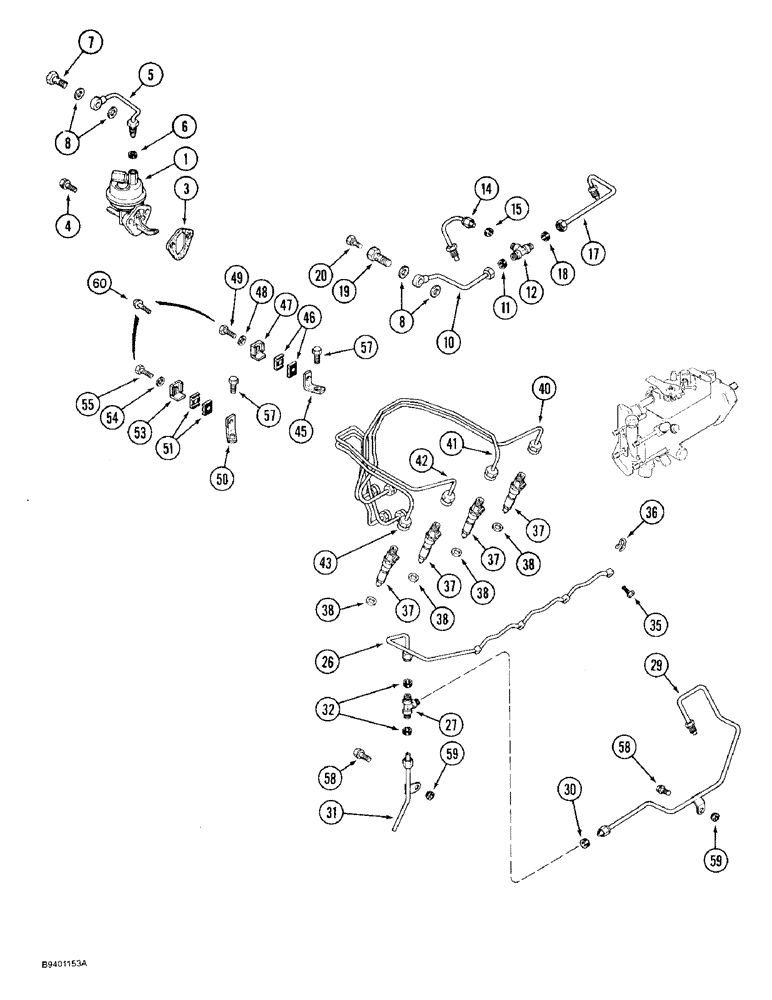

Запчасти Case 480F LL (3-08) - FUEL INJECTION SYSTEM, 4-390 ENGINE (03) - FUEL SYSTEM

1

J904374

PUMP

ASSEMBLY - lift, fuel

1шт.

2

221-841

PLUG

- fuel inlet

1шт.

3

J914304

GASKET

- fuel lift pump

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange head, 8-1.25 x 20 mm, Replaces J900630 bolt

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

TUBE ASSEMBLY - fuel, lift pump to filter, Includes: Ref. 6

1шт.

6

222-101

SLEEVE,3/16" Tube

- for 3/16 inch tube

1шт.

7

J903035

BANJO BOLT

BOLT - banjo hex, 12-1.5 x 24 mm

1шт.

8

J918191

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm, replaces J903037 washer

4шт.

10

J905364

FUEL TUBE

TUBE ASSEMBLY - fuel supply, filter to tee, Includes: Ref. 11

1шт.

11

222-103

SLEEVE,5/16" Tube

- tube, 5/16 inch

1шт.

12

J905353

TEE

- 5/16 tube OD, replaces 222-123, includes nut

1шт.

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - hex, 1/2-24 inch thread, remove and discard hex nuts before assembly

3шт.

14

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

TUBE ASSEMBLY - fuel supply, tee to rear of injection pump, Includes: Ref. 15

1шт.

15

222-103

SLEEVE,5/16" Tube

- tube, 5/16 inch

1шт.

17

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

TUBE ASSEMBLY - fuel supply, tee to front of injection pump, Includes: Ref. 18

1шт.

18

222-103

SLEEVE,5/16" Tube

- tube, 5/16 inch

1шт.

J905860

BANJO BOLT

BOLT - banjo hex, special, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex special

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW - hex special, vent

1шт.

26

J909695

FUEL TUBE

MANIFOLD ASSEMBLY - fuel return

1шт.

27

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing, Union, Includes nut

1шт.

222-661

TUBE NUT,3/8"-24, 45 Degree Fl, Comp

Hex, Remove and discard hex nuts before assembly 3/8"-24, 45º Fl, Comp

3шт.

29

J925882

FUEL TUBE,4.76 mm OD x 662.1 mm L

TUBE ASSEMBLY - fuel return, tee to pump, replaces J905703 tube assembly, Includes: Ref. 30

1шт.

30

222-103

SLEEVE,5/16" Tube

- tube, 5/16 inch

1шт.

31

J905692

FUEL TUBE

TUBE ASSEMBLY - fuel return, tee to fuel tank, Includes: Ref. 32

1шт.

32

222-101

SLEEVE,3/16" Tube

- for 3/16 inch tube

2шт.

35

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

4шт.

36

J903380

SEAL

- connector

4шт.

37

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, parts list Figures 3-14 and 3-16

4шт.

38

REF

INSTRUCTION

SEAL - injector, see Figures 3-14 and 3-16

4шт.

40

J903522

FUEL TUBE,2 mm ID x 6.4 mm OD x 643.1 mm L

TUBE ASSEMBLY - fuel injector, No. 1 cylinder

1шт.

41

J903523

FUEL TUBE,2 mm ID x 6.4 mm OD x 645.3 mm L

TUBE ASSEMBLY - fuel injector, No. 2 cylinder

1шт.

42

J903524

FUEL TUBE

TUBE ASSEMBLY - fuel injector, No. 3 cylinder

1шт.

43

J903525

FUEL TUBE

TUBE ASSEMBLY - fuel injector, No. 4 cylinder

1шт.

A77484

SUPPORT ASSY.

BRACKET ASSEMBLY - injection supply tube No. 1 and 2, no longer available, order individual components separately, Includes: Ref. 45 - 49

1шт.

45

J919294

SUPPORT

BRACKET - fuel tube

1шт.

Fuel tube brackets, Ref. 45 and 50, bolt to intake cover, see Figure 2-20, Ref. 4.

1шт.

46

J917746

CLAMP

ISOLATOR - fuel tube

2шт.

47

CURJ904711

CLAMP

PLATE - clamp, fuel tube

1шт.

48

J903723

WASHER

- flat, 6 mm, if used

1шт.

49

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , If used Hex Hd, M5 x .8 x 20, w/LW

1шт.

A77485

SUPPORT ASSY.

BRACKET ASSEMBLY - injection supply tube No. 3 and 4, no longer available, order individual components separately, Includes: Ref. 50 - 55

1шт.

50

J919292

SUPPORT

BRACKET - fuel tube

1шт.

Fuel tube brackets, Ref. 45 and 50, bolt to intake cover, see Figure 2-20, Ref. 4.

1шт.

51

J917746

CLAMP

ISOLATOR - fuel tube

2шт.

53

J904711

SUPPORT

PLATE - clamp, fuel tube

1шт.

54

J903723

WASHER

- flat, 6 mm, if used

1шт.

55

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , If used Hex Hd, M5 x .8 x 20, w/LW

1шт.

57

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Replaces J904341 bolt Hex Flg Hd, M8 x 1.25 x 25

2шт.

58

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8-1.25 x 16 mm, Replaces J900629 bolt

2шт.

59

J900267

SEAL

- cover bolt

2шт.

60

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , If used Hex Hd, M5 x .8 x 20, w/LW

2шт.
